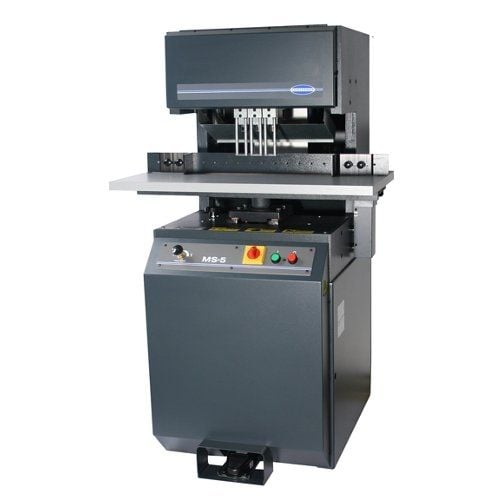

Challenge MS-5 Paper Drill w/ 3 Drill Heads
15885.00 NewCondition InStock

Challenge MS-5 Paper Drill w/ 3 Drill Heads

Part #: CH-MS5
Brand: Challenge
  • Number of Drill Heads: 2 to 5
  • Drill Sizes Available (2" capacity): 1/8" to 1/2" / 3 to 13 mm
  • Drill Sizes Available (2-1/2" capacity): 1/4" to 1/2" / 6 to 13 mm
  • Center to Center Distance Maximum: 15" / 38 cm
Please Note: Ships in 5 Weeks
  • 3 Year Manufacturer's Warranty
  • Price Match Guarantee
  • Oversize / Truck shipping

$15,885.00

Buy Now, Pay Later with financing options from $1,469/mo.Learn More >

This Item Ships Via Truck
SWIPE FOR MORE IMAGES
  • 0
  • 1
video
Product NameItem NumberPriceQty
Challenge MS-5 "Narrow" Head Paper Drill w/ 3 Drill Heads04CHLNGMS5N
$17,025.00
Standard Drill Head for Challenge MS-5 Paper Drill04CHLNGMS5H
$795.00
Narrow Drill Heads for MS-5 Narrow Paper Drill04CHLNGMS5NH
$1,175.00

Product Description

The Challenge MS-5 Multi-Spindle Paper Drill has a maximum of five easily adjustable heads and can handle multiple various hole patterns in one single stroke. The MS-5 Paper Drill has a solid cast-iron construction and a powerful 1.5 hourse power motor that drives the drilling heads. Its easily accessible control panel and powerful hydraulic operation are designed to reduce operator fatigue and increase job production. With Challenge MS-5 Multi-Spindle Paper Drill, you have assurance that you made the right decision.
This product is currently only available to our customers in Oregon, Washington, and Idaho.

Product Details

  • Side guide adjustment.
  • Backgauge adjustment.
  • Easy drill length adjustment.
  • 2"/ 5.1 cm hollow drill bits available in 13 sizes.
  • 2-1/2"/ 6.4 cm hollow drill bits available in 4 sizes.
  • Hollow drill bits also available with teflon coating.
  • Optional narrow heads available, (Necessary when drilling most medical forms).
  • Cast iron and steel construction.
  • Three drill heads and drilling blocks standard (Two & four head options for European applications).
  • Two backgauge filler blocks.
  • Manual drill sharpener.
  • Chip disposal bag.
  • Hydraulic power, foot pedal activated.
  • Automatic table return.
  • Up to 5 holes in a single stroke.
  • Set-up changes are quick & simple.

Product Reviews

Write Your Own Review
You're reviewing:Challenge MS-5 Paper Drill w/ 3 Drill Heads
Your Rating

Item Specifications

  • Number of Drill Heads: 2 to 5
  • Drill Sizes Available (2" capacity): 1/8" to 1/2" / 3 to 13 mm
  • Drill Sizes Available (2-1/2" capacity): 1/4" to 1/2" / 6 to 13 mm
  • Center to Center Distance Maximum: 15" / 38 cm
  • Center to Center Minimum (standard): 1-7/8" / 48 mm
  • Center to Center Minimum (optional narrow heads): 1-3/8 / 35 mm
  • Maximum Drilling Capacity: 2-1/2" / 63 mm
  • Strokes per Minute (adjustable): Up to 18
  • Backgauge Adjustment: 0 to 5" / 0 to 13 cm
  • Vertical Adjustment of Individual Heads: 1/4" / 6 mm
  • Table Size: 17-3/4" x 34" / 45 x 87 cm
  • Table Height: 37" / 94 cm
  • Overall Height: 56" / 142 cm
  • Floor Space Needed: 36" x 36" / 92 x 92 cm
  • Compatible Supplies and Accessories: Standard Drill Head
  • Electrical:
    • Standard
      • 1 Phase, 60 Hz, AC. Pump: 1/2 HP. Spindle Motor: 1-1/2 HP.
      • 208/230 Volts, 18 Amps (service size 30 Amps)
    • Optional
      • 3 Phase, 50 Hz, AC. Pump: 1/2 HP. Spindle Motor: 1-1/2 HP.
      • 208/230 Volts, 12 Amps (service size 20 Amps)
  • Manufacturer's Warranty: 3 Years Manufacturer Manufacturer's Warranty

Demonstration Video

Challenge MS-5 Multi-Spindle Paper Drill Demo

Transcript: Challenge MS-5 Paper Drill


The Challenge Machinery Company
The MS-5 multiple-spindle paper drill
Another quality product for Challenge Machinery
The MS-5 draws its strength from solid cast-iron construction
A powerful 1-1/2 h.p. motor drive the drilling heads
Integrated head positioning scale
Positioning or adding drilling heads takes mere seconds
Intuitive control layout
Table speed adjustment for difficult materials
Overall table height adjustment
Fine adjustment of individual drill depth
Integrated chip chute guides scrap to rear-mounted waste bin
With automatic table retur ...
Read More
Challenge MS-5 Paper Drill
The Challenge Machinery Company The MS-5 multiple-spindle paper drill Another quality product for Challenge Machinery The MS-5 draws its strength from solid cast-iron construction A powerful 1-1/2 h.p. motor drive the drilling heads Integrated head positioning scale Positioning or adding drilling heads takes mere seconds Intuitive control layout Table speed adjustment for difficult materials Overall table height adjustment Fine adjustment of individual drill depth Integrated chip chute guides scrap to rear-mounted waste bin With automatic table return, the MS-5 is designed for high-production drilling Rock-solid construction and reliability Up to five drilling heads with 2-1/2” (63 mm) drilling capacity per stroke Use of our narrow drilling heads allows for medical forms drilling With the MS-5, you will not compromise You have assurance you made the right decision
