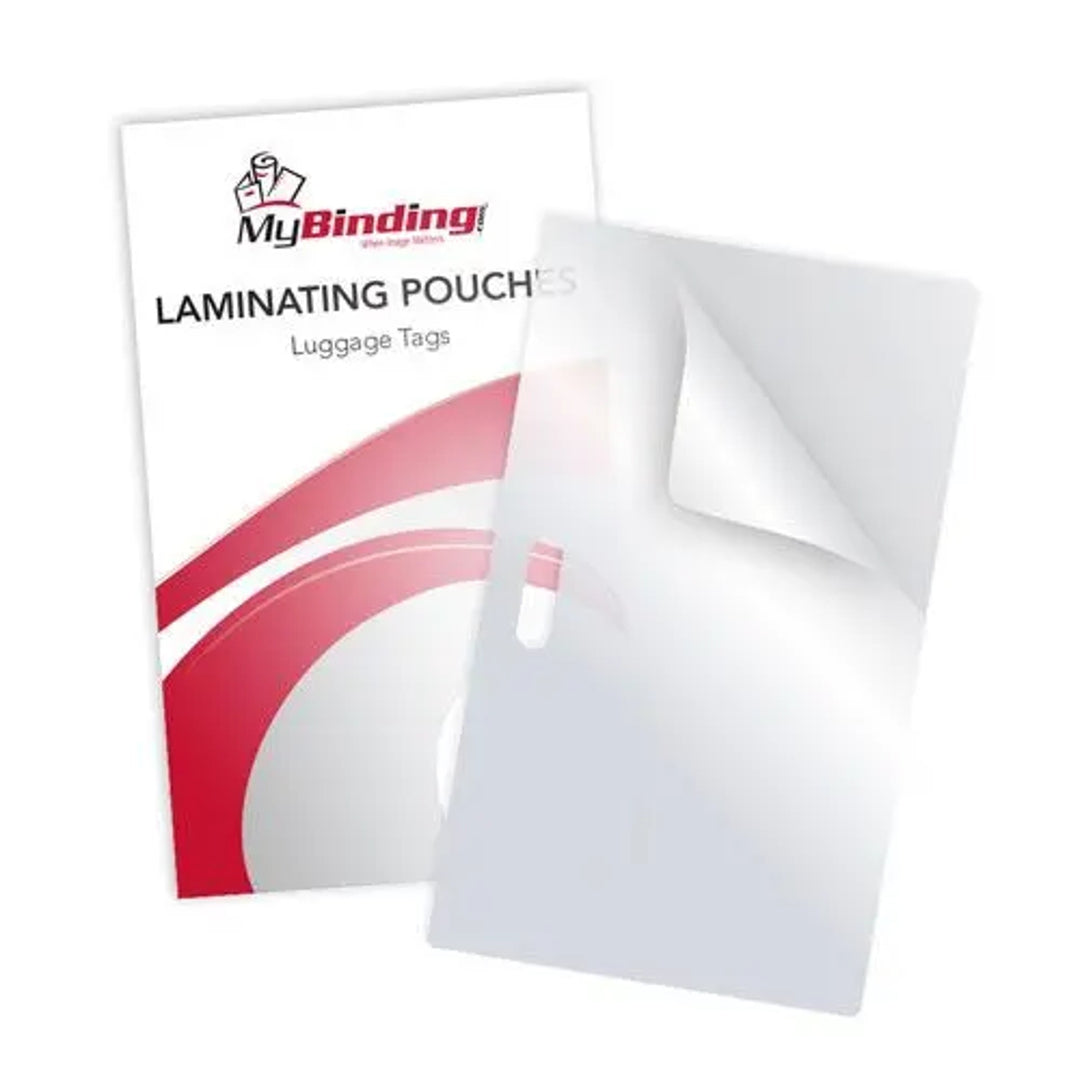

Luggage Tag Laminating Pouches With Slots

The insert should be smaller than the pouch so the laminate can seal completely around every edge. Do not trim the printed card to the exact outer dimensions of the pouch, because that removes the clear border needed for a dependable bond. Pay particular attention to the area around the slot, where frequent pulling can place extra stress on the seal. Keep names, phone numbers, QR codes, and other important details away from the outer edge and attachment opening. A consistent border also makes the finished tag look neater and reduces the chance of moisture reaching the paper. Before producing a full run, laminate one sample, allow it to cool, attach the intended loop or strap, and confirm that the insert remains centered without weakening the sealed edge.

Thickness should reflect how often the tag will be handled and how much flexibility the finished piece needs. A 5 mil pouch gives everyday protection while remaining relatively flexible. A 7 mil pouch adds more body for repeated travel, event use, or shared equipment. A 10 mil pouch produces a firmer tag that better resists bending, though the laminator must be able to process the greater thickness. Remember that the stated mil measurement normally applies to each film side, so the finished piece is thicker once both layers and the insert are combined. The options within laminating pouches by thickness make it easier to align durability with machine capacity rather than selecting the heaviest material automatically.

Confirm the width and shape of the loop, strap, ring, or clip that will pass through the slot. The hardware must fit freely without cutting into the laminate or pulling sharply against one corner. Consider whether the tag will stay attached permanently or be moved between bags, cases, tools, or event materials. Repeated removal usually calls for a more durable pouch and attachment method. Slot direction also matters because some loops feed more naturally through a horizontal opening, while narrow clips may suit a vertical opening. Measure existing hardware instead of relying on a visual estimate, especially when ordering supplies for a large run. A simple test with the exact fastener can prevent tags that hang sideways, rotate too easily, or place too much force on the sealed border.

They normally use a thermal pouch laminator that accepts the selected pouch size and thickness. The slot itself does not require a special machine, but small pouches can feed unevenly if they are inserted at an angle. Feed the sealed edge first unless the equipment instructions state otherwise, and use a carrier when the machine or pouch supplier recommends one. Temperature and speed must suit the film thickness so the adhesive activates fully without producing waves, cloudiness, or excess curl. Allow each tag to cool flat before testing the slot or attaching hardware. For regular tag production, pouch laminators provide machine options suited to heat activated pouch film, but the stated maximum mil capacity should always be confirmed before ordering supplies.
