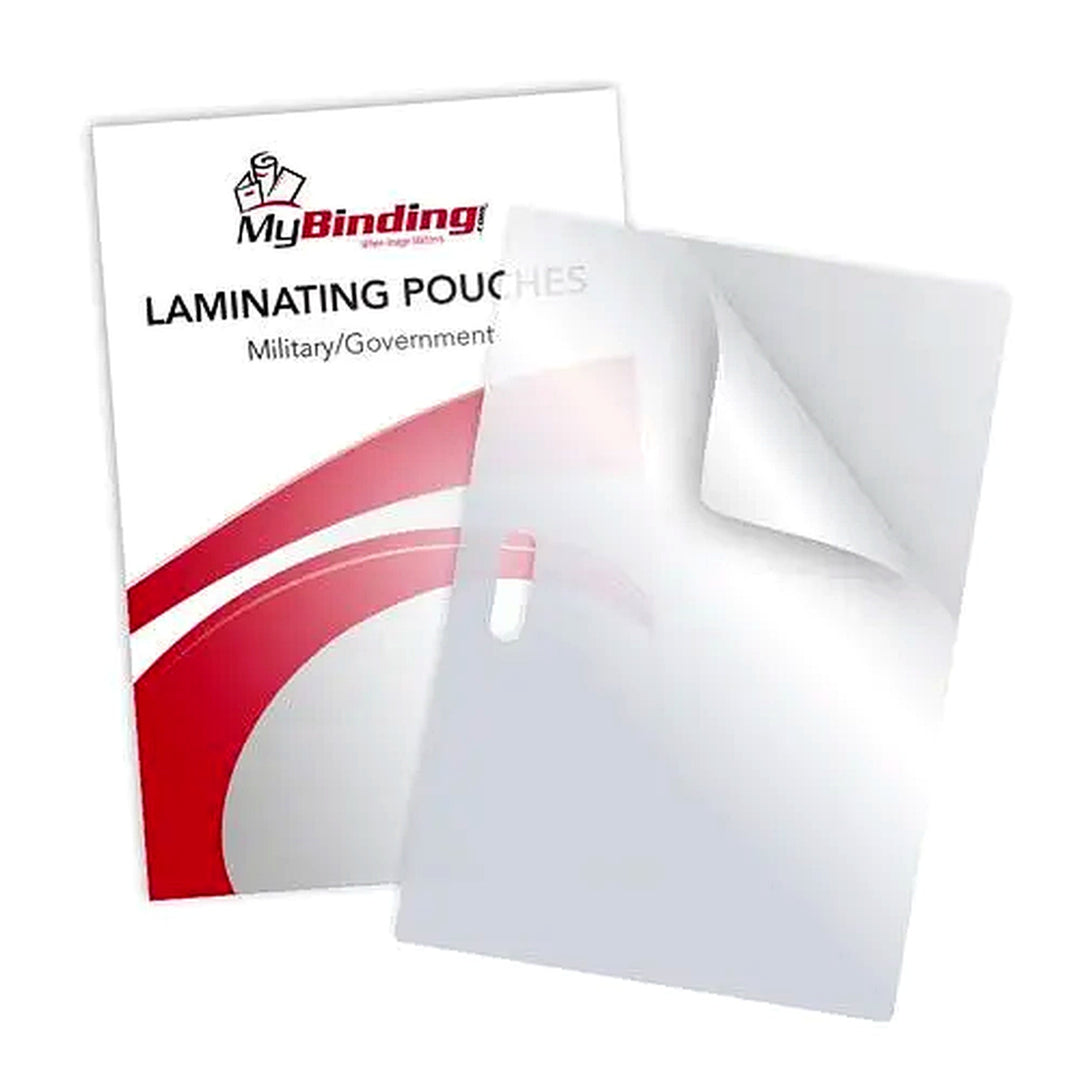

Military Government Laminating Pouches With Slots

Five-mil pouches provide flexibility and may suit credentials worn for limited periods or stored in another holder. Seven-mil pouches offer additional stiffness for repeated handling, while 10-mil pouches create a firmer card for heavier use. The laminator must support the selected total thickness, and the slot must fit the chosen attachment hardware. Very rigid cards can place more leverage on the slot when pulled, so thickness should be matched to the wearing method rather than selected only for maximum stiffness. Consider how often the card will be worn, whether it will bend against clothing, and whether users may pull on the badge while attached to a lanyard or reel.

They normally use a compatible thermal pouch laminator rather than a machine designed only for slots. The laminator still needs to support the pouch’s width and thickness and must feed small items consistently. Feed the sealed edge first unless the pouch instructions specify otherwise, keeping the slot area flat and properly aligned. A carrier may be required for small pouches in some machines. The guide to laminating pouch carriers includes sizes for protecting the rollers and supporting small materials when carrier use is recommended. Do not place loose attachment hardware through the slot until the pouch has finished laminating and cooled completely.

Make sure the insert does not extend into the slot area or reduce the film border around it. The pouch layers need enough direct contact to create a reliable seal. Centre the card carefully, remove dust, and process it at the correct temperature. Do not pull on the slot while the laminate is still warm because the adhesive has not fully set. Once cooled, use attachment hardware that fits easily without cutting into the slot edges. A clip or ring that is too wide can place stress on the film. For heavily used credentials, inspect the slot regularly and replace the badge if cracking, stretching, or separation begins around the attachment point.

A slotted pouch allows direct attachment to a lanyard or clip, creating a simple finished credential with no separate holder. A badge holder makes it easier to remove or replace the printed card and can add another layer of protection. Slotted laminate may suit permanent or long-term cards, while holders can be practical for temporary passes, frequently updated credentials, or programmes that reuse attachment hardware. The available badge holders include several sizes, orientations, and attachment styles. Consider replacement frequency, expected wear, security procedures, and whether the card must be removed without cutting or discarding the laminated piece. # Military Government Sticky Back Laminating Pouches
