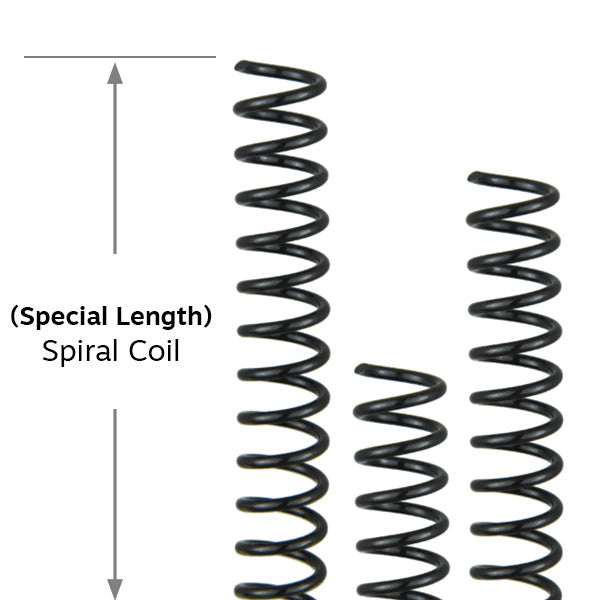

Special Length Spiral Coil

Confirm the punch pitch before ordering any coil length. Coil pitch controls the spacing between holes and coil turns. A 4:1 punch needs 4:1 coil, and a 5:1 punch needs 5:1 coil. The two are not interchangeable. A 4:1 pattern is common for many office coil machines, while 5:1 may be used for certain larger-diameter or specialized setups. Length and pitch are separate decisions, so a coil can be the correct length but still incompatible if the pitch is wrong. If the machine pitch is unknown, punch one test sheet and count or measure the holes before ordering supplies or finished samples.

Measure the binding edge, not the finished document height alone. The coil should cover the punched edge with enough extra length for insertion and crimping, but not so much that operators waste time trimming long tails. Smaller booklets, landscape work, legal-size sheets, and oversized formats may each need different lengths. If the job is repeated often, create a sample and record the coil length, pitch, diameter, and crimping method. For machines and insertion support, review coil binding machines so the punch length, inserter, and crimping tools all fit the format being produced. Write those measurements down for future repeat orders.

Choose coil diameter by the document’s compressed thickness, just as you would with a standard coil. Length controls how much of the binding edge is covered; diameter controls how much thickness the coil can hold. A coil that is too small makes the document tight and hard to turn. A coil that is too large can look loose and allow the sheets to shift. Covers, laminated sheets, tabs, and heavier paper can all increase the needed diameter. For repeated custom work, test the exact paper and covers before buying in bulk. If the job needs a nonstandard color, length, or pitch combination, custom spiral coil may be a better route.

Trimming standard coils can work for a one-time job, but it becomes inefficient when the same custom size is produced often. Long coil tails slow insertion, create extra waste, and require more handling before crimping. A coil that is too short creates the opposite problem because there may not be enough material for secure finishing at both ends. Special length coils are usually better when the document format is repeated, such as half-size manuals, landscape guides, legal-size books, or calendar work. Record the binding edge, pitch, diameter, and finished length after the first good sample so future orders can match the job without trial and error.
