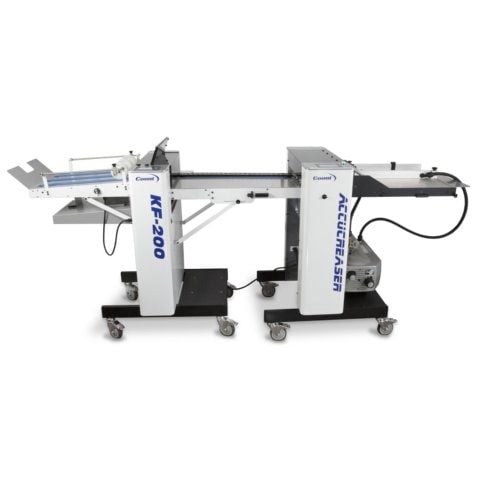

Count AccuCreaser Air Modular Digital Creasing Machine w/ KF200 Knife Folder

Skip to the beginning of the images gallery

SWIPE FOR MORE IMAGES

Product Name	Item Number	Price
Count 5 TPI (18 tooth) Perf Wheel	CSTANDBLADE18	$43.50
Count Standard 9-1 33 Teeth Perf Blade	CSTANDBLADE33	$43.50
Count Standard 12-1 45 Teeth Perf Blade	CSTANDBLADE45	$43.50
Count Micro 185 Teeth Perf Blade (50-1)	CMICROBLADE185	$79.31
Count 26 TPI (96 tooth) Micro Perf Wheel	CMICROBLADE96	$79.31
Score Wheel for Count Equipment	05CMWASAPP0131	$32.54
Count Standard Scoring Assembly	04CMSCOREASS	$233.17
Count 9 TPI Narrow Margin Perf Assembly	WRASFCM1003	$333.09
Complete Micro Perf Assembly	WRASAPP0160	$279.81

Product Description

The Count's AccuCreaser Air is a Touch Screen Air/Vacuum Feed Automatic Creasing, Perforating, and Scoring Machine. Has the Ability to Crease Digitally Printed Media, Micro-Perf, Rotary Score, and Crease up to 12 times per sheet. Also has 11 Automatic Setup Settings with no input needed by the operator. Automated Distance Recognition allows for auto setups for Half, Tri-fold, Z-fold, Letter fold, Roll fold, Gate fold, Double Gate and Double Parallel crease jobs. Contact MyBinding today to learn how Count's AccuCreaser Air Modular Digital Creasing Machine can improve production in your print finishing operation today.

Please Note: This specific machine will take up to 2 weeks to ship. If you're in need of a quicker delivery time, please call us toll free at 1-800-944-4573 or email us at [email protected].

Product Details

Count AccuCreaser Details:
- Provides modes for creasing, perforating or feeding.
- Bottom vacuum feed with sheet spacing control.
- CAM actuated compression creasing ensures maximum crease accuracy.
- Automated distance recognition allows auto setups for your most common creases and corresponding folds, including perfect bind.
- Perform up to 4 perfs at a time (including micro perf).
- Includes a sheet counter (for both batch and total sheet count).
- Two-sided die creasing rod accommodates for heavier stock - simply remove and flip over to change from narrow to wide crease.
- User-friendly touch screen for easy set up and control of the machine.
- An ideal companion to the COUNT KF-200 for inline folding.
- Clear top lid provides visibility and easy internal access.
KF200 Folding Knife Folder Details:
- An ideal companion to COUNT creasers (FC114, FC114 A, AccuCreaser or EZCreaser).
- Compatible with almost any creaser - built-in micro-adjust feature compensates for variances in fold settings of different creasers.
- User-friendly touch screen for easy set up and control of the machine.
- Keep paper feed aligned at all time with a simple adjustment control.
- Clear top lid provides visibility and access to paper jams.
- Innovative sensor at paper exit moves paper out of the way automatically, keeping exit clear.
- Comes with 6 pre-set folds; plus a custom option to accommodate almost any fold.
- Components are strong and durable, yet up to 43% lighter than competitive in-line folders, so it's easier to handle and maneuver into place.
- Made in: U.S.A.
180 Day Manufacturer's Warranty.

Item Specifications

Count AccuCreaser Specifications:
- Model: AccuCreaser Air
- Model No.: ACTREG
- Paper Feed: Vacuum
- Weight: 300 lbs (136 kg)
- Max Compression Crease (sheets per hour): 5,500
- Max Rotary Perf/Score Speed (sheets per hour): 12,000
- Paper Weight Range (gsm): 60 - 350
- Dimensions: 56.0 L x 30.0 W x 44.0 H in (142.3 x 76.2 x 111.8 cm)
- Max Sheet Size: 24.0 L x 18.0 W in (61.0 x 45.7 cm)
- Min Sheet Size: 6.0 L x 4.5 W in (15.2 x 11.4 cm)
- Electrical: 115 V, 60 Hz, 20 A or 230 V, 50 Hz, 20 A
- Made in: U.S.A.
KF200 Folding Knife Folder Specifications:
- Paper Feed: Friction
- Max Speed (sheets per hour): 4,600
- Paper Weight Range (gsm): 120 - 350
- Dimensions: 47.0 H x 28.0 W x 67.0 L in (119.4 x 71.1 x 170.2 cm)
- Max Sheet Size: 14.5" x 33" (35.5 x 84.0 cm)
- Min Sheet Size: 4.75" x 5.5" (12.1 x 14.0 cm)
- Electrical: 110/220 V, 50/60 Hz
