Count AccuCreaser Air Modular Digital Creasing Machine
15020.20 NewCondition InStock

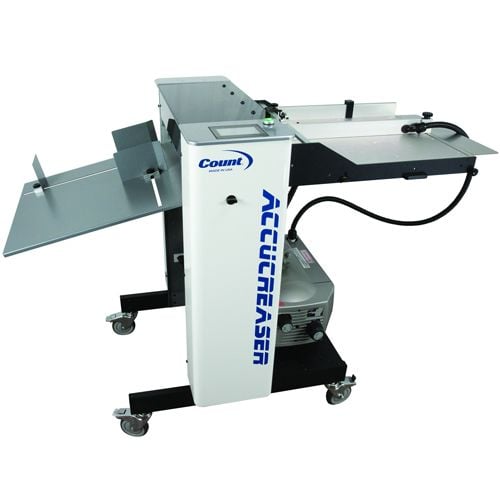

Count AccuCreaser Air Modular Digital Creasing Machine

Part #: CATMDCM
Brand: Count
  • Paper Feed: Vacuum
  • Max Compression Crease (sheets per hour): 5,500
  • Max Rotary Perf/Score Speed (sheets per hour): 12,000
  • Paper Weight Range (gsm): 60 - 350
Please Note: Ships in 4 Weeks
  • 180 Day Manufacturer's Warranty
  • Price Match Guarantee
  • Oversize / Truck shipping

$15,020.20

Buy Now, Pay Later
Starting at $1,389/month
Learn More >

This Item Ships Via Truck

SWIPE FOR MORE IMAGES
  • 0
  • 1
video
Product Name Item Number Price Qty
Count Motorized Paper Delivery Machine CMOTORIZED
$3,723.78
Score Wheel for Count Equipment 05CMWASAPP0131
$32.54
Count Standard Scoring Assembly 04CMSCOREASS
$233.17
Count Micro 185 Teeth Perf Blade (50-1) CMICROBLADE185
$79.31
Count 26 TPI (96 tooth) Micro Perf Wheel CMICROBLADE96
$79.31
Count Standard 12-1 45 Teeth Perf Blade CSTANDBLADE45
$43.50
Count Standard 9-1 33 Teeth Perf Blade CSTANDBLADE33
$43.50
Count 5 TPI (18 tooth) Perf Wheel CSTANDBLADE18
$43.50
Count 9 TPI Narrow Margin Perf Assembly WRASFCM1003
$333.09
Count 9 TPI (33 tooth) Perf Assembly 04CMPERFASS
$271.36
Complete Micro Perf Assembly WRASAPP0160
$279.81
Lower Auto Pressure Perf Hub Assembly (Back up hub for perf assembly) 05CMWASAPP0133
$69.70

Product Description

The Count's AccuCreaser Air is a Touch Screen Air/Vacuum Feed Automatic Creasing, Perforating, and Scoring Machine. Has the Ability to Crease Digitally Printed Media, Micro-Perf, Rotary Score, and Crease up to 12 times per sheet. Also has 11 Automatic Setup Settings with no input needed by the operator. Automated Distance Recognition allows for auto setups for Half, Tri-fold, Z-fold, Letter fold, Roll fold, Gate fold, Double Gate and Double Parallel crease jobs. Contact MyBinding today to learn how Count's AccuCreaser Air Modular Digital Creasing Machine can improve production in your print finishing operation today.
Please Note: This specific machine will take up to 2 weeks to ship. If you're in need of a quicker delivery time, please call us toll free at 1-800-944-4573 or email us at [email protected].

Product Details

  • Provides modes for creasing, perforating or feeding.
  • Bottom vacuum feed with sheet spacing control.
  • CAM actuated compression creasing ensures maximum crease accuracy.
  • Automated distance recognition allows auto setups for your most common creases and corresponding folds, including perfect bind.
  • Perform up to 4 perfs at a time (including micro perf).
  • Includes a sheet counter (for both batch and total sheet count).
  • Two-sided die creasing rod accommodates for heavier stock - simply remove and flip over to change from narrow to wide crease.
  • User-friendly touch screen for easy set up and control of the machine.
  • An ideal companion to the COUNT KF-200 for inline folding.
  • Clear top lid provides visibility and easy internal access.
  • 180 Day Manufacturer's Warranty.

Item Specifications

  • Model: AccuCreaser Air
  • Model No.: ACTREG
  • Paper Feed: Vacuum
  • Weight: 300 lbs (136 kg)
  • Max Compression Crease (sheets per hour): 5,500
  • Max Rotary Perf/Score Speed (sheets per hour): 12,000
  • Paper Weight Range (gsm): 60 - 350
  • Dimensions: 56.0 L x 30.0 W x 44.0 H in (142.3 x 76.2 x 111.8 cm)
  • Max Sheet Size: 24.0 L x 18.0 W in (61.0 x 45.7 cm)
  • Min Sheet Size: 6.0 L x 4.5 W in (15.2 x 11.4 cm)
  • Electrical: 115 V, 60 Hz, 20 A or 230 V, 50 Hz, 20 A
  • Made in: U.S.A.

Demonstration Video

Transcript: Count Accucreaser into CountCoat UV Coater. Crease and UV Coat in one pass. remove deliver tray on the Count Accucreaser. Install transfer table. Remove hand feed tale from CountCoat UV Coater. Roll up the CountCoat UV Coater to the transfer table. Setup your job and hit Run. Now you are creasing and coating in one simple pass. Speed up to 1800 SPH. For more information or to request quote please call us at 800-468-6237 or email us at [email protected]
Count Accucreaser into CountCoat UV Coater. Crease and UV Coat in one pass. remove deliver tray on the Count Accucreaser. Install transfer table. Remove hand feed tale from CountCoat UV Coater. Roll up the CountCoat UV Coater to the transfer table. Setup your job and hit Run. Now you are creasing and coating in one simple pass. Speed up to 1800 SPH. For more information or to request quote please call us at 800-468-6237 or email us at [email protected]
