Duplo 660P Hydraulic Cutters
17700 NewCondition OutOfStock

Sorry, but Duplo 660P Hydraulic Cutters is no longer available to buy.

We think you might like one of these instead:

Duplo 660P Hydraulic Cutters

Part #: D-660P
Brand: Duplo
  • Cut Length: 26.50"
  • Cut Type: Stack
  • Cut Capacity: 700 Sheets
  • Paper Clamp: Yes
X
Discontinued
Qualifies for FREE Shipping!*
  • 0

Product Description

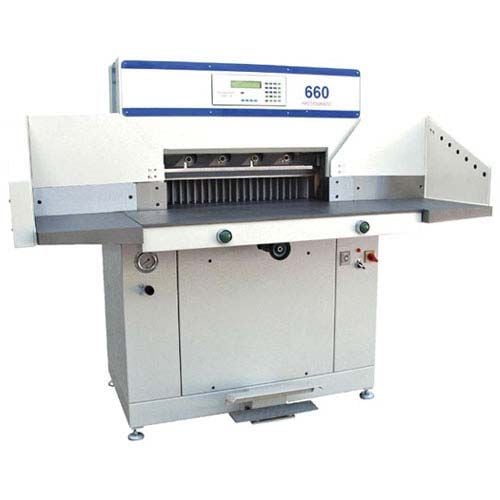

The Duplo 660P is a heavy-duty electric cutter with hydraulics and cast-iron frames, providing a powerful cutting process with minimal effort. Cutting capability width of over 26" and slicing through an amazing 4" stack. The 660P features a pressure clamp along the cutting width, ensuring an accurate and precision cut. Duplo takes safety very seriously and that's why they incorporated the safety beams that will detect and disable the cutting blades if any object gets too close. Paper cutting hasn't been any easier. The operator is guided through all the programming operations and cutting sizes with the full digital, LCD display. The simple and easy to read screen panel provides an intelligent automation that will maximizes speedy, create accurate production and all with little effort from the user. The 660P can program up to 500 amazing jobs, perfect machine for any office sizes that works with a variety of cutting demands. Let the Duplo 660P turn your nerve-racking, intense work environment into an efficient, productive and stress-free atmosphere.

Product Details

  • Color LCD touchscreen control panel allows easy operation and programming of up to 500 jobs and 18 cuts per job
  • Large working area with side table as standard
  • Hydraulic powered, rugged construction
  • Air cushion table on the 800PA enables easy handling of heavy paper stacks
  • Full light beam curtain and dual palm cut buttons assure optimum operator safety
  • False clamp plate and two HSS blades are included

Item Specifications

  • Cutting Width: 26.50"
  • Maximum Paper Pile Height: 4"
  • Minimum Cut Sizes (with false clamp): 2"
  • Maximum Length (Back Table): 26.50"
  • Minimum Clamp Pressure: 300 lbs.
  • Maximum Clamp Pressure: 2,500 lbs.
  • Typical Cutting Pressure: 1,260 kg/cm

Product Reviews

Write Your Own Review
You're reviewing:Duplo 660P Hydraulic Cutters
Your Rating

Features

  • Additional Features:
  • Programmable color touch screen LCD panel
  • Power back gauge
  • Manual back gauge line adjustment
  • Foot pedal activated, hydraulic soft clamp
  • Safety interlocked, illuminated cutting line
  • Blade stroke adjustment dial
  • Power-saving, automatic timer
  • Hydraulic knife
  • Adjustable hydraulic clamp
  • Extra blade and cutting sticks supplied
  • Side table
  • Safety light curtains 250 lbs.
  • Part Number: D-660P
