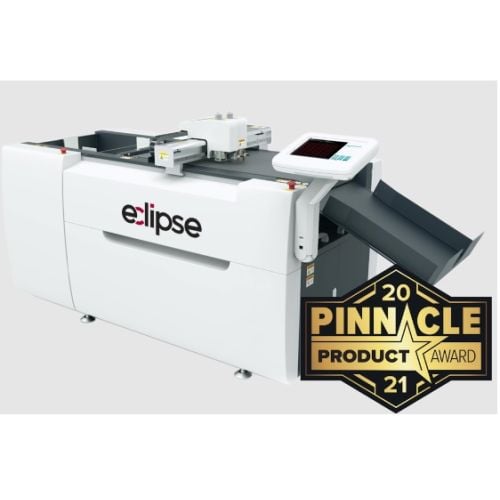

Eclipse 2029 Digital Die Cutter
34495.00 NewCondition InStock

Eclipse 2029 Digital Die Cutter

Part #: 04CWTECLIPSE2029
Brand: Cutworx
  • Up to 4 tools on a single sheet.
  • 4kw vacuum power absorption
  • Oscillating tool for up to 6mm thick materials.
  • Automatic feeding system for continuous operation.
  • Price Match Guarantee
  • Oversize / Truck shipping

$34,495.00

Buy Now, Pay Later
Starting at $3,191/month
Learn More >

This Item Ships Via Truck

  • 0
Product Name Item Number Price Qty
Eclipse 2029 Conveyor Belt 04CWT2029BELT
$986.84
0.63mm Blade Clamp for Eclipse 1523/2029 04CWTCLAMP1
$33.33
1.50mm Blade Clamp for Eclipse 1523/2029 04CWTCLAMP2
$33.33
Creasing Wheel #1 (1.0mm Folding Line) for Eclipse 1523/2029/3547 04CWTCREASE1
$277.78
Creasing Wheel #2 (2.0mm Folding Line) for Eclipse 1523/2029/3547 04CWTCREASE2
$277.78
Creasing Wheel #3 (0.8mm Folding Line) for Eclipse 1523/2029/3547 04CWTCREASE3
$277.78
Creasing Tool Holder #1 (Includes 0.8mm Creasing Wheel) for Eclipse 1523/2029/3547 04CWTCRHOLD1
$364.86
Creasing Tool Holder #2 (Includes 2.0mm Creasing Wheel) for Eclipse 1523/2029/3547 04CWTCRHOLD2
$364.86
Creasing Tool Holder #3 - (Includes 1.0mm Creasing Wheel) for Eclipse 1523/2029/3547 04CWTCRHOLD3
$364.86
Double Crease Wheel (0.6mm Folding Line) for Eclipse 1523/2029/3547 04CWTDBCRWH
$277.78
Double Edge V-Cut Tool Holder for Eclipse 1523/2029/3547 04CWTDEDGEHOLD
$347.22
Knife Holder for 0.9mm Blades for Eclipse 1523/2029/3547 04CWTKH09
$312.50
Knife Holder for 1.5mm Blades for Eclipse 1523/2029/3547 04CWTKN15
$312.50
E15-01 0.9mm Thru-Cut Blade for Eclipse 1523/2029/3547 04CWTE1501
$33.33
E15-02 1.5mm Thru-Cut Blades (5pk) for Eclipse 1523/2029/3547 04CWTE1502
$111.99
E19-1 EOT 22 deg. Blade for Eclipse 1523/2029 (Clamp 1) 04CWTE1901
$38.33
E19-2 EOT 10 deg. Blade for Eclipse 1523/2029 (Clamp 1) 04CWTE1902
$38.33
E19-3 EOT 30 deg. Blade for Eclipse 1523/2029 (Clamp 1) 04CWTE1903
$38.33
E19-7 EOT 60 deg. Blade for Eclipse 1523/2029 (Clamp 2) 04CWTE1907
$38.33
PTK Perfing Wheel Holder (Includes Perf Wheel) for Eclipse 1523/2029/3547 04CWTPTK
$364.86
E19-20 Perfing Wheel for Eclipse 1523/2029/3547 04CWTE1920
$149.25
E19-22 Perfing Wheel for Eclipse 1523/2029/3547 04CWTE1922
$149.25
E19-33 EOT 60 deg. Blade for Eclipse 1523/2029 (Clamp 1) 04CWTE1933
$38.33
E19-34 EOT 60 deg. Blade for Eclipse 1523/2029 (Clamp 1) 04CWTE1934
$38.33
PC and Monitor for Eclipse 1523/2029 04CWTPCDELL
$1,518.99
Writing Pen Holder for Eclipse 1523/2029/3547 04CWTPENHOLD
$70.31
Single Edge V-Cut Tool Holder for Eclipse 1523/2029/3547 04CWTSEDGEHOLD
$347.22

Product Description

With the Eclipse 2029 Digital Die Cutter, flatbed sheets up to 20 inches by 29 inches can be cut without the use of dies. It is a practical solution for the printing, packaging, and sign industries. It is a cost-effective method for producing short runs of adhesive sheets, business cards, invitations, labels, small packaging, tags, and other items. For die-free cutting, this machine includes an oscillating tool, drag knife, kiss-cut tool, creasing wheel, and ploting pen. It is capable of processing materials up to 6mm thick. It also has an automatic feeding system, a precise automated positioning system for continuous operation, and an integrated touchscreen pc for full operation at your fingertips.

Performance and Reliability:

No Cutting Dies

The Eclipse Plus is integrated with a oscillating tool, cutting tool, creasing wheel tool and plotting pen for die free cutting.  Process materials up to 6mm thick.

Combination Cutting and Creasing Functions

Standard cutting & creasing features include Decal Cut, Kiss Cut, Creasing, and oscillating knife cutting of dense stock.

Automatic Positioning System

The high-definition CCD camera automatically and positions materials for precise cutting.

Automatic Feeding System

Fully automatic feeding and conveyor system for continuous cutting of materials for a more efficient workflow and production. Roll Feed Option available for Roll to Sheet processing needs.

Stacker

Designed for continuous feeding of material stack up to 4.5” tall (400 pieces of 250gsm/92lb cover)

Software

Eclipse Software standard file recognition of PLT, DXF, HP/GL is compatible with Kasemake, Artios CAD, Corel, Adobe Illustrator, Box magician, etc.

QR/Barcode Management System (option)

Designed to manage reading of cutting tasks.



Productivity You Can Depend On:

INCREASE - Capacity and productivity to take on more jobs

IMPROVE - Speed and accuracy of production

CONFIDENCE - In precision and reliability of output day after day

DECREASE - Waste, downtime and labor costs

REMOVE - Production obstacles and process in finishing

Product Details

  • Up to 4 tools on a single sheet.
  • 4kw vacuum power absorption.
  • Oscillating tool for up to 6mm thick materials.
  • Automatic feeding system for continuous operation.
  • Precise automated positioning system.
  • QR/Barcode Management System

Item Specifications

  • Material: Paper, foam board, corrugated, card stock, etc.
  • Effective work area: 20 x 29 inch (530 x 750 mm)
  • Maximum cutting speed: 1000mm/s (39 inch/s)
  • Effective cutting thickness: 6mm
  • Material capacity: Up to 4.5 inch (400 pieces of 250gsm/92lb cover)
  • Cutting accuracy: 0.1mm (.004 inch)
  • Data format: PLT, DXF, HP/GL
  • Tools mountable: Up to 3 (including creasing wheel) on 3 head units
  • Display: Integrated Touch Interface
  • Media hold: Vacuum / Conveyor
  • Voltage: 220 V single phase
  • Vacuum pump power: 4kw
  • Work surface: Felt mat
  • Optional Accessories: Eclipse 2029 Digital Die Cutter
