Fastbind Elite XT Hot Melt Perfect Binder - ELXT110
6995.00 NewCondition InStock

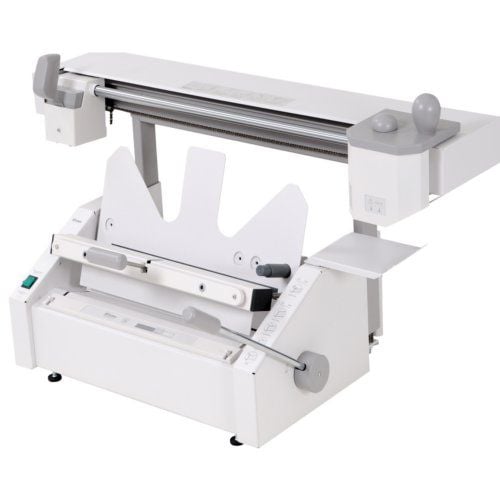

Fastbind Elite XT Hot Melt Perfect Binder - ELXT110

Part #: ELXT110
Brand: Fastbind
3 Questions, 3 Answers
  • Can bind books up to 17.7" x 12.5" portrait or letter landscape, including 10" x 10" and 12" x 12"
  • Capacity books/hour: Up to 180 books/hour
  • Min.-Max. binding length: 140/320 mm or 5.5/12.6 inches
  • Max. binding height: 455 mm / 17.9 inches
  • 1 Year Manufacturer's Warranty
  • Price Match Guarantee
  • Oversize / Truck shipping

$6,995.00

Buy Now, Pay Later
Starting at $647/month
Learn More >

This Item Ships Via Truck

SWIPE FOR MORE IMAGES
  • 0
  • 1
video

Product Description

This Fastbind Elite XT Hot Melt Perfect Binder offers the wide binding flexibility in the market today. It can bind books up to 17.7" x 12.5" portrait or letter landscape, including 10" x 10" and 12" x 12". It quickly produces hard and soft cover books as well as manager covers, tear-off pads and strip binding. Plus, the end result is perfect binding that is strong, square and affordable. The Fastbind Elite XT features the exclusive Paper Grain Opening (“PGO”) system. Unlike other spine rougheners that grind the spine creating lots of noise and dust, the PGO opens the paper grain with very little noise and there is no paper dust! The operator can control the number of PGO passes that need to be made to ensure a solid bind. This easy-to-use perfect binder can make professional quality books and reports in minutes with no set-up times or book format adjustments. In fact, it self adjusts for book thickness from 2 to 400 pages. This Fastbind Elite XT Hot Melt Perfect Binder is ideal for commercial print shops, print/copy shops, binderies, school yearbooks and photographers. For the best printed hard cover books and photo albums, Fastbind Elite XT Hot Melt Perfect Binder can be combined with all Fastbind Casemakers.

Product Details

  • Multiple Types of Bind: Hard Cover Binding, Soft Cover Binding, Strip Binding, Tear-Off Pads
  • Affordable, compact and fully featured.
  • Dust free spine roughening. Features the exclusive Paper Grain Opening (“PGO”) system that opens the paper grain with very little noise and there is no paper dust
  • No set-up times or book format adjustments needed.
  • Self adjusts for book thickness from 2 to 400 pages
  • Compatible with: Fastbind Case Makers, Fastbind Creasers, Fastbind Presso.
  • Optional tools and Accessories: Hard cover toolkit.

Item Specifications

  • Capacity cycles/hour: Up to 450
  • Capacity books/hour: Up to 180
  • Min-max binding thickness: 0.1- 50 mm / 0.004- 1.97 inches
  • Max. binding length: 455 mm or 17.9 inches
  • Min.-Max. binding height: 140/320 mm or 5.5/12.6 inches
  • Max cover thickness: 400 g/m² / 225 index
  • Voltage: 220- 240 V / 110- 115 V
  • Frequency: 50- 60 Hz / 50- 60 Hz
  • Current: 3 A / 6 A
  • Machine dimensions (W x D x H): 1050 x 520 x 570 mm / 41.3 x 20.5 x 22.4 inches
  • Box dimensions (W x D x H): 1150 x 610 x 690 mm / 45.3 x 24.0 x 27.2 inches
  • Net/gross weight: 52.2/70 kg / 115.1/154.3 lbs
  • Manufacturer's Warranty: 1 Year On All Parts (Must use the approved Fastbind glue (type 5.2 from Fastbind) or it will void the warrantee on the glue pot.)

Demonstration Video

Making a Hardcover Book - Fastbind Elite XT

Transcript: Before we create a hardcover book using the Fastbind Elite XT, first allow 20 minutes for the machine to heat the glue.

In that time, you can prepare your pages by placing on the end sheets. Make sure the exposed paper is on the binding edge. Place an end sheet on both sides.

To start, insert your hardcover into the machine. Make sure the spine is flat to the bottom.

Then, slide the cover to the guide, pull the hardcover guide so it overlaps the cover's edge.

Again, make sure the spine is flat--then place your pages in, confirming they are properly oriented to the cover. Tamp the e ...
Read More
Before we create a hardcover book using the Fastbind Elite XT, first allow 20 minutes for the machine to heat the glue.

In that time, you can prepare your pages by placing on the end sheets. Make sure the exposed paper is on the binding edge. Place an end sheet on both sides.

To start, insert your hardcover into the machine. Make sure the spine is flat to the bottom.

Then, slide the cover to the guide, pull the hardcover guide so it overlaps the cover's edge.

Again, make sure the spine is flat--then place your pages in, confirming they are properly oriented to the cover. Tamp the ends evenly.

When clamping, place one hand behind the cover, holding it to the metal back, then bring the clamp in and secure it in place.

Now, flip the project around using the side arm. Run the splitter teeth across the project twice. This takes smooth paper and roughens it for the best glue penetration--This is required for non-bond papers.

Next, run the glue over the project. Give a short pause, then run it over again. Immediately press the cover over the glue and bring it back down three times--this spreads the glue evenly. Hold the cover to the spine for five seconds, pushing down.

With the glue drying quickly, bring the project back down, remove the clamp, and slide the project out. Then reinsert the entire book, spine down.

Ensure you have the hard cover bar in place. Then, press firmly down on the lever to crimp the spine of the book. Rotate the book and crimp the other side.

To finish your book, open it and peel back half of the release liner. Press the cover on and slide the liner out. Use the liner to cleanly rub the liner onto the cover. Repeat this on the other side. Peel off half, close the cover, and remove the liner. Press the end sheet to the cover, and then your project is complete.

You have now bound your hard cover book.

Making a Soft Cover Book - Fastbind Elite XT

Transcript: In this video we are going to make a soft cover book using the Fastbind Elite XT.

First, allow 20 minutes for the machine to heat the glue. Seeing small glue beads begin to drop is an indication that the glue is ready.

Also make sure the softcover bar is in place.

To start, take your crimped soft cover and insert it into the machine. The front should be facing the back of the machine.

Next, insert your pages so they are properly oriented to the cover. Align all the pages together.

Now, place your hand behind your pages and hold it to the machine, then bring the clamp down and se ...
Read More
In this video we are going to make a soft cover book using the Fastbind Elite XT.

First, allow 20 minutes for the machine to heat the glue. Seeing small glue beads begin to drop is an indication that the glue is ready.

Also make sure the softcover bar is in place.

To start, take your crimped soft cover and insert it into the machine. The front should be facing the back of the machine.

Next, insert your pages so they are properly oriented to the cover. Align all the pages together.

Now, place your hand behind your pages and hold it to the machine, then bring the clamp down and secure it in place.

Use the lever arm to bring the project up, and press the cover down to keep it from improperly gluing.

Run the splitter teeth across the project twice. This takes smooth paper and roughens it for the best glue penetration--this is required for non-bond papers to expose the paper fibers.

Next, run the glue over the project. Give a short pause, then run it over again. Immediately after, pull lightly on the cover three times.

Then, bring the book down. Press the lever arm firmly down to clamp the spine. Hold this position for five seconds and release.

Unclamp the book. And remove the project.

You have now created a softcover book. For the best results, finish it off by trimming the three sides. Using EVA glue, it is immediately dry and ready to use.

Questions & Answers

We get the parts straight from the manufacturer. If you could call us at 800-944-4573 with the part numbers, we would be more than happy to get the pricing for you on the parts you need and get them ordered.

Answered by Mybinding.com
6 years and 4 months ago ago
Thank you for your question. The Fastbind Elite XT Hot Melt Perfect Binder would be able to be used for binding a soft cover book such as a magazine. One thing to consider is the Fastbind system works best with bond paper if your magazine is printed on a glossy stock a adhesive based binding system would not be your best option.

Answered by MyBinding
6 years and 11 months ago ago
Thank you for your question. The best way to see if this machine would work with your paper is to send us a sample and we could have a test book made for you. The machine has a "paper grain opener" which provides more flexibility when working with different paper types. Being that this is a thermal process, the process requires absorption of the glue, the glossy coatings prevent this process in most situations.

Answered by MyBinding
7 years and 3 months ago ago
Thank you for your question. The best way to see if this machine would work with your paper is to send us a sample and we could have a test book made for you. The machine has a "paper grain opener" which provides more flexibility when working with different paper types. Being that this is a thermal process, the process requires absorption of the glue, the glossy coatings prevent this process in most situations.

Answered by MyBinding
7 years and 3 months ago ago
