Automatic clamping, glue application, milling and nipping.
Self-adjusting PUR side glue.
Sealed tank system to reduce waste.
Adjustable and automatic nip table pressure for a squarer spine.
ProductDescription

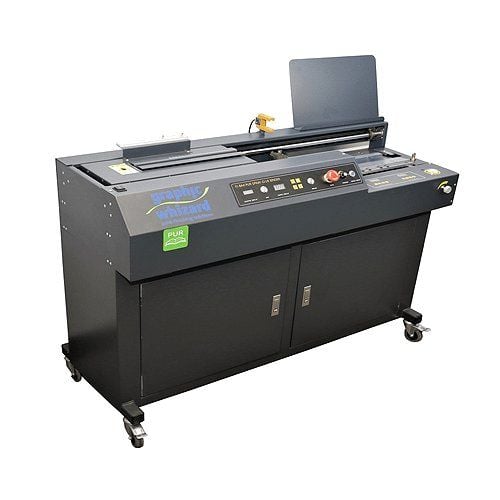

This Graphic Whizard 320B-PUR Perfect Binder creates an effective, high quality binding on coated or non-coated stocks. The increased versatility of PUR glue makes the 320B ideal to most perfect binding jobs. It can bind up to 12.6" long and up to 1.75" thick documents, and produces 320 books per hour. This mid-level Graphic Whizard 320B-PUR Perfect Binder is solidly built and includes standard features normally seen on more expensive perfect binding machines.
This product is only available to customers in Oregon, Washington, Idaho, Utah, California, Nevada, Missouri and Illinois.
Product Details
Automatic clamping, glue application, milling and nipping.
Self-adjusting PUR side glue.
Sealed tank system to reduce waste.
Adjustable and automatic nip table pressure for a squarer spine.
Adjustable nip table side pressure.
Excellent for tacking tough adhesive binding jobs.
Built-in dust extraction.
High quality immediate (green) tack.
Rapid achievement of final bond strength.
Unparalleled adhesion to many surfaces.
Long lasting shelf life.
Increased spine flexibility.
Lay flat friendliness.
1 Year Mechanical Parts and Electronics
Item Specifications
Electrical: 208-230V 1phase / 20A
Cycle Speed: 320 cycles/hour
Max Binding Length: 12.6" (32cm)
Max Binding Thickness: 1.75" (4.5cm)
Notching: Two blades
Dimensions:
Length: 51" (130 cm)
Width: 25" (63 cm)
Height: 44" (110 cm)
Weight: 400 lbs (180 kg)
Clamping of Sheets: Electric Manual push button
Clamping of Cover: Electric
Side Gluing: Yes, nozzle extrusion
Cover Insertion: Manual
Warm up Time: 20-30 minutes
LCD Display: Yes
Padding Mode: No
Dust Extraction: Vacuum, enclosed
Manufacturer's Warranty: 1 Year Mechanical Parts and Electronics
