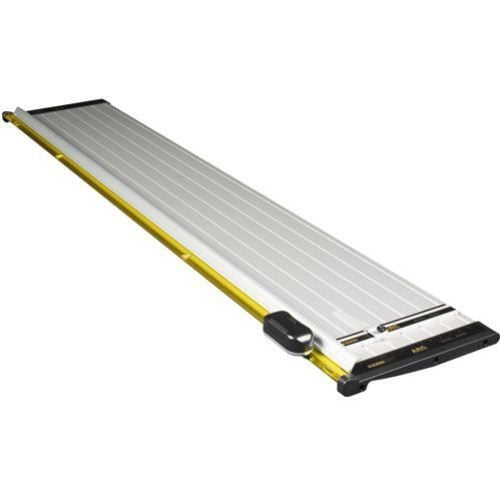

Keencut 80" Advanced Rotary Cutter (ARC) - ARC203
1030.50 NewCondition InStock

Keencut 80" Advanced Rotary Cutter (ARC) - ARC203

Part #: 60613
Brand: Keencut
  • Guaranteed 1.0mm straightness over the full length of the cut
  • Specifically designed for cutting paper and film
  • Precision scissor cutting action for a professional finish on delicate materials
  • Unobstructed view of cut line
  • 5 Year Manufacturer's Warranty
  • Price Match Guarantee
  • Oversize / Truck shipping

$1,030.50

Buy Now, Pay Later
Starting at $95/month
Learn More >

This Item Ships Via Truck

SWIPE FOR MORE IMAGES
  • 0
  • 1
  • 2
  • 3
  • 4
video

Product Description

The Keencut Advanced Rotary Cutter (ARC) features a unique sub-surface monorail bearing system and twin cutting wheels to make perfect cuts for any type of business, especially sign and print shops and others in the graphics industry. The Keencut Advanced Rotary Cutter features no overhead guide mechanism to obscure the cut line, two tungsten cutting wheels for ultimate performance, two clamp rollers for safe and secure material holding, and much more. The Advanced Rotary Cutter is capable of cutting the thinnest of materials such as cardboard, tissue, film, paper, and more to take care of all of your cutting needs. If your business needs a reliable, unrivaled rotary cutting trimmer, check out the Keencut Advanced Rotary Cutter on MyBinding.com and save now. This product is currently only available to our customers in the United States of America. If you are located internationally, you will need to contact a local dealer to purchase this particular product.

Product Details

  • Keencut cutters are the most accurate on the market
  • Guaranteed 1.0mm straightness over the full length of the cut
  • Specifically designed for cutting paper and film
  • Precision scissor cutting action for a professional finish on delicate materials
  • Unobstructed view of cut line
  • Maximum clamping for material stability
  • Safety by design
  • Simple and instinctive operation
  • Calibrated for immediate ‘out of the box’ accuracy
  • Manufactured and finished with premium quality materials
  • Guaranteed for 5 years


Outstanding Features


Straight accurate cutting

The superior construction guarantees that the cut is consistent over the entire length of the material, there are no bows or buckles in the middle. The robust aluminium baseplate with integral metric parallel grooves, provides a stable cutting platform. Two integral roller clamps ensure secure clamping during cutting.


Two way cutting

The Technic ARC has dual cutting wheels to provide the flexibility of cutting in both directions. High grade blades, made from hardened tool steel, guarantee the sharpness required for perfect cutting.


Clear view of cutting line

The unique monorail bearing system, positioned underneath the surface of the baseboard, means that there is no overhead guide rail to obscure the cut line.


Unobtrusive design

With no overhead guide rail, the Technic ARC has a flat unobtrusive design that will not get in the way of other work. It can fit neatly onto the work surface or be positioned on an optional dedicated stand.


Safety by design

The advanced monorail design eliminates the instability of overhead rail cutters and the potential risk of standard paper guillotines. The Technic ARC will not distort even under heavy pressure.


Flexibility

The Technic ARC can be placed directly on your work surface or fitted to a purpose-built stand or stand pack.


Five year guarantee

By manufacturing in-house, with only the highest quality materials, Keencut can guarantee that the Technic ARC will provide reliable long-lasting and accurate service. All Keencut products are offered with a comprehensive five year guarantee.


In the box

The Technic ARC works straight from the box. It does not need any additional blades or fittings.

Item Specifications

  • Materials cut:
    • Semi-rigid materials
      • Cardboard ≤ 1mm (0.004")
      • Mountboard ≤ 1mm (0.004")
    • Flexible materials
      • Paper
      • Tissue paper
      • Film
      • Self-adhesive vinyls
  • Dimensions:
    • Cut Length cm ("): 203cm (80")
    • A cm ("): 231cm (91")
    • B cm ("): 43.5cm (17")
    • Packed Weight: 18kg (40lbs)
    • Packed Dimensions cm ("): 243 x 50 x 11cm (113 x 20 x 4)"
  • Manufacturer's Warranty: 5 year Comprehensive Guarantee
  • Old Part Number: 60613
  • New Part Number: ARC203

Demonstration Video

Keencut Technic ARC TE Demo Video

Transcript: Technic ARC TE. Advanced Rotary Cutter. Simply screws down onto the edge of your work table, available in cutting lengths up to 3 metres (120”). Feed the material under the clamp strip, align the trim marks to thee edge of the clamp bar. Then just slide the cutting head to cut. Rotate the material, keeping the corner under the clamp strip. Align and cut. The Clamp Strip floats to aid easy loading. As the cutting head moves away from the end of the machine it engages the clap strip to hold the material in place. And it cuts in both directions. The Advanced Rotary Cutter’s unique sub surface mon ... Read More
Technic ARC TE. Advanced Rotary Cutter. Simply screws down onto the edge of your work table, available in cutting lengths up to 3 metres (120”). Feed the material under the clamp strip, align the trim marks to thee edge of the clamp bar. Then just slide the cutting head to cut. Rotate the material, keeping the corner under the clamp strip. Align and cut. The Clamp Strip floats to aid easy loading. As the cutting head moves away from the end of the machine it engages the clap strip to hold the material in place. And it cuts in both directions. The Advanced Rotary Cutter’s unique sub surface monorail bearing system means no overhead bar leaving a clear view of the cut line. Plus an unobscured cutting head for a comfortable grip. Ergonomic cutting head with two cutting wheels gives a smooth easy glide action. Two clamp rollers, mounted within the cutting head, provide secure clamping along the whole length of the cut. Not all cutters are able to trim fine slithers down to the thickness of a hair. But the Technic ARC TE can. A note on Safety: The exposed edge of the Technic will not cut when touched or rubbed against. Even thin stretch film will not tear. If you cut paper or film up to 3 metres (10”) long the Technic TE will transform your table top into a safe, fixed but flexible cutting solution. Do you have a suitable bench? If no, click on the Keencut website, we can provide that too. If you need a portable version with its own base plate, look up the Technic ARC, again available up to 3m (120”) cutting length. The Technic ARC has the performance of the TE with the freedom of its own base plate. Just place it on any flat surface, remove the red protective strip, load the material, align it, and cut. The Keencut Technic ARC TE. Table Edge Advanced Rotary Cutter. Unique Monorail Mechanism. Innovative Space-saving Design. Bench or Table Mounted. Durable and Precise. Available in 5 cut lengths up to 3 metres. 5 Year Warranty. An ultra safe cutting solution for the office, classroom, media room and more.

Advanced Rotary Cutter (ARC)

Product NameItem Number
Keencut 42" Advanced Rotary Cutter (ARC)ARC107
Keencut 60" Advanced Rotary Cutter (ARC)ARC152
Keencut 80" Advanced Rotary Cutter (ARC)ARC203
Keencut 100" Advanced Rotary Cutter (ARC)ARC254
Keencut 120" Advanced Rotary Cutter (ARC)ARC305

Replacement Blades and Accessories

Product NameItem Number
Stand Pack for Technic ARC 80" (Max roll size for roll feeder 75")STP7
Replacement Black Cutting Head for ARC and ARC TEARCCH
36" Extended Measuring arm for Technic ARCRCMA

Product Support

TitleDownload Link
Technic ARC TE Checking Base Plate Straightness DOWNLOAD
Replacing The Cutting Head On The Technic ARC & ARC TE DOWNLOAD
Replacing The Base Edge Strip On The Technic ARC & ARC TE DOWNLOAD
