Name: Foster On-a-Roll Lifter Power Universal (Hi-Rise) - 61565
Brand: Foster
SKU: 04FM61565

Foster On-a-Roll Lifter Power Universal (Hi-Rise) - 61565

$4,770.00

Price Match Guarantee*

Quantity

Need Shopping Advice?
Call - (800)944-4573

Item# 04FM61565

Effortless Operation: Powered by a robust DC motor, this lifter minimizes manual effort, allowing for quick and easy roll handling.
Enhanced Safety: Equipped with safety straps and a step-on locking brake, ensuring secure transport and stability during use.
Versatile Compatibility: Designed to seamlessly integrate with most laminators, making roll loading and unloading hassle-free.
Durable Construction: Built with rugged materials for long-lasting performance, ideal for demanding work environments.

Product Description

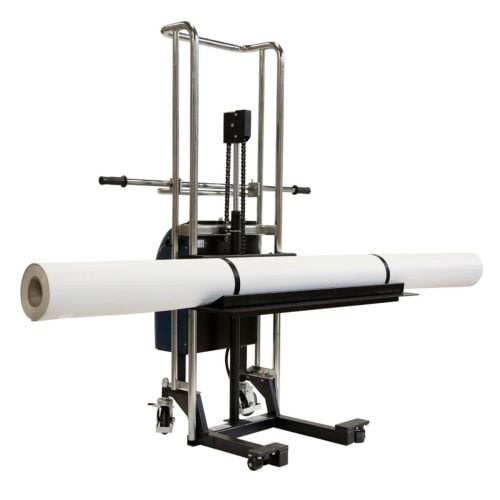

The On-A-Roll® Lifter Power Universal Hi-Rise features a robust DC motor that takes the strain out of raising and lowering rolls. This advantage significantly cut down roll changeover time. The Foster On-A-Roll® Lifter Power Universal Hi-Rise effortlessly hoist rolls weighing up to 300 kg (660 lbs.) and spanning up to 400 cm (13 feet). The flat roll loading tray is compatible with most laminators and easily aligns with the laminator's upper loading shaft. Easily detach two adjustable roll wedges for loading and unloading. A simple push of a button raises and lowers the tray and conveniently plugs into standard outlets for recharging. The 3-inch-high front swivel casters fit under laminators and other machinery with low clearances. Safety straps securely anchor rolls to the tray, preventing any movement during transportation. With its 54-inch lift height, top rollers can be reached without any issues. The removable roll wedges and flat roll tray conveniently fit between rollers and openings. For added versatility, consider the Model #63161 Optional Roller Platformto feed rolls directly into their machines from the lifter.

Product Details

Powerful DC motor easily lifts and lowers rolls, eliminating manual labor and power lift reduces roll changeover time.

Lifts rolls up to 54” to easily load and unload rolls onto the laminators.

Thin flat roll tray easily fits into the side of the roll loading area on laminators.

Pair of heavy-duty rear swivel casters with easy step-on locking brake.

Reduces on-the-job injuries and enables all workers to move heavy rolls.

User-friendly operation avoids costly and dangerous handling mistakes that damage media.

Rugged construction ensures long lifter life.

Single-person operation saves labor and time.

Specifications

Roll Weight Capacity: 660 lbs (300 kg)

Lift Height: 54" H (135 cm)

Max. Roll Width: 13' (400 cm)

Max. Roll Diameter: 15.75" (40 cm)

Overall Media Lifter Dimensions (W x D x H): 47.25”W x 35.5”D x 68"H (120 x 90.3 x 173 cm)

Media Lifter Weight: 271 lbs (123 kg)

Bottom Fork Clearance: 3.25” (8.25 cm)

Front Swivel Castors: 2" (5cm)

Rear Swivel Castors: 5" (12.7 cm)

Electric: 12V/60AH DC motor USA (220V/50HZ DC motor Europe)

Battery: Maintenance free lead acid battery

Charger: Built-In 110V AC charger USA (Built-In 220V AC charge Europe)
