Product Description

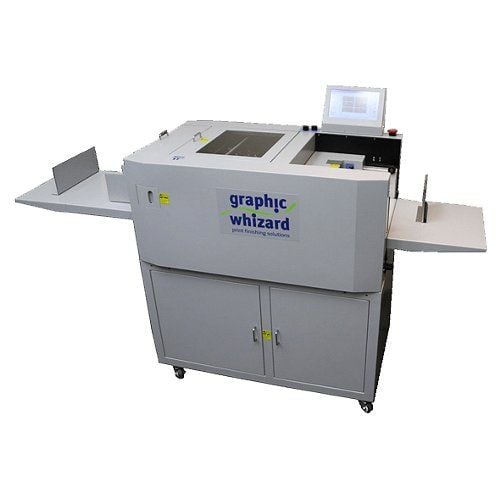

Built on the same platform as the PT 335SCC Multi, the PT 335SCC B Multi has all of the same capabilities with the exception of strike perf, bar code reader and dual direction cut mark reader. This floor model,automatic feed/slit/cut/crease machine with a maximum sheet width of 13" can perform up to 32 creases per sheet, has a 4" vacuum pile feeder, 9" color touchscreen, lead edge cut mark reader, ultrasonic doubles detect and interchangeable crease/cross perf dies. The PT 335SCC Multi series has a choice of five creasing widths, as well as an array of rotary tools for perforating and scoring. For strike perf option, bar code/OMR software, cut mark registration in both directions see model PT 335SCC Multi.
Product Details
- Feed Capacity: 4″
- Feeder Type: Air suction Pile Feeder
- Input Paper Weight: 150-350gsm
- Input Paper Size:
- 8.26″ x 8.16″ (20.98cm x 20.72cm)
- 13"x 26.5" (33.02cm x 67.31cm)
- 40" Hand Fed (104cm)
- Minimum finished cut size: 1.96″ x 1.89″
- Speed: Up to 25 sheets per minute
- Crease Depth Adjustment: 5 steps auto adjust
- Crease Width Options: 4 .6, 1, 1.2, 1.4 mm
- Crease Direction: Up or Down
- Number of Slitters: 6, variable gutters
- Integrated Conveyor Outfeed Option: Yes
- Cut Mark Image Shift Compensation: Yes, Lead edge only
- Linear Perforating: Yes
- Strike Perf Option: No
- Cross Perforating: Yes
- Micro Perforating: Yes 24/48 TPI
- Custom Job Memory: 64
- Double Sheet Detect: Yes Ultrasonic
- Bar Code Job Recognition: No
- 9″ Color Touchscreen: Yes
- Built in Job Creator: Yes
- Warranty: 3 year parts and electronics
Specifications
- 4" deep pile feeder.
- Multi accessory output.
- 9" colour touchscreen.
- Interchangeable crease/ perf dies.
- Built in job creator and 64 job program memory.
- Linear rotary perf.
- Automated crease depth adjustment.
- 3 year warranty (excludes consumables).
