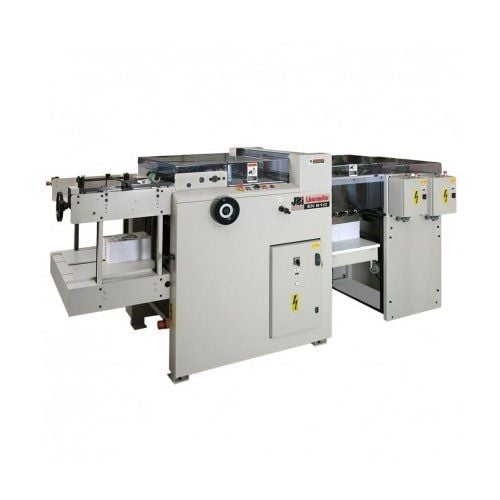

The James Burn EX610D Duplex Automatic Punch with Board Feedeer is the only automatic punching machine which offers a duplex reception option that allows the machine to process punched paper and cardboard on two different reception systems. Duplex receptions include a standard high pile or conveyor reception for inner sheets and standard weight covers, and a straight high pile reception unit that is dedicated to card-board applications. The configuration changeover is very easy and both reception devices can be disconnected. The mechanical device is operated by a handle; the electrical device is driven by an on/off switch. Designed to punch both paper and cardboard, the EX610 with the Duplex Reception enhances the profitability of a print finishing workshop.
Product Details
Duplex Receptions Include:
A standard high pile or conveyor reception for inner sheets and standard weight covers.
A straight high pile reception unit that is dedicated to card-board applications. As the board does not run through the turnover drums, this guarantees a perfect flatness without any curling. (Note: A board feeder will have to be added to this equipment.)
The configuration changeover is very easy and both reception devices can be disconnected. The mechanical device is operated by a handle; the electrical device is driven by an on/off switch.
Advantages:
Designed to punch both paper and cardboard, the EX610 with the Duplex Reception enhances the profitability of a print finishing workshop.
Improves productivity by 80% as the operations of board punching are currently made on manual machines.
The adjustments for board and paper punching are identical, which helps reduce the setting time as well as the requirements in operator training.
Perfect alignment of holes between cardboard covers and inner sheets facilitates wire insertion and speeds up binding operation by reducing possible downtime due to mis-alignment.
It saves floor space which can be used for other applications (e.g. for binding) and will provide print finishers with increased production capacity and improved material work flow resulting in a better profitability.
Item Specifications
Manufacturer - James Burn
Suggested User - Industrial

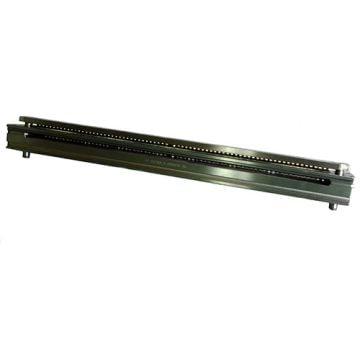

Optional Punching Dies & Accessories - EX610 Series Punching Dies EX610 Series Tab Pusher EX610 Series Nail Hole Punching Kit EX610 Series Bottom Feed Board Unit
Setup Time - 15-20 Minutes
Die Change Time - 2 Minutes
Minimum Paper Size - 4-1/4" x 3-7/8"
Maximum Paper Size - 24" x 20-3/4"
Table Capacity - 18" Stack
Speed* - 70 Cycles / Minute
Maximum Punching Thickness - 2.5 mm
Pick Thickness - Up to 2.5 mm
Air Supply – 6 Bar/410/mn, 2 CFM at 40 PSI
Jogger - 4-Sided Jogger
Duty Rating - Continuous Use
Training - Minimal
Weight - 3155 lbs.
Shipping Weight - 3479 lbs.
Electrical Voltage - 220/380v Three Phase 60 Hz (20A) 3Kw
