James Burn Onglematic O3 Tab Cutter w/ 1/2 Ext. Double Round Corner
1817.00 NewCondition InStock

James Burn Onglematic O3 Tab Cutter w/ 1/2 Ext. Double Round Corner

Part #: 04JBO3DRTABCU
Brand: James Burn
3 Questions, 3 Answers
  • Manual positioning and manual cutting action
  • Cuts 2-12 equal size tabs per 11" long sheet and 2-9 equal size tabs per 8-1/2" long sheet.
  • Cuts10-15 sheets of 20 lb. paper at once.
  • Cuts paper, cardboard or poly up to 120 lb. stock.
  • Limited 90 Day Manufacturer's Warranty
  • Price Match Guarantee
  • Free Shipping

$1,817.00

Buy Now, Pay Later
Starting at $168/month
Learn More >

Qualifies for FREE Shipping!*

SWIPE FOR MORE IMAGES
  • 0
  • 1
  • 2
  • 3
  • 4
video

Product Description

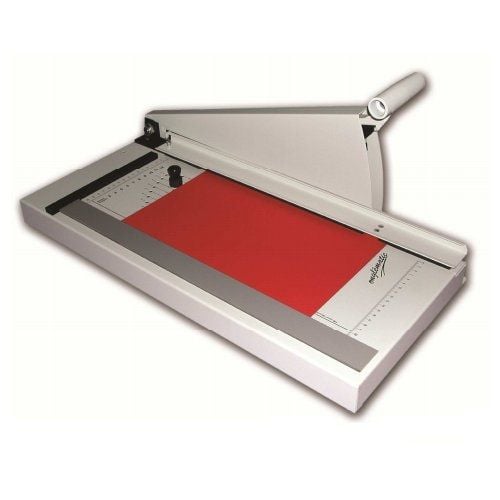

The James Burn Onglematic O3 is a guillotine-style index tab cutter with manual positioning and manual cutting action. This table-top cutter is equipped with a double round corner die. The pre-fixed tab length is calculated so each tab is identical from 1/2 cut to 1/12th cut tabs. The Onglematic O3 cuts 2-12 equal size tabs per 11" long sheet, 2-9 equal size tabs per 8-1/2" long sheet, and 10-15 sheets of 20 lb. paper at once. It can cut paper, cardboard or poly up to 120 lb. stock. This tab cutter can be used as a simple guillotine cutter.

The Onglematic O3 Tab Cutter is easy to use. Simply push the cutting handle down and tab positioning is set by moving the sheet side stop from one hole to the other along the line indicated by the number of tabs required. Create perfectly aligned edges with the magnetic lateral stop and ruler.

Accurately cut your index tabs and dividers at home or office with James Burn Onglematic O3 Manual Guillotine Index Tab Cutter.



How to Use the Onglematic O3 Tab Cutter
  • Set the magnetic paper stop using the ruled guide to your paper size and desired tab size
  • Pull down the guillotine handle to cut the first edge
  • Move the side stop to the hole for the desired tab size, and cut again
  • Repeat this process for all tabs in your set



Onglematic O3 Tab Cutter Key Features
  • On-demand tab cutting for quick turn-around
  • Creates tab sizes from 1/2 cut to 1/12 cut (5" Wide to 13/16" Wide Tabs)
  • Creates industry-standard 1/2" extension tabs
  • Can cut through paper, cardboard, and poly materials

Product Details

  • Manual positioning and manual cutting action
  • Equipped with a double round corner die
  • Cuts 2-12 equal size tabs per 11" long sheet.
  • Cuts 2-9 equal size tabs per 8-1/2" long sheet.
  • Cuts10-15 sheets of 20 lb. paper at once.
  • Cuts paper, cardboard or poly up to 120 lb. stock.
  • Magnetic lateral stop with inch rule.
  • Can be used as a simple guillotine cutter.
  • A 15° angled cutting die machine is also available.

Item Specifications

  • Tab Shape: Double Round Corner
  • Operation: Manual
  • Dimensions: 11.8" x 22.8" x 11.8"
  • Manufacturer's Warranty: 90 Day Limited Manufacturer's Warranty
  • Extension Size: 1/2"
  • Tab Cut: 1/2 Cut, 1/3 Cut, 1/4 Cut, 1/5 Cut, 1/6 Cut, 1/7 Cut, 1/8 Cut, 1/9 Cut, 1/10 Cut, 1/12 Cut
  • Number of Tabs (11" Edge): 2-12 Tabs
  • Number of Tabs (8.5" Edge): 2-9 Tabs
  • Tab Cut Style: Guillotine (Manual)
  • Capacity: 10-15 Sheets (20 lb. Bond)
  • Rated to Cut Materials (Up to 120 lb. or Equivalent): Paper, Cardboard, Poly

Demonstration Video

Onglematic 3 Guillotine Tab Cutter Demo

Transcript: The guillotine-Onglematic 3 allows to cut from 3 to 12 tabs shared on 297 mm. Each vertical line corresponds to the number of tabs to cut. For example, to cut 7 tabs, the positioning stop is put is the first hole of the line “7”. The first chapter is cut. The positioning stop is put in the second hole of the line “7”. The second chapter is cut. And so forth, up to the penultimate part. Here is the document entirely cut. The left lateral stop is magnetic: so, different document widths are possible. For example, the cut is possible on 210 (A4 format) or on 222 mm (A4+ format).
The guillotine-Onglematic 3 allows to cut from 3 to 12 tabs shared on 297 mm. Each vertical line corresponds to the number of tabs to cut. For example, to cut 7 tabs, the positioning stop is put is the first hole of the line “7”. The first chapter is cut. The positioning stop is put in the second hole of the line “7”. The second chapter is cut. And so forth, up to the penultimate part. Here is the document entirely cut. The left lateral stop is magnetic: so, different document widths are possible. For example, the cut is possible on 210 (A4 format) or on 222 mm (A4+ format).

Questions & Answers

Yes, The Onglematic O3 can do a set of 5 tabls. Simply push the cutting handle down and tab positioning is set by moving the sheet side stop from one hole to the other along the line indicated by the number of tabs required.

Answered by MyBinding.com
3 years and 4 months ago ago
Although we don't stock parts here, we are able to get the parts you need on most machines. Please call our toll free number at 800-944-4573 with the part number you are looking for and we can research it and get the price. We are available from 6am to 5pm PST.

Answered by MyBinding
4 years and 5 months ago ago
The Onglematic O3 Manual Guillotine Index Tab Cutter does not have adjustable tab extensions, they are 1/2".

Answered by MyBinding
4 years and 5 months ago ago
