James Burn Onglematic O7 Tab Cutter w/ 1/2 Ext. Double Round Corner

Skip to the beginning of the images gallery

SWIPE FOR MORE IMAGES

Product Description

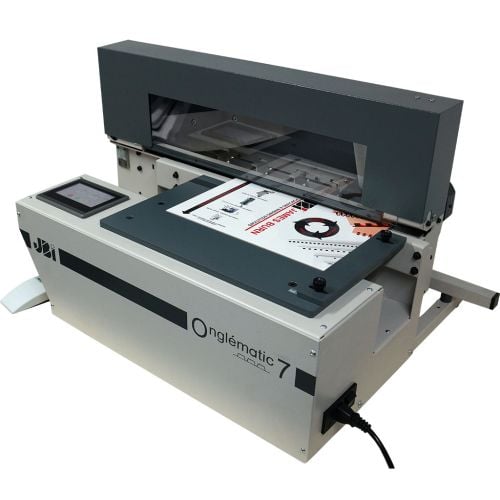

The Onglematic 07 is a flexible and reasonably priced table top semi-automatic electric tab index cutter for bound papers or loose pages, as well as a divider cutter, suited for mid-size to high production volume needs. With around 150 sheets (80gsm) or 550 sets of 9 dividers (220gsm), it can bind 60 papers with 10 chapters every hour. It comes with a variety of cutting dies for making step tab sets. Give your clients something no one else can: rapid turnaround on tabbed items that are created internally so that you have control over the lead time.

Product Details

Versatile: The Onglematic 7 is capable of creating both single and double tabs, effortlessly cutting through 15-20 sheets of 20 lb. bond paper. Additionally, it handles cover stock, cardboard, and poly up to 120 lb. It can produce up to 59 tabs with the same width or cut up to 24 tabs with variable width, storing up to 11 programs.
Efficient: With the ability to produce 60 bound documents of 10 chapters, comprising about 150 sheets (80 lb. cover) or 550 sets of 9 dividers (20 lb. cover) per hour, the Onglematic 7 ensures optimal productivity.
Easy-to-use: The automatic operation allows on-demand tab cutting. Simply set the cutter to your paper size (in inches or mm), choose the tab type (single or double), and specify the desired quantity of tabs. Activate the foot switch to cut the first edge and repeat the process for all tabs in your set.
Ergonomic design: All operations can be swiftly and easily performed from the front of the machine, with foot switch activation enhancing user convenience.
5 available tab shapes: Choose from standard, 15° angle, 90° angle, 90° angle with internal round corner, and 90° angle with double round corner, each featuring a ½" tab extension.
Safety: The Onglematic 7 incorporates built-in features to enhance operational safety.
Switch between manual and automatic cutting
The stopper will continue only after it’s been approved by the user.
With an easy-to-use LCD touchscreen that allows operators to select their paper size, the style of tab, and how many tabs you need.
The bound document clamping device ensures staight and uniform cuts every time.

Item Specifications

Cutting Width: 320mm / 12.5"
Cutting Thickness: Up to 20 sheets (80gsm / 20lb.)
Number of tabs: From 2 up to 59
Number of single tabs with variable width: From 2 up to 24 with storage up to 11 programmes.
Number of double tabs with variable width: From 2 up to 12 with storage up to 11 programmes
Control Panel: LCD Touch Screen
Format Set Up Time:Via LCD Touch Screen
Power:220/240 V (50Hz) 1ph – 110/120 V (60Hz) 1ph
Machine Dimensions (WxDxH): 700 x 800 x 420 mm / 27.6” x 31.5” x 16.5”
Net Weight: 132 lbs.
