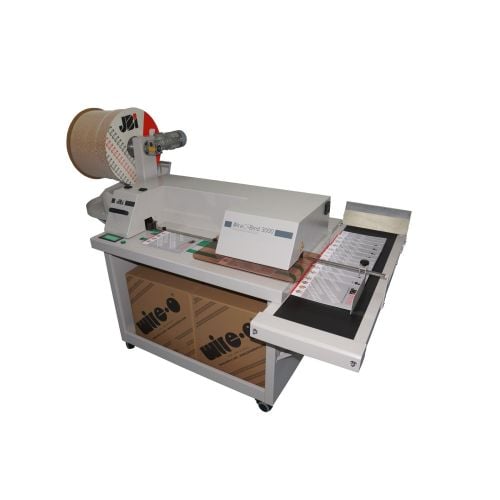

With the James Burn Wire-O Bind 3000S Semi-Automatic Binding Machine, enjoy remarkable productivity. Unmatched versatility is offered by this semi-automatic binding machine when combined with Wire-O spools or cut lengths. With the use of the innovative touch screen digital keypad, configurations for sizes and formats can be programmed in and modified without the need for manual adjustments, making setup and operation simple. The document is sent to the closure unit, which correctly aligns the document without the need of stops or paper guides. This wire binding machine automatically feeds, cuts, and places the wire element ready for insertion. This automatic setup also helps to reduce waste. Due to its versatility, the WOB3000S may be used to bind a variety of papers with flush cut or overlapping covers as well as expanded index tab paper stocks. The task is completed quickly and with little effort thanks to a pace of up to 1,000 documents per hour. Even spool replacements and Wire-O size changes are quick and simple, taking only 2 to 5 minutes to do. The machine's ergonomic design, which incorporates a spacious table-top workstation, considerably reduces fatigue. This effective machine is lightweight, has smooth rolling casters, and can fit anywhere. Use the James Burn Wire-O Bind 3000S Semi-Automatic Binding Machine to automate wire binding for a quick and effective binding process.
Product Details
Versatile: Uses Wire-O® spools or cut lengths to enable all forms of Wire-O® binding styles for a wide range of documents with flush cut or overhanging covers as well as extended index tabs paper stocks.
Effective: You can process up to a 1,000 pages each hour. Waste can be reduced by using an automatic setup. There are three different plug-and-play reception types that can handle most workflow scenarios.
User-friendly: No mechanical adjustments are required; all size and format sets are instantaneously customizable via 'touch screen' digital keypad. Changes in Wire-O size can be made in 2 to 5 minutes, including changing the spool.
Adaptive design: An expansive tabletop workstation reduces operator fatigue. With no need for air, its compact footprint and caster wheels let it to fit even in the tightest of spaces.
Adaptive design: An expansive tabletop workstation reduces operator fatigue. With no need for air, its compact footprint and caster wheels let it to fit even in the tightest of spaces.
Item Specifications
Max document size: 12" B.E. (300mm) x 13" (330mm)
Min document size: 1.5" B.E. (38mm) with spools or 2.8" B.E (71mm) x 1.5" (38mm) with cut lengths
Document thickness: Up to 1-1/8" (28 mm)
Cycle speed: Up to 1 000 documents/hour
Wire-O® sizes: 3:1 Pitch 1/4" to 9/16" & 2:1 Pitch 5/8" to 1-1/4"
Oversize covers: Possible
Skip binding: 1 with 2 loops min. (Only in spool mode)
Reception capacity with standard tray: up to 2" (50mm)
Optional adjustable reception bin: up to 7" (180mm)
Optional conveyor reception: up to 50 books 3/8" (10 mm) thick
Spool change over In less than 5 minutes
Control panel: Touch screen
Format set up: Fully automatic
Format set up time: less than 2 minutes
Power: 110/120 V (60Hz) 1ph
Machine dimensions with standard reception ( L x W x H): 8'x 2' 10"’x 5' (2250 x 850 x 1540 mm)
