James Burn DCR-400 Dual Corner Rounding Machine
34494.00 NewCondition InStock

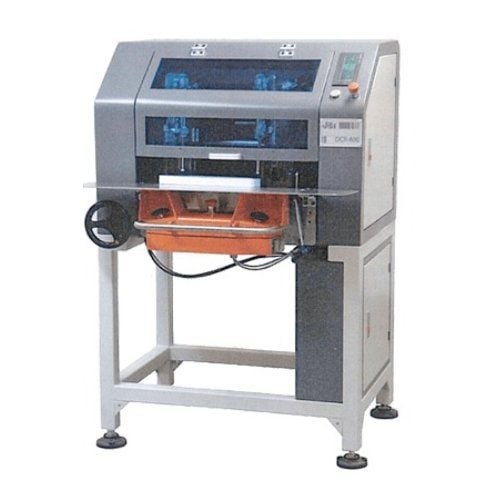

James Burn DCR-400 Dual Corner Rounding Machine

Part #: 04JBDCR400
Brand: James Burn
  • Feeding Mode: Manual
  • Max Paper Sizes: 400 x 297 mm
  • Min Paper Sizes: 88 x 55 mm
  • Speed: 24 cycles/minute
  • Price Match Guarantee
  • Oversize / Truck shipping

$34,494.00

Buy Now, Pay Later
Starting at $3,191/month
Learn More >

This Item Ships Via Truck

SWIPE FOR MORE IMAGES
  • 0
  • 1
Product Name Item Number Price Qty
1/4" Round Corner Dies for DCR-400 04JBDCR40014
$798.00
1/8" Round Corner Dies for DCR-400 04JBDCR40018
$798.00
3/4" Round Corner Dies for DCR-400 04JBDCR40034
$798.00
3/8" Round Corner Dies for DCR-400 04JBDCR40038
$798.00

Product Description

The DRC-400 is a compact machine designed to make round corners on any material ranging from books, note pads, diaries, cards. Right and left corners can be cut simultaneously in a single stroke. The cutting thickness of up to 100mm combined with a mechanical speed of up to 24 cycles / minute provide optimum output for a one man operation. It is the ideal solution for medium to long runs with a regular output.

Product Details

  • Productivity : the right and left corners can be cut simultaneously in a single stroke. The cutting thickness of up to 100mm combined with a speed of up to 24 cycles / minute provide optimum output for a one man operation.
  • Versatile : The DCR-400 can accommodate a wide range of dies with radius ranging from 1/8" to 1". It can also be operated as a single corner rounding machine.
  • User-friendly : easy adjustments and adjustable work table angle ensure optimum working conditions.

Item Specifications

  • Feeding Mode: Manual
  • Max Paper Sizes: 400 x 297 mm
  • Min Paper Sizes: 88 x 55 mm
  • Speed: 24 cycles/minute
  • Max Cutting Thickness (paper only): 100 mm
  • Die Radius from: 1/8" to 1"
  • Work Table Adjustable Angle: Up to 20°
  • Voltage: 200/240 V (50 Hz) 1 ph - 110/120 V (60 Hz) 1 ph
  • Power Consumption: 0.25 kW
  • Air Pressure: 6 to 8 bars
  • Dimensions: 0.84 x 0.83 x 1.31 (H/a) m
  • Net Weight: 220 kg
