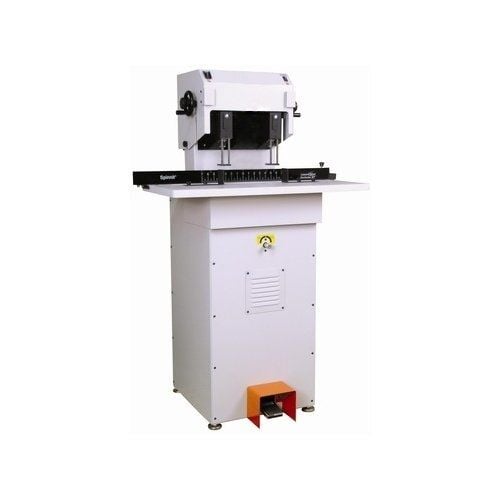

Front view of the Spinnit FMMH-2 2-Spindle Hydraulic Lift Paper Drill machine designed for efficient paper drilling.

Spinnit FMMH-2 2-Spindle Hydraulic Lift Paper Drill

$7,449.00
pay /mo or Net30*
Brand: Spinnit
Item# FMMH-2
  • With two moveable heads
  • Two spindles with a 2" drilling capacity
  • Powerful hydraulic lift with foot pedal activation
  • Sturdy adjustable back-gauge

ProductDescription

The Lassco Wizer Spinnit FMMH-2 2-Spindle Hydraulic Lift Paper Drill has two moveable heads and features a heavy duty floor standing drill that is designed for production environments and print shops. The FMMH-2 provides a fully automatic hole drilling with a 2" capacity. It is operated by a powerful hydraulic lift that is activated using a foot pedal control. This drill is easy to set up, easy to adjust and easy to operate. All of these things make the Lassco Spinnit FMMH-2 an excellent choice where production speed is essential. Consider adding the Lassco Wizer Spinnit FMMH-2 2-Spindle Hydraulic Lift Paper Drill to you production floor today.

Product Details

  • With two moveable heads
  • Two spindles with a 2" drilling capacity
  • Powerful hydraulic lift with foot pedal activation
  • Sturdy adjustable back-gauge
  • Easy to adjust moveable head design
  • Adjustable hydraulic lift speed
  • Built for ease in operation and maximum production performance

Item Specifications

  • Table size: 15" x 32"
  • Base footprint: 15" x 15"
  • Table height: 35.5"
  • Overall height: 52"
  • Overall width: 32"
  • Overall depth: 26"
  • Max drilling capacity: 2"
  • Spindle Motor: 3/4 HP, 115 Volts
  • Hydraulic Motor: 1/2 HP, 115 Volts
  • Dimensions: 48" x 40" x 60"
  • Part Number: FMMH-2
  • Manufacturer's Warranty: 1 year parts and labor excluding consumables

Resources

  1. Spinnit FMMH-2 2-Spindle Hydraulic Lift Paper Drill Manual Download

Related Categories you might also like

Visit Corner Rounders
Corner Rounders
Visit Spinnit Paper Drill Bits
Spinnit Paper Drill Bits
Visit Spinnit Paper Drills
Spinnit Paper Drills
Visit Spinnit Paper Drill Accessories
Spinnit Paper Drill Accessories

Compare to Similar Double Spindle Paper Drills

  • Model Name
    Model
    Table Size
    Base Footprint
    Table Height
    Max Drilling Capacity
    Motor
    Features
    Dimensions
  • Spinnit FMMH-2.1C
    15" x 32"
    18" x 22"
    36"
    2-1/2"
    Spindle Motor: 3/4 HP, 115 Volts, Hydraulic Motor: 1/2 HP, 115 Volts
    Powerful hydraulic lift with foot pedal activation
    48" x 40" x 63"
  • Spinnit FMM-2
    15" x 32"
    15" x 15"
    35-1/2"
    2"
    3/4 HP, 115 Volts
    Moveable heads and a traversing table allow for extreme versatility
    48" x 40" x 60"
  • Spinnit FMMH 2.1
    15" x 32"
    18" x 22"
    36"
    2-1/2"
    Spindle Motor: 3/4 HP, 115 Volts, Hydraulic Motor: 1/2 HP, 115 Volts
    Sturdy adjustable back-gauge
    48" x 40" x 63"
  • Spinnit FMMH-2
    15" x 32"
    15" x 15"
    35.5"
    2"
    Spindle Motor: 3/4 HP, 115 Volts, Hydraulic Motor: 1/2 HP, 115 Volts
    Sturdy adjustable back-gauge
    48" x 40" x 63"

Questions & Answers

▶
What are the measurement ranges for the adjustable margin depths with this machine? How far from the edge of the paper can a hole be placed? Also what's the adjustable width that the 2 heads can punch together? Can they be 7" apart & 2" from the edge?
Asked by Travis Robinson
Thank you for your question. The FMMH-2 has a 2" throat (Margin) depth. It can also punch holes between the widths of 2"-5" and 2" from the edge of the paper.

Answered by MyBinding
7 years and 11 months ago ago
