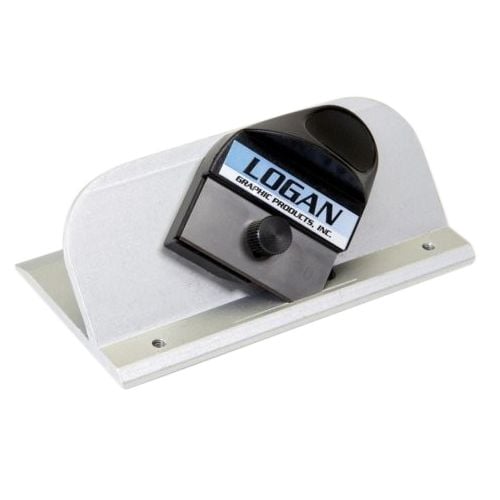

Logan 2000 Push-Style Bevel Handheld Mat Cutter

The 2000 Push Style Bevel Cutter features a retractable blade holder and a start-and-stop indicator. To install the blade on the 2000 Push Style Bevel Cutter, first remove the blade knob and install one Logan 270 blade sharp side down onto the blade holder. Then replace the blade holding knob. To adjust the blade depth on the 2000 Push Style Bevel Cutter, find the blade depth adjustment screw on the bottom of the cutting head. Using a screwdriver, turning the screw clockwise will decrease the blade depth. Turning it counterclockwise will increase the blade depth. See that the blade depth is set so it barely passes through the mat board and only scores into the slipsheet. To bevel-cut an opening on a piece of mat board, first always use a slipsheet. You may find it easier to tape the slipsheet in position onto your work table. Using a ruler, mark out the borders on the back of the mat board and connect the lines. Mark all four borders on the back of the mat board. You may find it helpful to draw an X in the middle of the opening. This reminds you that the cutting head needs to ride on the inside of the lines. Using a suitable straight edge, align it alongside one of the four borders. Rest the bevel cutting head against the straight edge and align the start and stop indicator with the pencil line, pressing down on the straight edge and inserting the blade cut from line to line. Make sure you retract the blade after each cut.Repeat this process for all four sides, and you will have a perfectly beveled mat.

To adjust the blade depth on a push style double cutting head, find the blade depth adjustment screw on the underside of the cutting head. And using a screwdriver, turn the screw clockwise to decrease the blade depth or counterclockwise to increase the blade depth. See that the blade is barely passing through the mat board and only scoring into the slip sheet. To adjust the blade depth on the 302 bevel cutter, find the blade depth adjustment screw on the bottom of the cutting head. Using a screwdriver, turn the screw clockwise to decrease the blade depth or counterclockwise to increase the blade depth. See that the blade is just barely passing through the mat board and only scoring into the slip sheet. To adjust the blade depth on the straight cutter of the 650-1 Framer’s Edge Elite, loosen the blade holding knob and use the blade depth adjustment knob to increase or decrease the blade depth. Then retighten the blade knob. To adjust the blade depth on the bevel side of the 650-1 Framer’s Edge Elite, first loosen the blade holding knob and using the blade depth screw. Turn the screw in or out to increase or decrease the blade depth. Then retighten the blade knob. To adjust the blade depth on the 50008 ply mat cutter, loosen the blade knob and remove the blade holding magazine. Using the neural blade depth adjustment screw, turn the screw clockwise or counterclockwise to increase or decrease the blade depth. Then reinstall the blade holding magazine and retighten the blade holding knob. See that the blade depth is just barely passing through the thickness of the mat board and only scoring into the slip sheet.
