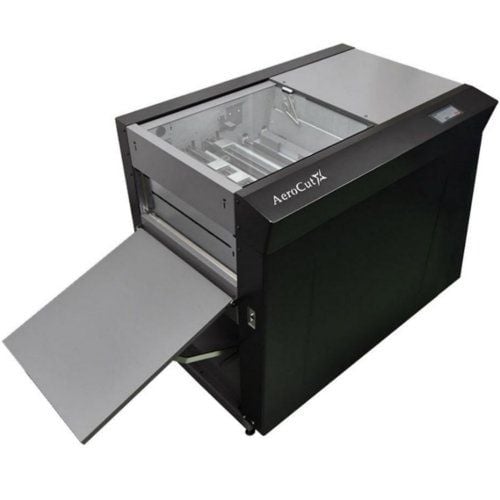

MBM AeroCut X Digital Finishing System for Slitting, Cutting, Creasing, & Perforating
- 0
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
Product Description
Want the best automated digital finishing machine on the market today? Look no further than the new MBM AeroCut X. This impressive finisher is packed with comprehensive features that make operation simple, efficient, and accurate. It was designed specifically for today’s market, meeting the strict demands and capacity requirements for your varying job needs. With the all-in-one AeroCut X from MBM you can make business cards, postcards, greeting cards, tent cards, leaflets, signs, and much more.
Fast finishing, versatile options, customizable setup, easy operation, and groundbreaking features combine to make the MBM AeroCut X one of the most capable finishing systems on the market. It operates as quickly as 24 sheets per minute¹ and can handle sheets up to 14.5” x 29.5” and 400gsm (16pt). Job changeover requires no PC connection, making it very quick and easy. A color 7-inch touch screen offers intuitive controls and fine-tuned accuracy while a patented tri-suction feeding mechanism minimizes adjustments to prevent jams and double-feeds.
Most of the needs of today’s digital market can be finished on the MBM AeroCut X, including prints incorporating barcodes. It has a check function to alert the operator if a mismatch is detected between the print and machine settings. A convenient change function automatically adjusts the system to your settings according to the barcode scanned and the job recall chosen. The AeroCut X also comes with Lytrod Intellicut PC software which offers operators the ability to impose, format, and add personalized information documents.
Product Details
- Intuitive Operation – Intuitive 7-inch color touchscreen allows operators to set job programs and run jobs instantly.
- Robust Blades – Self-sharpening slitters and cutter blade units power through up to 400gsm pages.
- Accurate Finishing – Six rotary slitting knives (plus 2 single slitters & 2 double slitters) and a cutting unit ensure crisp finishing on every run.
- Fine Tuned Precision – Newly designed interface allows for precision tuning of print jobs.
- Perforation Wheels – 2 perfing wheels enable the machine to perforate pages along the feeding direction.
- Instant Adjustable Crease Pressure – 5 levels of crease pressure are adjusted instantaneously by changing the lever.
- Flex Mode – Allows for multiple sized cuts and creases from a single page.
- Patented Feeding Mechanism – Tri-suction feeding mechanism reduces the risk of mis-feeds drastically, preventing paper jams and improving productivity.
- Instant Job Change – Changing from one job to the next takes only seconds, reducing down time dramatically.
- Barcode Reading – Seamless integration of barcodes on the leading edge of prints and job settings.
- Ejection Pause Function – Pauses the first card at eject port allowing the operator to adjust the guide plates.
- Easy Maintenance – Detachable rollers allow clear access to components for east cleaning and maintenance.
Speed based on 2 cuts and 1 crease with 8.5” x 11” paper
* Approximation; may vary due to variations in paper stock, paper coatings, power supply, and operator abilities.
Item Specifications
- Item #: 04MBMAEROCUTX
- Manufacturer: MBM Corporation
- Manufacturer Item #: CU0480
- Model: AeroCut X
- Speed: 24 Sheets/Minute¹
- Sheet Capacity: 4" Stack*
- Paper Weight: 120-400gsm (6-16pt)
- Paper Size: 8.27" x 8.27" to 14.5" x 29.5"
- Manufacturer's Warranty: 1 Year Limited Manufacturer"s Manufacturer's Warranty, Excluding Wearables
- Electrical: 100-120V 50/60Hz
- Dimensions: 30" x 41.8" x 42.3"
- Shipping Weight: 595 lbs.
- Shipping Method: Freight Truck
Demonstration Video
Staff Review
Aerocut X Digital Finisher Review
In today's competitive printing industry, it's essential to have an automatic slitter, cutter, and creaser for finishing your digital print products. You may start intrigued but soon feel overwhelmed at the size of the Aerocut X.. Still, this digital finisher is capable of the work that would have been completed manually on three different machines. Imagine getting rid of three machines and only needing this one to complete the work.
Features:
Integrated with Lytrod's Intellicut Software, the Aerocut X can read barcodes imprinted on the edge of your prints, changing the settings automatically. This makes it easy to switch between tasks quickly and doesn't need to be connected to a computer. If there's a mismatch between the print and machine settings, it will stop and let you know before continuing. This is great for cutting down project waste and reprinting due to errors. You can also choose the optional waste conveyor belt to gather all trimmings in one neat pile to dispose of.
You get precise, consistent cuts, slits, and perforations because of the dedicated cutting unit that features six rotary slitting knives with two single and two double slitters. Thankfully, these slitting knives are self-sharpening, keeping your fingers safer during the process. The maintenance is also easy; the rollers, perforator, and crease units can simply be removed and placed back in when cleaned.
A big, 7" color touch panel makes it easy for you to customize print jobs and get started quickly and easily. The flex mode allows cutting and creasing in various sizes from a single page, helping to get multiple jobs done in one run. It's the perfect choice for digital print finishing tasks such as leaflets, tent cards, greeting cards, postcards, business cards, and more.
Construction:
The Aerocut X is a large, sturdy machine designed for printshops that handle finishing and creasing or perforation. However, if you are a print shop with a higher demand, check out the MBM Aerocut X Pro "big brother”. It has all of the features of the X but features an updated 10" touchscreen, finishes 34 sheets a minute, can perforate sheets multi-directionally, and is equipped with an ionizer that reduces static electricity.
Conclusion:
The Aerocut X is a great option for large print shops that want to combine three manual processes into one machine. Its sharp, robust rotary blades can handle cardstock sheets (up to 16pt.) With an automatic slitter, cutter, and creaser, you can finish large print jobs with just the push of a button. The large, full-color touchscreen is easy for anyone to use. You can jump between jobs like cutting business cards to perforating event tickets to cardstock creasing automatically when it scans the printed barcode before starting the job.
—
