Product Description

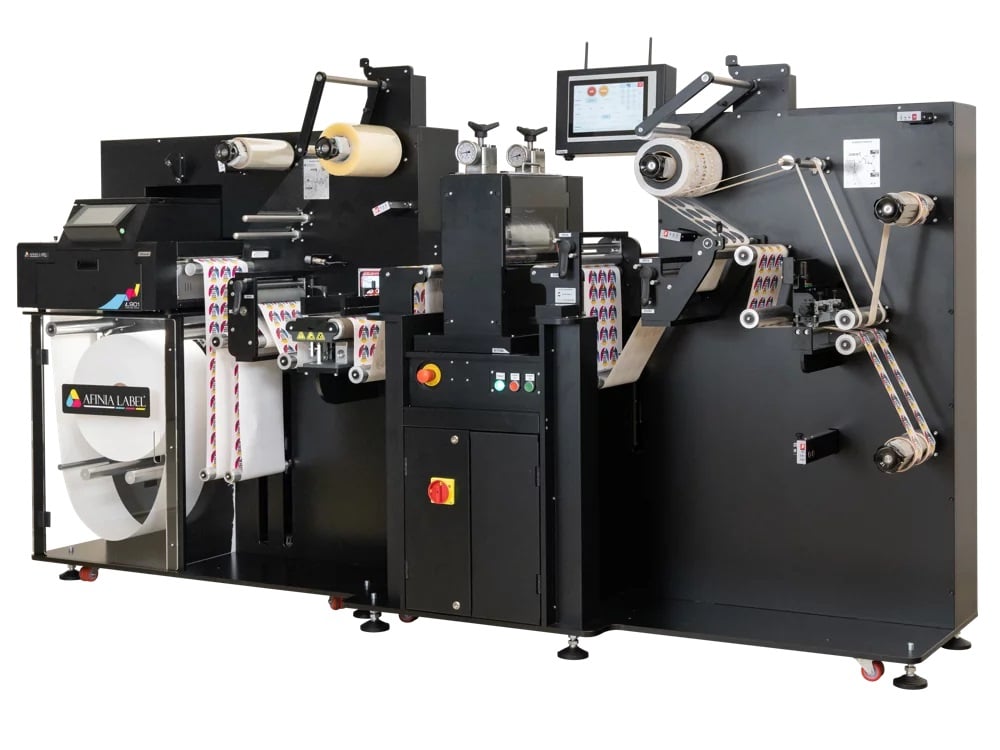

Introducing the Afinia Label DLP-2200 Digital Label Press with Inline Rotary Finishing (Includes L901 Printer) – a cutting-edge solution for your label printing needs. This high-speed digital label press sets the bar in its class, delivering impressive printing, die-cutting, and finishing capabilities at a remarkable speed of up to 60 feet per minute. This user-friendly workhorse is designed to simplify your operations, eliminating the need for prior press experience. Its intuitive interface and automatic tension controls minimize operator intervention, ensuring a seamless printing process. The built-in lamination system guarantees durable labels with minimal noise, adding a touch of professionalism to your products. Featuring an 18-inch magnetic cylinder that accommodates affordable steel dies, the DLP-2200 facilitates swift job changes, enhancing your workflow efficiency. Experience the perfect blend of speed and simplicity with the Afinia Label DLP-2200 – your go-to solution for top-notch label production. Elevate your business with the efficiency and versatility this digital label press brings to the table.
Product Details

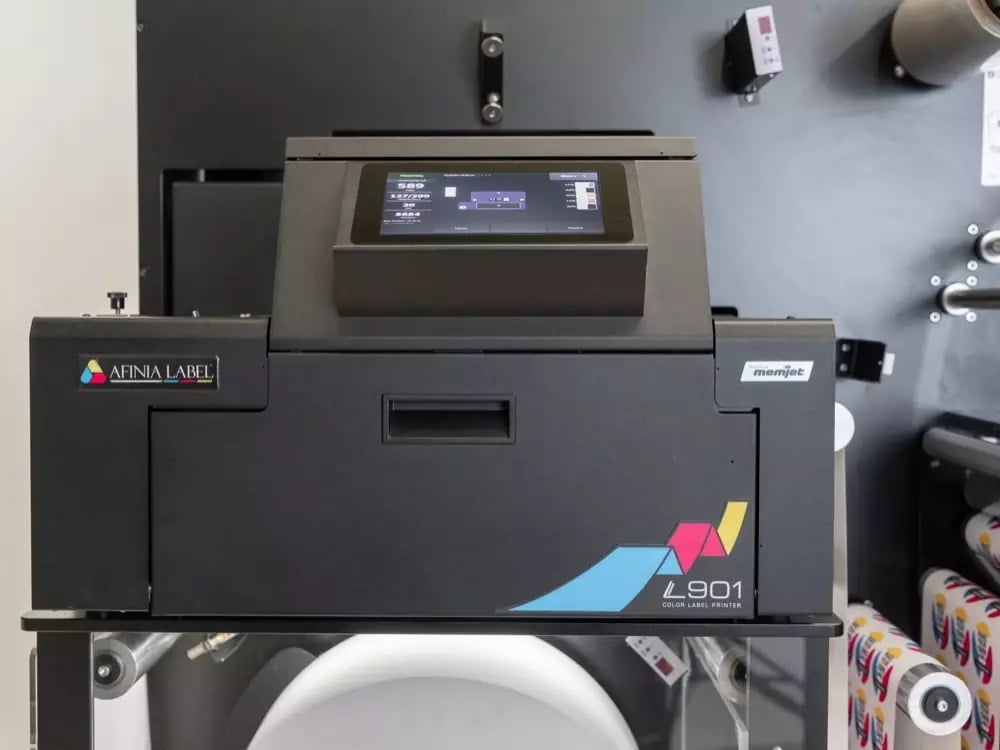

High-Volume Label Production

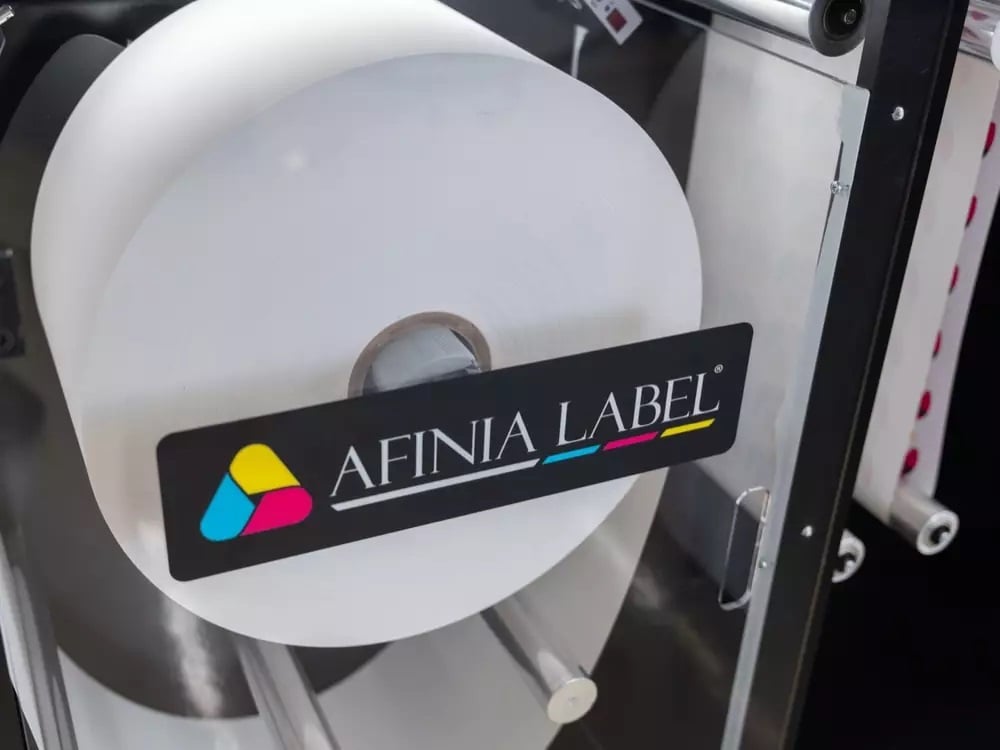

Equipped with the L901 Digital Label Printer, our DLP-2200 machine can efficiently produce over 25,000 full-color 3x4-inch labels per hour. Bringing label production in-house eliminates the need for outsourcing, resulting in faster turnaround times, enhanced control and flexibility, and significant cost savings. The DLP-2200, with its large roll media capacity of 18.1 inches (460mm) outer diameter, is an ideal label press for high-volume production.
Effortless Operation
Operating the DLP-2200 requires no prior press experience. Its intuitive interface simplifies machine status and job controls. Additionally, automatic tension controls reduce the need for operator intervention, minimizing the requirement for a highly skilled press operator.

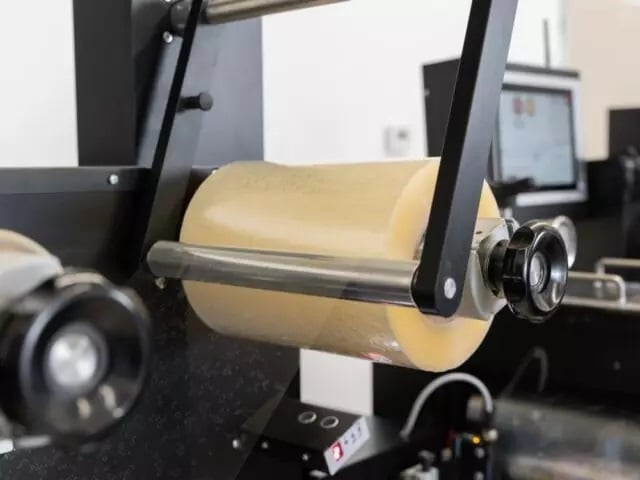

Integrated Lamination
Featuring a built-in lamination system, the DLP-2200 allows for noise-minimized inline lamination, enhancing label durability. A sound-dampening roller reduces noise from self-wound lamination films. The option to use quiet-release laminate with a liner is also available through the liner rewind mandrel.
Quick Setup & Media Changeover
The DLP-2200's straightforward paper path facilitates fast and easy job setup. Its splicing table enables swift media changeover, crucial for those needing to produce labels using different materials. This reduces downtime and boosts productivity.

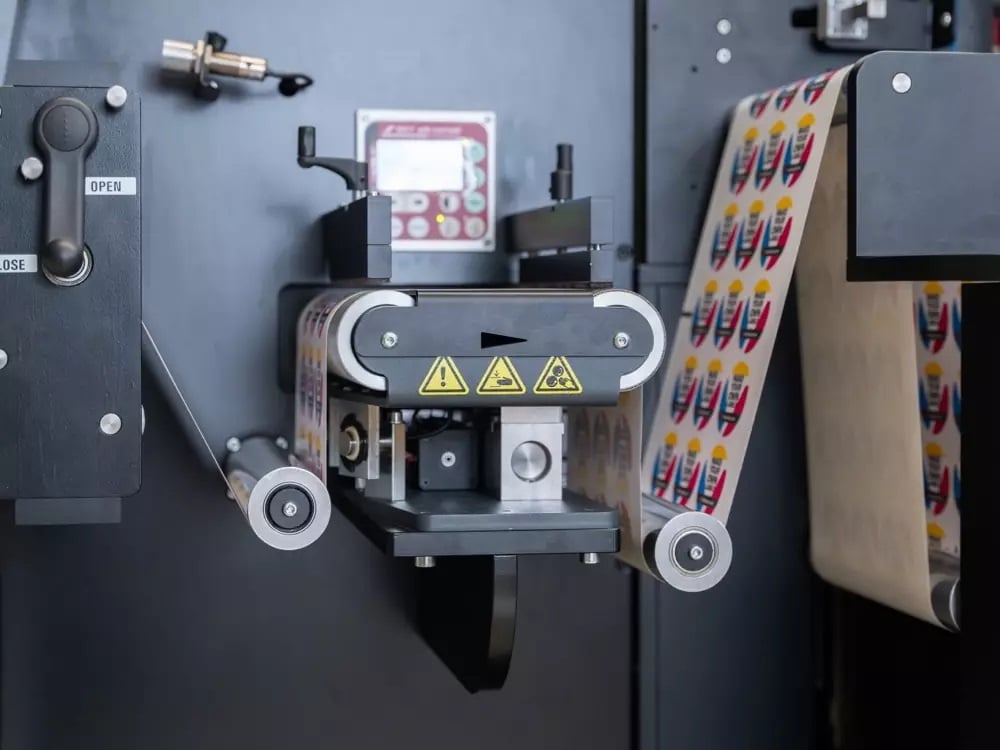

Digital Web Guide
The DLP-2200's digital web guide ensures precise cutting and clean rewind, facilitating the production of high-quality labels. This feature accurately positions the die, ensuring precise label cuts.

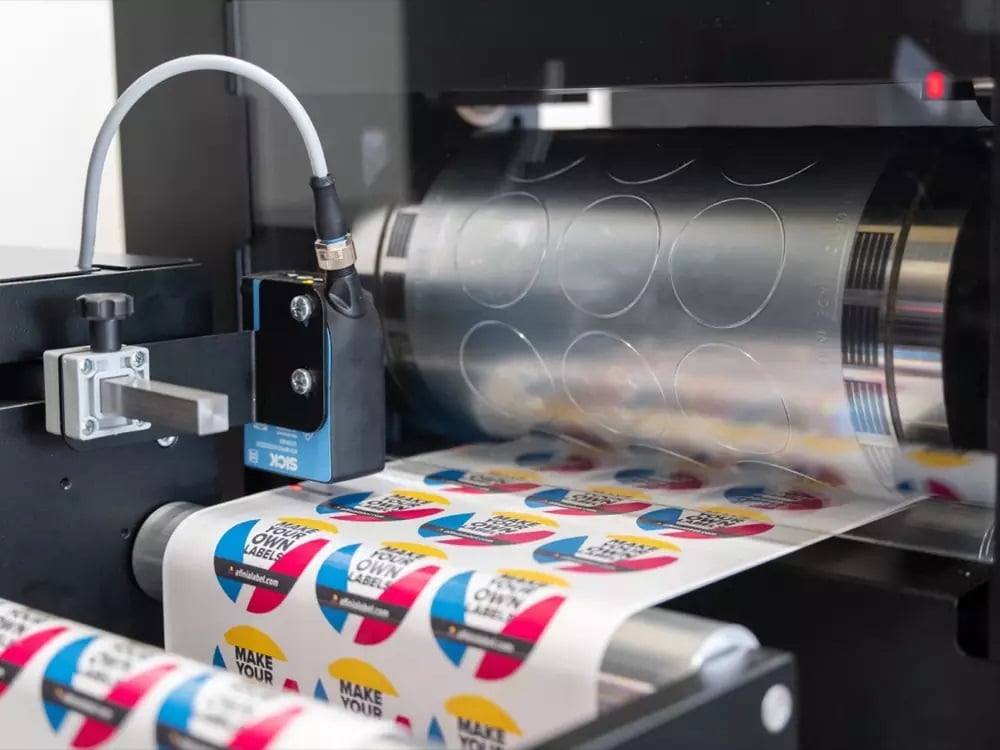

Adaptable Die Options

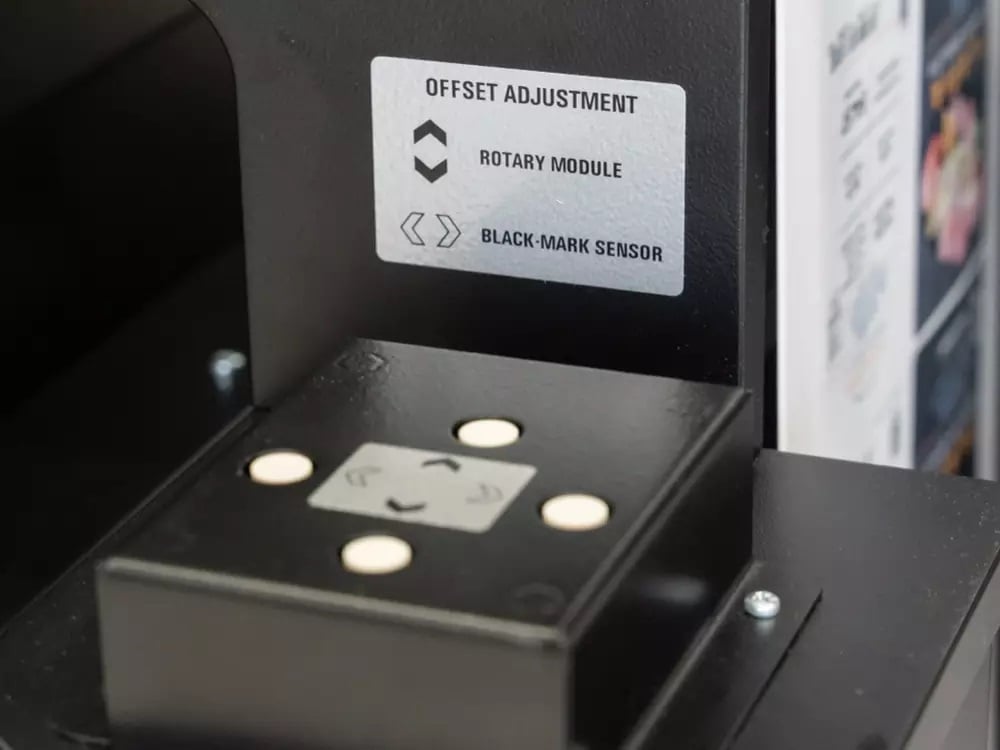

With an 18-inch magnetic cylinder, the DLP-2200 accommodates affordable flexible steel dies, allowing for quick changeovers between jobs. Easy die alignment simplifies the process of aligning dies with registration marks.

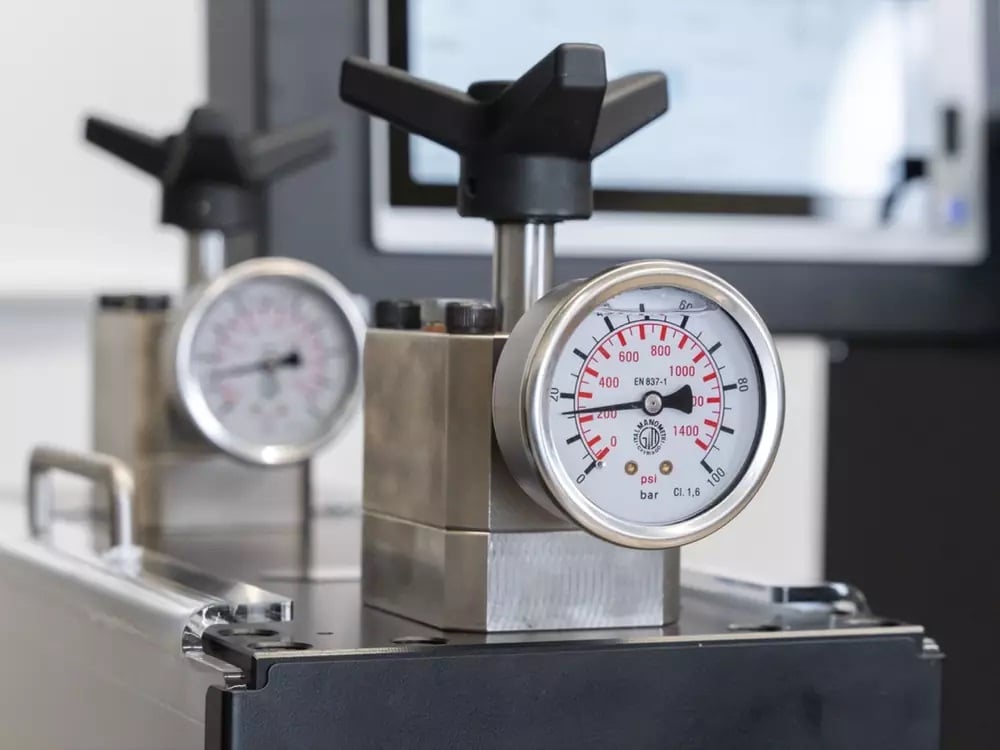

Pressure-Controlled Precision
Pressure-accurate gauges on the DLP-2200 provide precise die pressure control, ensuring accurate and consistent label cutting for high-quality results.

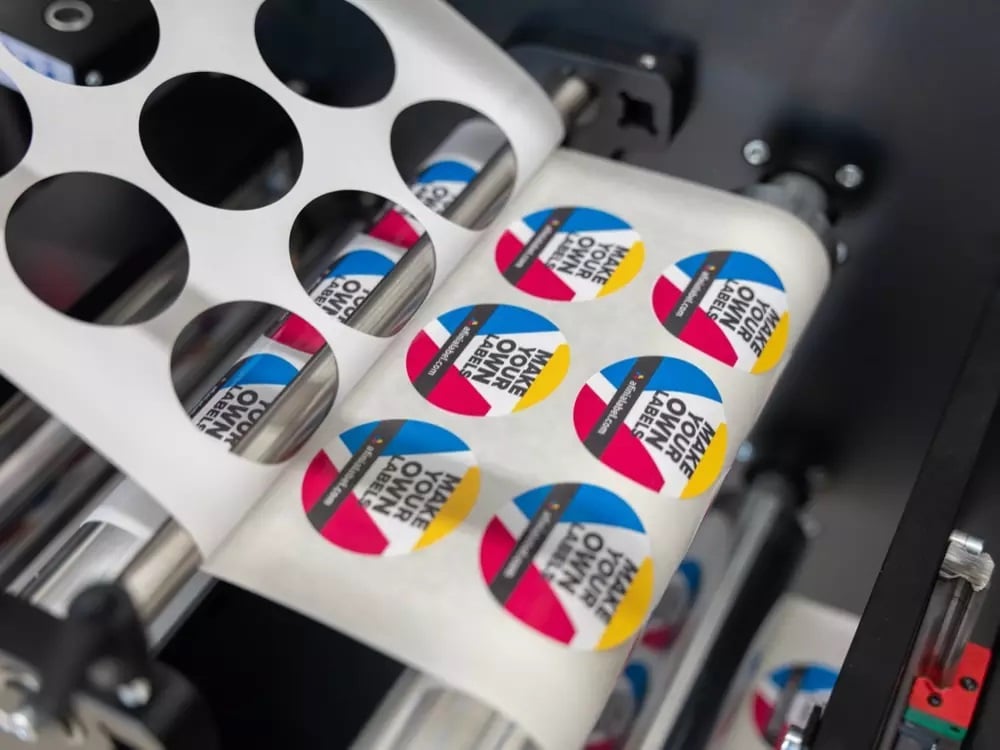

Efficient Waste Removal
The DLP-2200 offers waste removal options for different shapes, streamlining the process of removing waste from labels. This feature enables quick and effective weeding, leaving labels clean and ready for application.
Inline Slitting
The inline slitting feature on the DLP-2200 facilitates the separation of narrow rolls of labels, reducing the need for a separate slitting process.

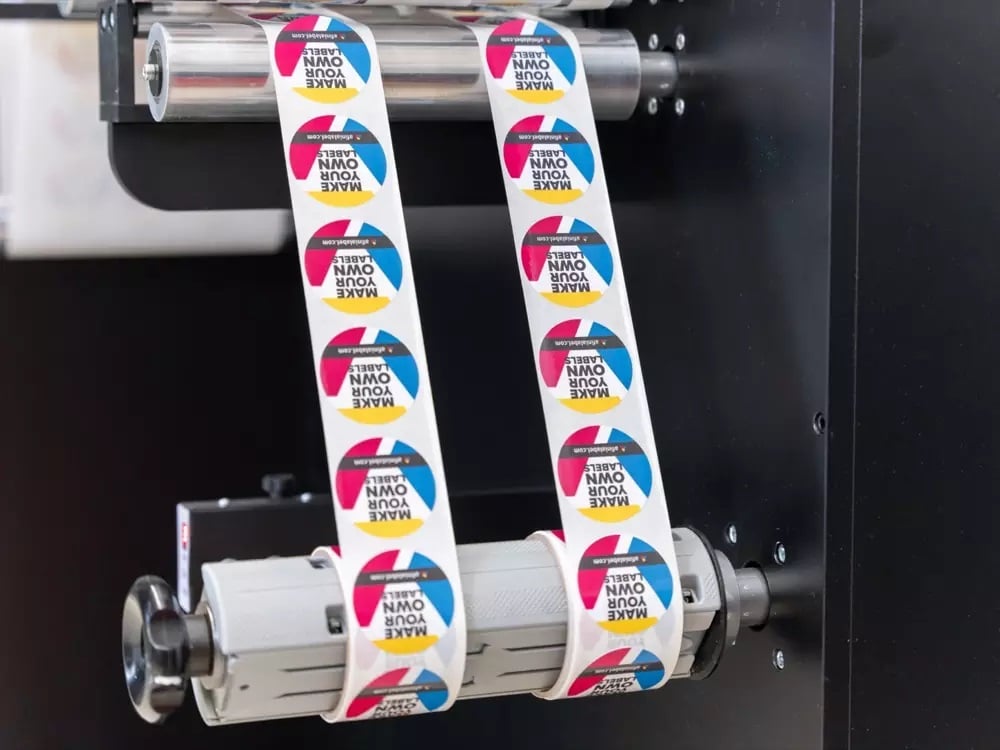

Split-Mandrel Rewind
With a split-mandrel rewind feature, the DLP-2200 produces clean, tight, and consistent finished rolls that are easy to remove and ready for application.
Specifications
- Print Speed: 6" to 12" per second (IPS) / (9m to 18m per min)
- Print Quality: 1600 DPI full-color output
- Web Width: 3.94" (100mm) to 9" (229mm)
- Max Print Width: 8.5” (216mm)
- Media Capacity: 18.1" (460mm) max outer diameter (approximately 1000 meters)
- Core Sizes: 3" (76mm)
- Web Guide: Digital automatic (no collars)
- Max. Laminate/Liner OD: 9.84" (250mm)
- Laminate: Self-wound or supported laminate (on a liner). Liner removal mandrel included
- Cutting Dies: Flexible steel; from 5.5" (140mm) to 14.17" (360mm)
- Max. Diecutting Width: 8.5" (216mm)
- Max. Diecutting Length: 14.17" (360 mm)
- Die Head Lateral adjustment: 1.97" (50mm)
- Registration Sensor / Mark: Laser / 0.2" x 0.2" (5mm x 5mm)
- Max. Finished Label Rewind: 15.74" (400mm)
- Max. Waste Matrix Rewind: 11.8" (300mm)
- Razor Slitter Assembly: 4 inter-label knives
- Razor Slitter Lateral Adjustment: 0.47" (12mm)
- Dimensions: 111.5" (283 cm) W x 65.35" (166 cm) H x 28.35" (72 cm) D
- Frame: 0.4" (10mm) solid aluminum
- Safety: Emergency stop button
- Loop: Photoelectric distance sensor
- Power: 220V – 6A / 110V – 12A
- Weight: Total 1474 lbs (669kg) = Printer/Unwind 518 lbs (235kg) + Rotary/Rewind 956 lbs (434kg)
- Control: PCB. Inverter, Encoder, Touchscreen control panel
