Product Description

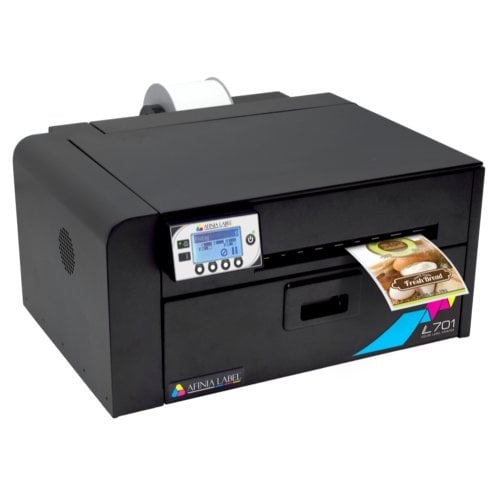

This Afinia Label L701 Color Label Printer with Memjet Print Head allows you to print high-impact, full-colour labels at a lower cost. This label printer is a great option for small- to mid-sized companies looking to print their own full-color labels in house. The Memjet-powered stationary printhead provides speed, industrial reliability, and stunning image quality. With L701, you can print at up to 1600 x 1600 dpi for vivid, eye-catching labels. By using CMYKK, this printer offers exceptional color and rich blacks, giving you the ability to print with excellent contrast. The L701 has a print speed of up to 12 m/min (8 IPS), and works with label rolls or fan fold media. This label printer is compatible with a wide range of paper, polyester, polypropylene, and vinyl label stocks. The L701 label printer holds five large 150mL ink cartridges to support mid to long runs while reducing per-label costs. If you are looking for a professional performance color label printer at a lower cost, then this Afinia Label L701 Color Label Printer is the perfect match for you.
Product Details
- Print speed of up to 12 m/min (8 IPS).
- Compact form factor.
- Affordable cost without compromising quality.
- Works with label rolls or fanfold media.
- Professional output - crisp images and text.
- Media Compatibility. Use fanfold or blank media rolls of up to 6 inches in outside diameter (Works with a wide range of inkjet-coated materials and finishes).
- Fast & Affordable. High-speed, professional label printing with a low purchase price.
- Industrial & compact design. Rugged build quality, yet small enough for use in tight spaces.
- Professional image quality & resolution. Exceptionally crisp text, barcodes, and images with vibrant colour and rich blacks.
Specifications
- Printer
- Print method: Memjet Waterfall Printhead Technology 11 Integrated Circuit (IC) Chips - 70,400 nozzles (6,400 per IC Chip)
- Ink type: Dye
- Print resolution: Up to 1600 x 1600 dpi
- Print speed: Up to 203mm (8") per second
- Print width: 216mm (8.5")
- Media types: Compatible with a wide range of paper, polyester, polypropylene, and vinyl label stocks
- Media
- Width: 50.8mm-216mm (2"-8.5")
- Thickness: Minimum 0.13mm (0.005") Maximum 0.3mm including liner (0.01")
- Core diameter: Requires 76.2mm (3") cardboard core
- Media sensors: Gap, continuous, black mark
- Die-cut label gap: Minimum 3.0mm (0.125") Maximum 8.0mm (0.3")
- Black mark size: (3 mm wide, 25.4 mm long on left)
- Maximum die-cut label length: 304.8mm (12")
- Maximum continuous print length: 1016mm (40")
- General
- Interfaces: USB, TCP/IP (Manual IP configuration or DHCP), GPIO available for external device control
- Operating system: Windows 7, 8, and 10 (32 and 64 bit)
- Barcode font: 1D Barcode at least Grade B (Code39) with 10mils bar width
- Two-dimensional code printing: 2D Barcode at least Grade B (PDF417) with 10mils cell size
- Operating temperature: 15°-35° C (59°-95°F) at RH 20-80%
- Storage temperature: -5°-50° C (23°-113°F) at RH up to 85%, non-condensing at 65°
- Dimensions - w/ unwinder: 549mm (21.6") W, 679mm (21.6") D, 285mm (11.2") H
- Dimensions - printer only: 510mm (20.1") W, 385mm (15.2") D, 285mm (11.2") H
- Weight - printer only: 30kg (66 lbs.)
- Rated voltage: AC 110V - 220V
- Rated frequency: 50 - 60Hz
- Manufacturer's Warranty: One year
