Product Description

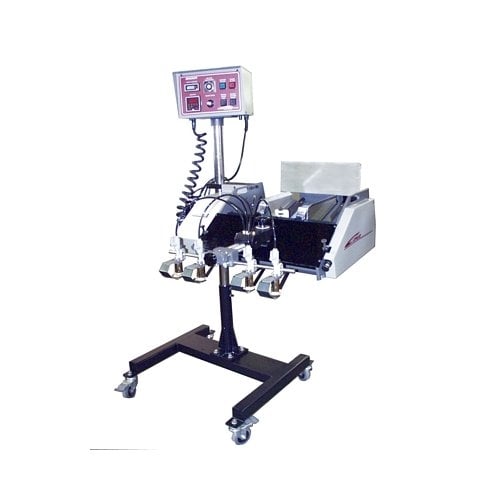

The 21" Brackett Chipur is an automatic chipboard inserter for roll-to-sheet presses. It replaces hand inserting – or in some installations, take the place of an expensive, cumbersome, limited application inserter. This chipboard inserter is very easy to use. After a quick set-up, you simply load the hopper. Chipur counts the sheets and inserts chipboard at the proper interval… automatically. The Brackett Chipur feeds chipboard into the lapstream delivery (shingled sheets) of your web press at precise, predetermined intervals… as frequently as every 25 sheets. It utilizes a series of vacuum separator units which lift up printed sheets in the delivery stream momentarily to allow chipboard insertion. This chipboard inserter installs and adjusts in minutes to fit the height of your press – a Diddle or other popular roll-to-sheet press. If you are looking for an automatic and economical chipboard inserter for pad backs, separator sheets, etc, then the Brackett Chipur 21" Automatic Chipboard Inserter is the perfect match for you.
Product Details
- Automatic chipboard insertion for roll-to-sheet presses.
- Feeds chipboard into the lapstream delivery (shingled sheets) of your web press at precise, predetermined intervals as frequently as every 25 sheets.
- Utilizes a series of vacuum separator units which lift up printed sheets in the delivery stream momentarily to allow chipboard insertion.
- Installs and adjusts in minutes to fit the height of your press - a Diddle or other popular roll-to-sheet press.
- Replaces hand inserting - or in some installations, take the place of an expensive, cumbersome, limited application inserter.
- Eliminates bottlenecks and turns your bindery into a smooth, trouble-free profit center.
- Comes standard with Count Sensor, Batch Counter, Heavy Duty Motor & Clutch, and Roll Around Stand
- Popular Insertion Applications:
- Pad back stiffeners
- Package stabilizers
- Sheet count markers
- Cover sheets
- Other placements
Specifications
- Divider Size (W x L): min: 5" x 8" (127 x 203 mm) / max: 21.5 x 22" (546 x 559 mm)
- Thickness: min: .010" (.254 mm) / max: .187" (4.74 mm)
- Machine Weight:
- Control Head: 17 lbs. (7.7 kg)
- Inserter Head: 142 lbs. (64.5 kg)
- Mobile Stand: 91 lbs. (41.3 kg)
- Insert Operation:
- Manual (Set-Up) - Single insertions or Multiple Insertions
- Automatic - Adjustable Speed, Adjustable Insert Sequence
- Insert Frequency: Minimum - Every 25 sheets @ 850FPM (press Speed)
- Integral Vacuum Supply: 1/6HP Diaphragm Pump
- Frame (Adjustable Height-Fits Press Conveyor Heights):
- Minimum: 21 in. 53 cm
- Maximum: 42 in. 107 cm
- Feed Section:
- Manually Top Loaded Hopper
- Friction Fed From Bottom
- Power Requirements: 120VAC 50-60HZ 840 VA (watts)
- Optional Electrical: 240VAC 50-60HZ 840 VA (watts) - Requires optional transformer.
