Product Description

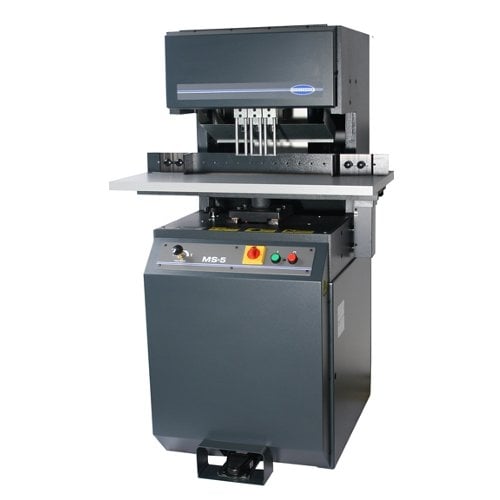

The Challenge MS-5 Multi-Spindle Paper Drill has a maximum of five easily adjustable heads and can handle multiple various hole patterns in one single stroke. The MS-5 Paper Drill has a solid cast-iron construction and a powerful 1.5 hourse power motor that drives the drilling heads. Its easily accessible control panel and powerful hydraulic operation are designed to reduce operator fatigue and increase job production. With Challenge MS-5 Multi-Spindle Paper Drill, you have assurance that you made the right decision.
Product Details
- Side guide adjustment.
- Backgauge adjustment.
- Easy drill length adjustment.
- 2"/ 5.1 cm hollow drill bits available in 13 sizes.
- 2-1/2"/ 6.4 cm hollow drill bits available in 4 sizes.
- Hollow drill bits also available with teflon coating.
- Cast iron and steel construction.
- Three drill heads and drilling blocks standard (Two & four head options for European applications).
- Two backgauge filler blocks.
- Manual drill sharpener.
- Chip disposal bag.
- Hydraulic power, foot pedal activated.
- Automatic table return.
- Up to 5 holes in a single stroke.
- Set-up changes are quick & simple.
Specifications
- Number of Drill Heads: 2 to 5
- Drill Sizes Available (2" capacity): 1/8" to 1/2" / 3 to 13 mm
- Drill Sizes Available (2-1/2" capacity): 1/4" to 1/2" / 6 to 13 mm
- Center to Center Distance Maximum: 15" / 38 cm
- Center to Center Minimum (standard): 1-7/8" / 48 mm
- Center to Center Minimum (optional narrow heads): 1-3/8 / 35 mm
- Maximum Drilling Capacity: 2-1/2" / 63 mm
- Strokes per Minute (adjustable): Up to 18
- Backgauge Adjustment: 0 to 5" / 0 to 13 cm
- Vertical Adjustment of Individual Heads: 1/4" / 6 mm
- Table Size: 17-3/4" x 34" / 45 x 87 cm
- Table Height: 37" / 94 cm
- Overall Height: 56" / 142 cm
- Floor Space Needed: 36" x 36" / 92 x 92 cm
- Compatible Supplies and Accessories: Narrow Drill Heads
- Electrical:
- Standard
- 1 Phase, 60 Hz, AC. Pump: 1/2 HP. Spindle Motor: 1-1/2 HP.
- 208/230 Volts, 18 Amps (service size 30 Amps)
- Optional
- 3 Phase, 50 Hz, AC. Pump: 1/2 HP. Spindle Motor: 1-1/2 HP.
- 208/230 Volts, 12 Amps (service size 20 Amps)
- Standard
- Manufacturer's Warranty: 3 Years Manufacturer Manufacturer's Warranty
