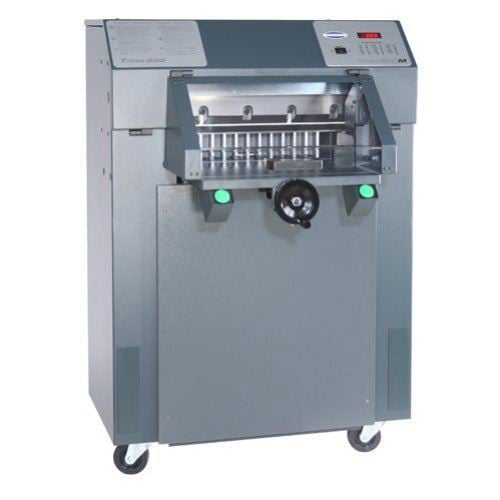

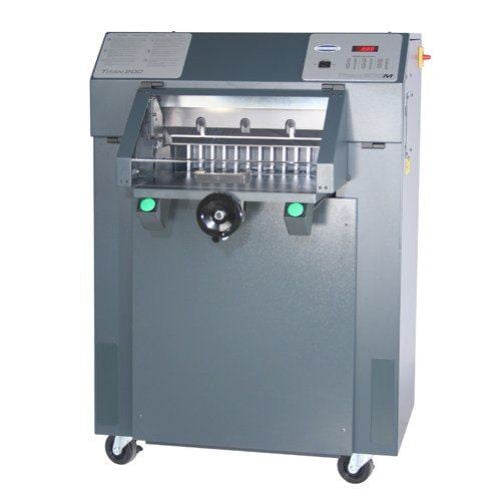

Name: Challenge Titan 200BC 20" Hydraulic Paper Cutter with Tilt Shield
Brand: Challenge
SKU: CH-TITAN200BC

We're sorry, but we no longer offer this item.

Call us at 1-800-944-4573 for personalized recommendations
check out these similar items that may be a good fit

Challenge Titan 200BC 20" Hydraulic Paper Cutter with Tilt Shield

We're here for you!

Please call
1-800-944-4573
for help finding a comparable solution

Need Shopping Advice?
Call - (800)944-4573

Item# CH-TITAN200BC

20" Cutting Width, 3-1/4" Clamp Opening
Hydraulic Clamping & Cutting
Adjustable Clamp Pressure
Line-Light Cut Position Indicator

Product Description

The Challenge Titan 200BC Hydraulic Paper Cutter with Tilt Shield is a heavy duty hydraulic paper cutter with a manual adjustable backguage and an automatic hydraulic clamping mechanism. The Challenge Titan 200BC offers a twenty inch cutting length and a 3-1/4" clamp opening. The Titan 200BC is manufactured to the highest safety standards available and offers two handed cut operation, a convenient safety shield and a plexiglass rear shield cover. You can even add side tables to expand your work area when cutting. Check out the Challenge Titan 200BC Hydraulic Paper Cutter with Tilt Shield for yourself today.

Product Details

Cutting Width: 20”/508 mm

Backgauge Control: Manual

Clamp Opening: 3-1/4”/83 mm

Clamping Force:

Minimum 1,250 lbs/563 daN
Maximum 2,500 lbs/1,125 daN

Min Cut (w/out false clamp plate): 1/2”/13 mm

Min Cut (with false clamp plate): 1-7/8”/48 mm

Maximum Cut Depth: 20”/508 mm

Table:

In Front of Knife 16”/406 mm
Behind Knife 20”/508 mm

Table Height: 36”/914 mm

Overall Width: 36”/914 mm

Overall Length: 50-7/8”/1300 mm

Overall Height: 52-1/4”/1330 mm

Will pass through door:

(assembled) 36-1/4”/920 mm
(table/treadle/front shield out) 29”/737 mm

Actual Machine Dimensions: 51"x 36"x 52.25"

Actual Machine Weight: 755lbs

Shipping Length: 64"

Shipping Width: 44"

Shipping Height: 62"

Shipping Weight: 980lbs

Electrical UL/CUL Listed & CE:

Standard: 3/4 H.P., Single-Phase, AC, 60 Hz, 120 Volt, 12 Amps, Service size 15 Amps. Power cord included. Requires Receptacle Type: NEMA 5-15R
Optional: 1-½ H.P., Single-Phase, AC, 60 Hz, 208/230 Volts, 12 Amps, Service size 15 Amps. Power cord included. Requires Receptacle Type: NEMA 6-15R or 6-20R.

Specifications

Key Benefits/Features:

Hydraulic cutting & clamping
Easy to read LED digital display
Maintenance free red LED cut line light
Hydraulic motor runs only during cutting cycle
Lockable heavy duty casters for portability
Steel & cast iron construction
Plugs into standard 110V electrical socket
1-year Manufacturer's Warranty

Safety/Features:

UL/cUL listed and conforms to CE and ANSI B65.3 safety specifications
Safety dual-cut buttons to activate the cutting cycle
Rear table safety cover
Cutting area protection - standard safety shield or light beam curtain option

Included:

(1) standard knife
(3) plastic cutting sticks
(1) jogging aid
(1) manual
(1) tool kit
(1) knife change safety holder assembly

Replacement Blades and Accessories

Product Name

Item Number

Challenge 20 Multi 2020 Titan 200 Replacement Blade

JH-31780

Challenge 20 Multi 2020 Titan 200 High Speed Steel Blade

JH-31780HSS

Premium 20" Cutting Stick for Challenge 20, Titan 200, Multicut 2020

JH-CS4075

Standard 20" Cutting Stick for Challenge 20, Titan 200, Multicut 2020

JH-CS4168

Red Premium Cutting Stick for Challenge 20, Titan 200, Multicut 2020

JH-CS5910

Staff Review

Challenge Titan 200M Electric Paper Cutter Review

Heavy-duty paper cutters are very handy when you need to cut a lot of paper quickly. One of the better ones available is the Challenge Titan 200M. Here's what it can offer you. Check it out....

The Titan 200BC is perfect for both large and small sheets of paper. This device can cut paper that's up to 20 inches wide, so you'll be able to process all the popular sizes of paper including letter, legal, and tabloid. The table is very roomy (there are 16" of space in front of the blade and 20" behind it) so you'll have a lot of workspace
This machine comes with a false clamp plate. When you use it, you'll be able to cut 3 inches' worth of paper which is about 500 sheets. If you choose not to use it, you can slice through a 3.25-inch stack. It just depends on how much pressure you want placed on the sheets. All clamping is hydraulic.
The Titan 200BC's backgauge is controlled manually. However, there is an LED display so you'll be able to see its position. There's also a light that will indicate where your paper will be cut so you can re-align it if necessary.
Safety is important when using any cutter. Luckily, the Titan 200BC comes with enough features to keep you safe including a plexiglass rear safety shield. You also need to use two hands when operating this machine so your hands will be far away from the blade.
This is one of the most energy efficient cutters available. The motor will run only when you're actually cutting so you'll be able to conserve power and lower your energy costs.
There are a number of options available for the Titan 200BC including side tables and a foot pedal for mechanical clamping. There's also a 1.5-horsepower motor available. (The device comes with a .75-HP motor.) Unfortunately, the options are sold separately and are pretty pricey so you'll need to consider if they're worth it or not.
The Titan 200BC is one of the largest electric paper cutters available. It measures 53" (height) x 36" (width) x 49.625" (length) so it looks pretty intimidating. (It's not, really.) This device weighs 755 pounds so it comes with casters to make moving it around less of a chore.
Finally, this trimmer is incredibly durable thanks to it being made out of steel and cast iron. However, Challenge has given this cutter a one-year warranty just in case the unexpected happens.

The Challenge Titan 200BC is a terrific paper cutter and it would be great for just about any workplace needing a heavy-duty device. This machine offers an impressive cutting capacity as well as the ability to slice through hundreds of sheets at a time. You'll find that using this trimmer is very easy and safe, thanks to features such as the manual backgauge and the plexiglass safety shield. It's disappointing that there are extras for this product that are sold separately. You may want to give the cutter a try before investing in them. Overall though, the 200M is great and worth the money, so take a look at it today.
