Product Description

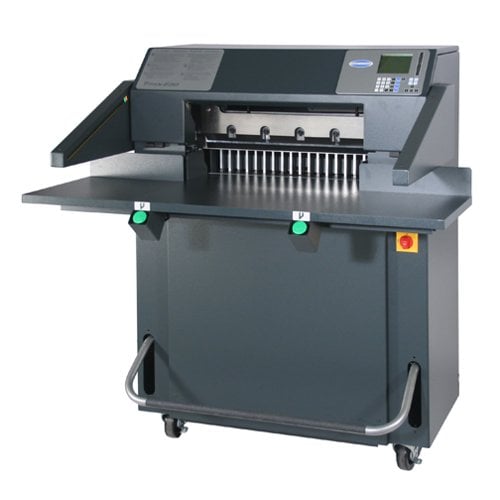

This Challenge Titan 230 23" Hydraulic Programmable Paper Cutter has a solid cast iron and steel construction for maximum durability. Its industry-exclusive UHMW gib surfaces, composite bushings, and a one-inch thick solid metal table require virtually zero maintenance for years of trouble-free operation. The Titan 230 has a maximum cutting width of 23" and a maximun cut depth of 24". The Titan 230 meets the toughest safety standards in the industry today. It has category 4 light safety curtains, enclosed rear table, two-hand timed non-repeat cut buttons, and a knife safety latch that made this paper cutter UL and CE certified. Its intuitive menu-driven controller allows variable mode data entry with up to 99 jobs / 9,801 total cut position storage. This Challenge Titan 230 23" Hydraulic Programmable Paper Cutter has self-diagnostics and error indication feature that walk the operator through any potential difficulties.
Product Details
- Key Benefits/Features:
- User-friendly menu-driven LCD screen, fully programmable backgauge control with 99 channels, 9,801 total cut memory
- Variable mode data entry (fraction, decimal, metric)
- Automatic fraction to decimal calculation
- Electronic Clamp Pressure Control - (programmable per cut with TC option)
- Maintenance free red LED cut line light
- Hydraulic cutting & clamping - motor runs only during cutting cycle
- Rugged steel & cast iron construction
- Lockable heavy duty casters for portability
- Able to turn 12" x 18" and A3 paper sizes in mouth of cutter
- 2-year Manufacturer's Warranty
- Safety/Features:
- Conforms to CE and ANSI B65.3 safety specifications
- Two-hand push button control of cutting cycle with timed, non-repeat device
- Cutting area protection - light beam safety curtain
- Independent mechanical foot pedal clamping
- Fully enclosed sheet metal rear table safety cover
- Optional ergo-touch cut buttons reduce operator fatigue
- Standard Equipment Included:
- (1) false clamp plate
- (2) high speed steel knives
- (3) plastic cutting sticks
- (1) jogging aid
- (1) manual
- (1) tool kit
- (1) knife change safety holder assembly
Specifications
- Cutting Width: 23”/584 mm
- Clamp Opening: 3-1/4”/83 mm
- Clamping Force:
- Minimum 1,250 lbs/563 daN
- Maximum 2,500 lbs/1,125 daN
- Min Cut (w/out false clamp plate): 1/2”/13 mm
- Min Cut (with false clamp plate: 1-7/8”/48 mm
- Table:
- In Front of Knife 24-1/4”/616 mm
- Behind Knife 24”/610 mm
- Table Height: 36”/914 mm
- Side Tables (L x W): 16” x 13-1/2”/ 406 mm x 343 mm
- Overall Width: 50”/1270 mm
- Overall Length: 66”/1680 mm
- Overall Height: 53”/1350 mm
- Will Pass Through Opening:
- (side tables off) 43”/1090 mm
- (side tables, light beams & power switch out) 39-1/4”/1000 mm
- (table/treadle/light beams out) 29”/737 mm
- Net Weight (approx.): 1,000 lbs/454 kg
- Shipping Weight (approx.): 1,250 lbs/567 kg
- Electrical UL/CUL Listed & CE:
- 1-3/4 H.P., Single-Phase, AC, 60 Hz, 208/230 Volts, 12 Amps, Service size 15 Amps. Power cord included. Requires Receptacle Type: NEMA 6-15R or 6-20R.
- Optional Motor: 1-¾ H.P., Single-Phase, AC, 50 Hz, 230 Volts, 10 Amps, Service size 15 Amps.
Replacement Blades and Accessories
| Product Name | Item Number |
| Challenge Titan 230 Replacement Blade - 42007 | JH-31930 |
| Challenge Titan 230 High Speed Steel Replacement Blade - 42007 | JH-31930HSS |
| Standard 23" Cutting Stick for Challenge Titan 230, 193 Diamond - 12pk | JH-CS4175B |
| Red Premium 23" Cutting Stick for Challenge Titan 230, 193 Diamond | JH-CS5917B |
