Product Description

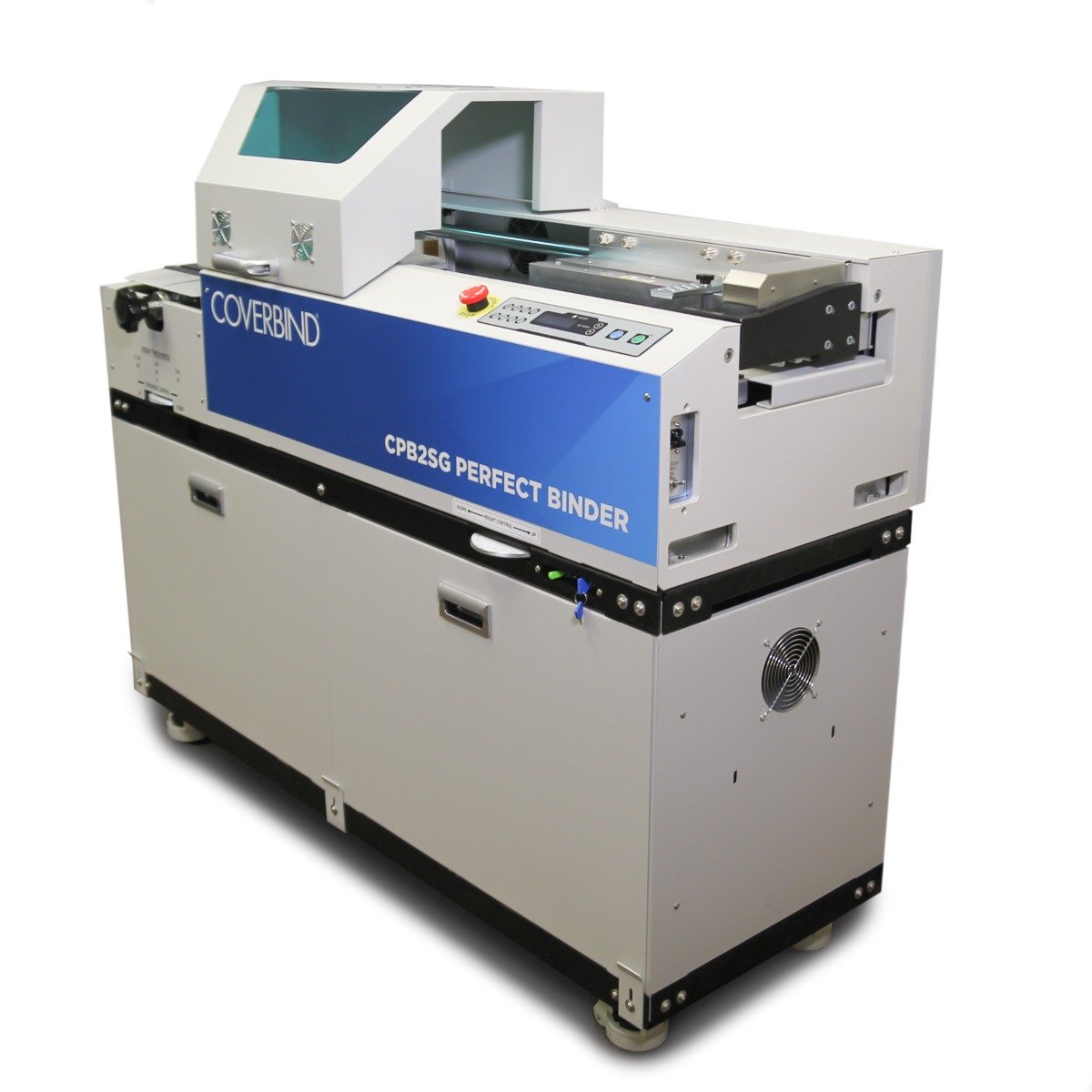

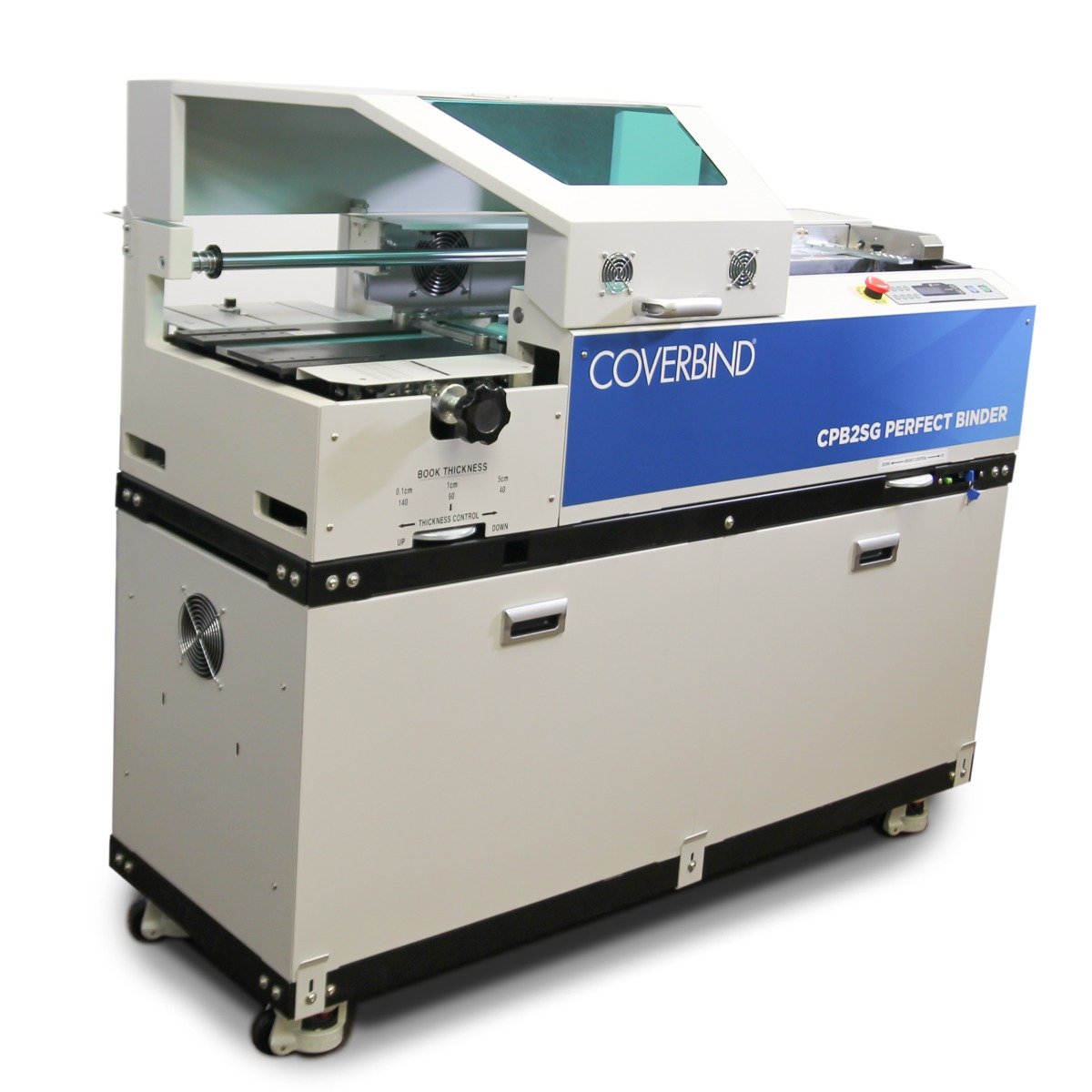

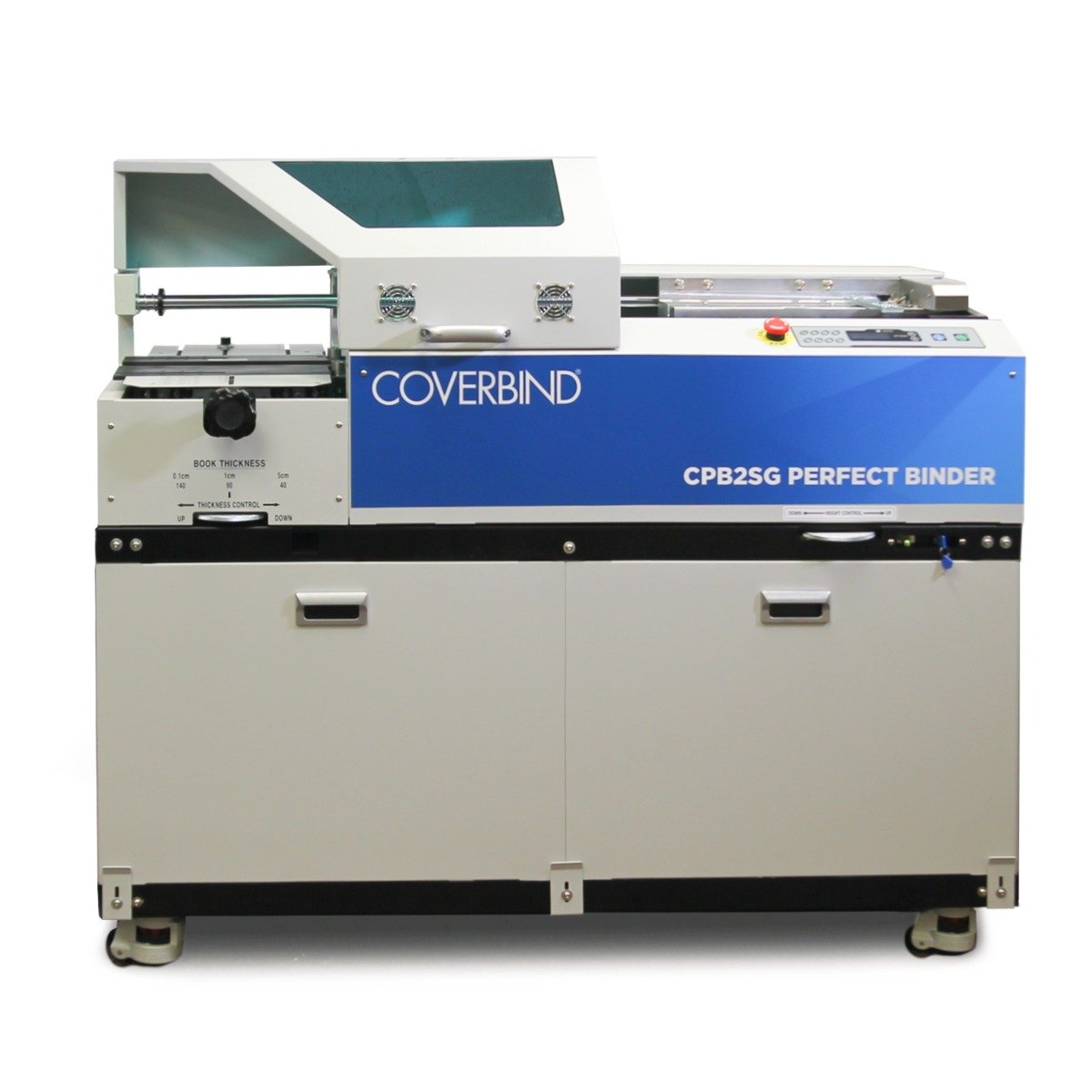

Start binding premium soft cover books, novels, manuals, and more, on-demand with the Coverbind CPB2SG perfect binder with side gluing. Inexpensive to operate, this soft-cover binding machine by Coverbind can be used for short runs with just a couple of books or large jobs with thousands of books. Your print shop, in-plant printer, on-demand printer, or bindery can reach new levels of efficiency and convenience with the Coverbind CPB2SG perfect binding machine. Achieve professionally bound perfect back books in a snap with this perfect binding machines. Simple controls with an LCD display make for quick setup and operation. It is capable of production speeds up to 360 books per hour with customized adjustments for book height, block size, cover stock, and more. Even angled and spin position settings for versatility. This fully automated perfect binding system offers automatic/pneumatic clamping, specialized nipping, and essential glue coverage for a secure and flexible bind.Product Details
- Fast Binding. Bind up to 360 books per hour, depending on the book specifications and operator capabilities.

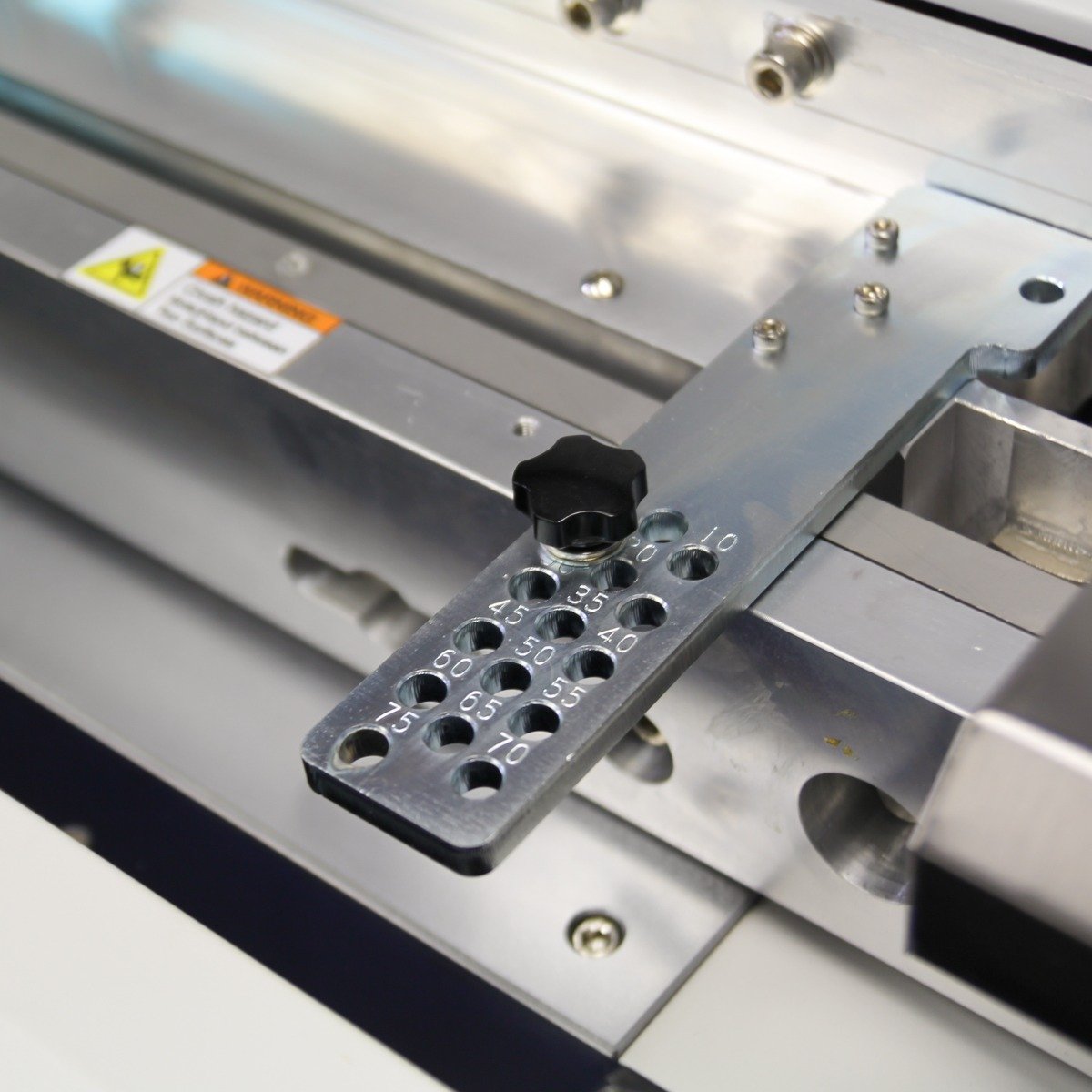

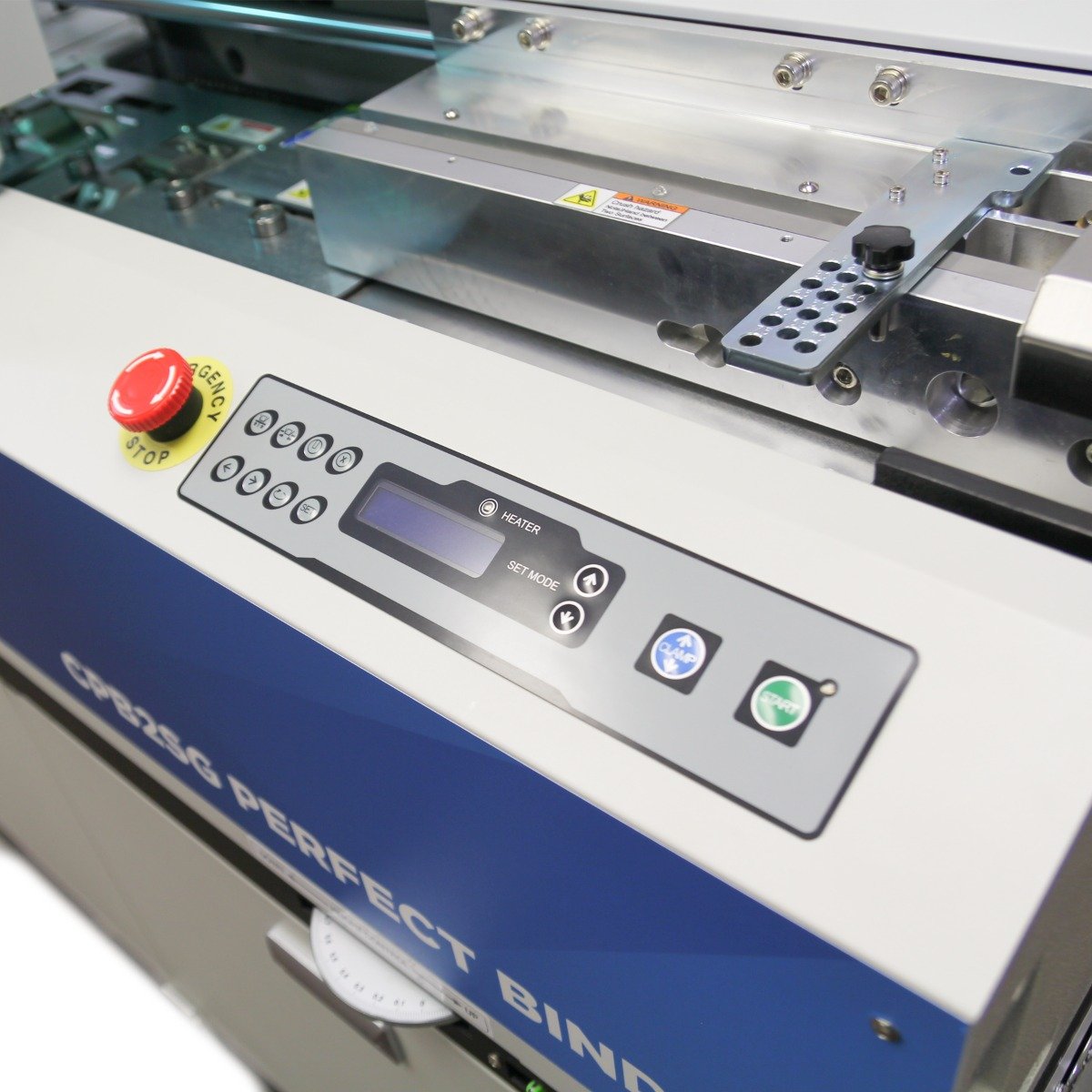

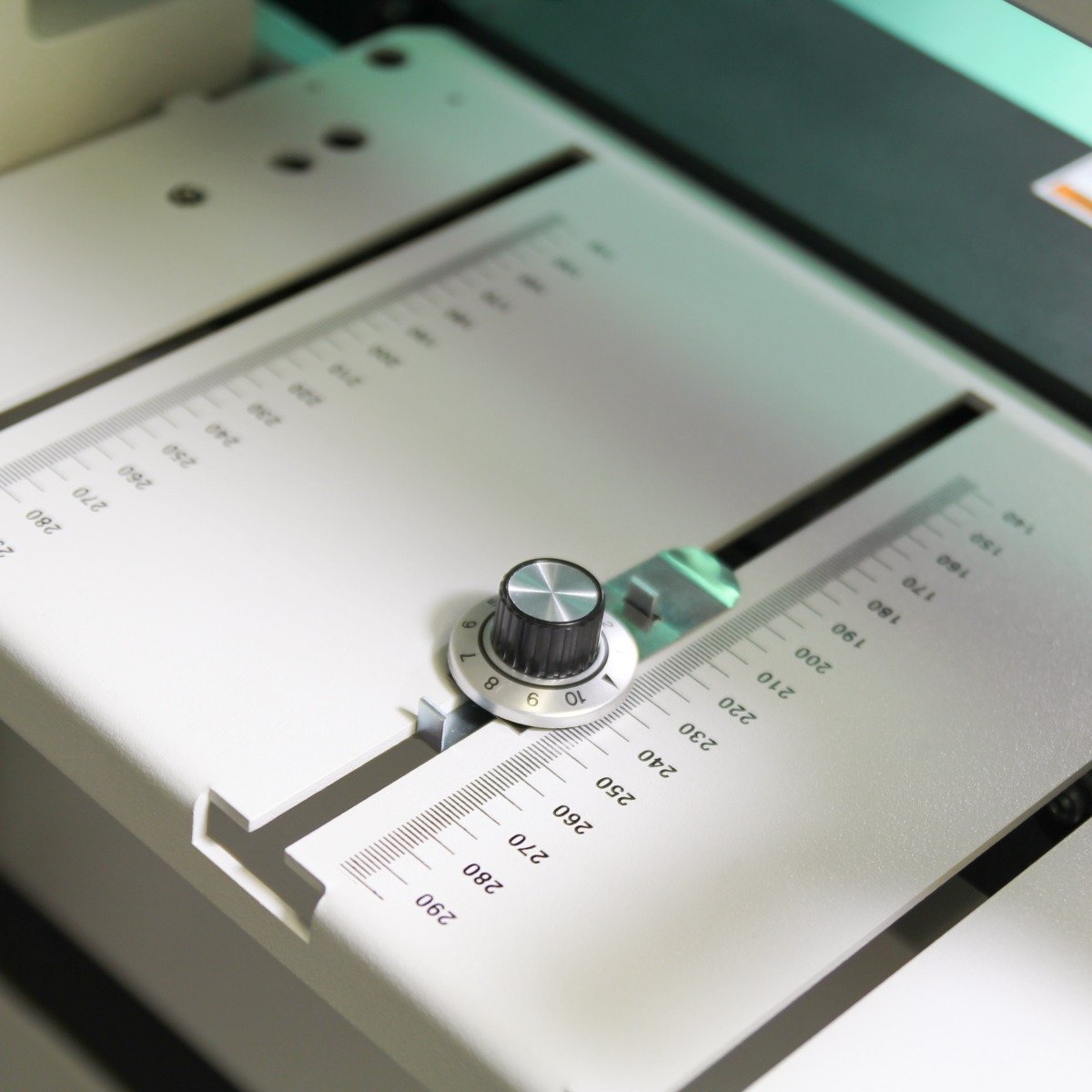

- Efficient Controls. A simple control panel lets you customize the machine to your specific job quickly.

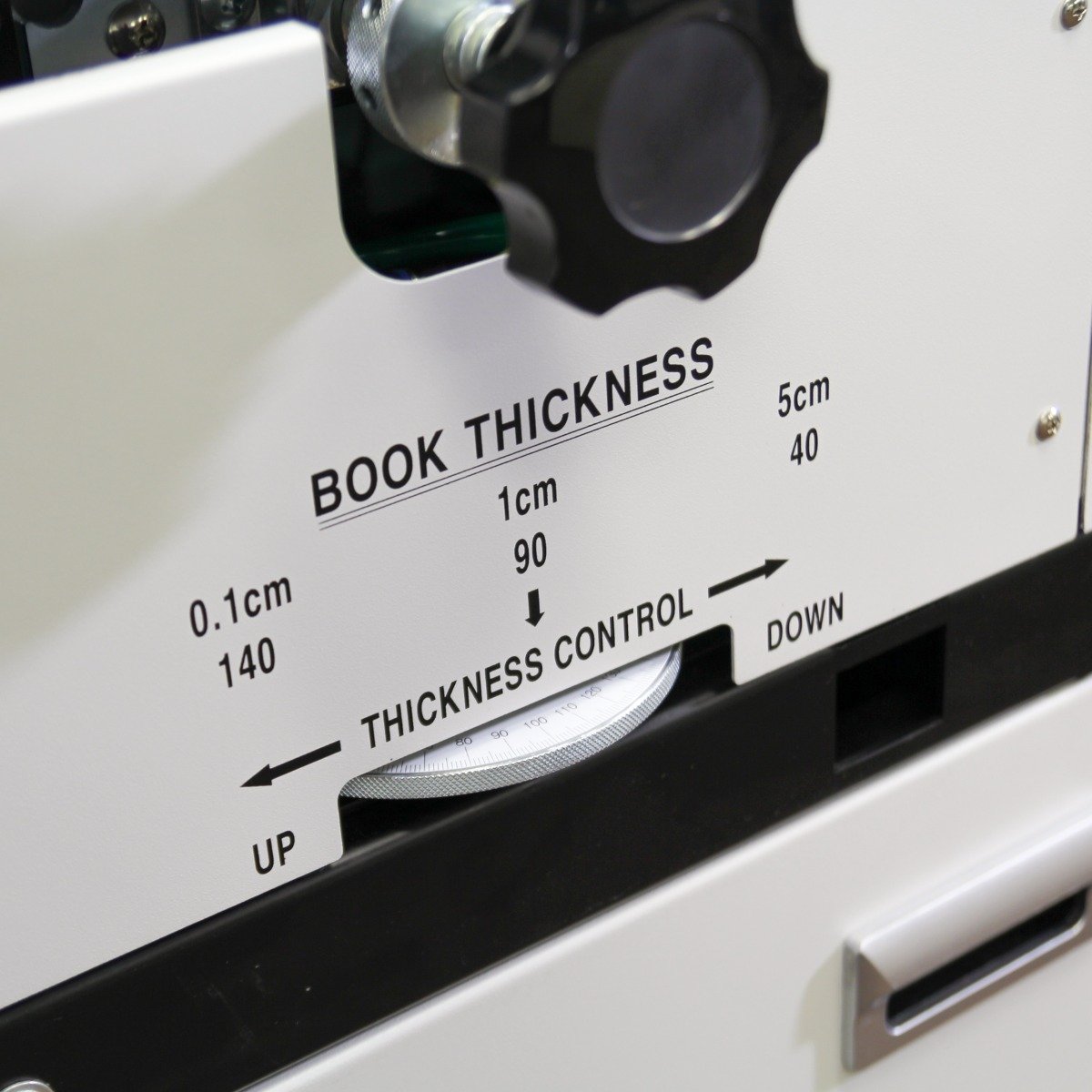

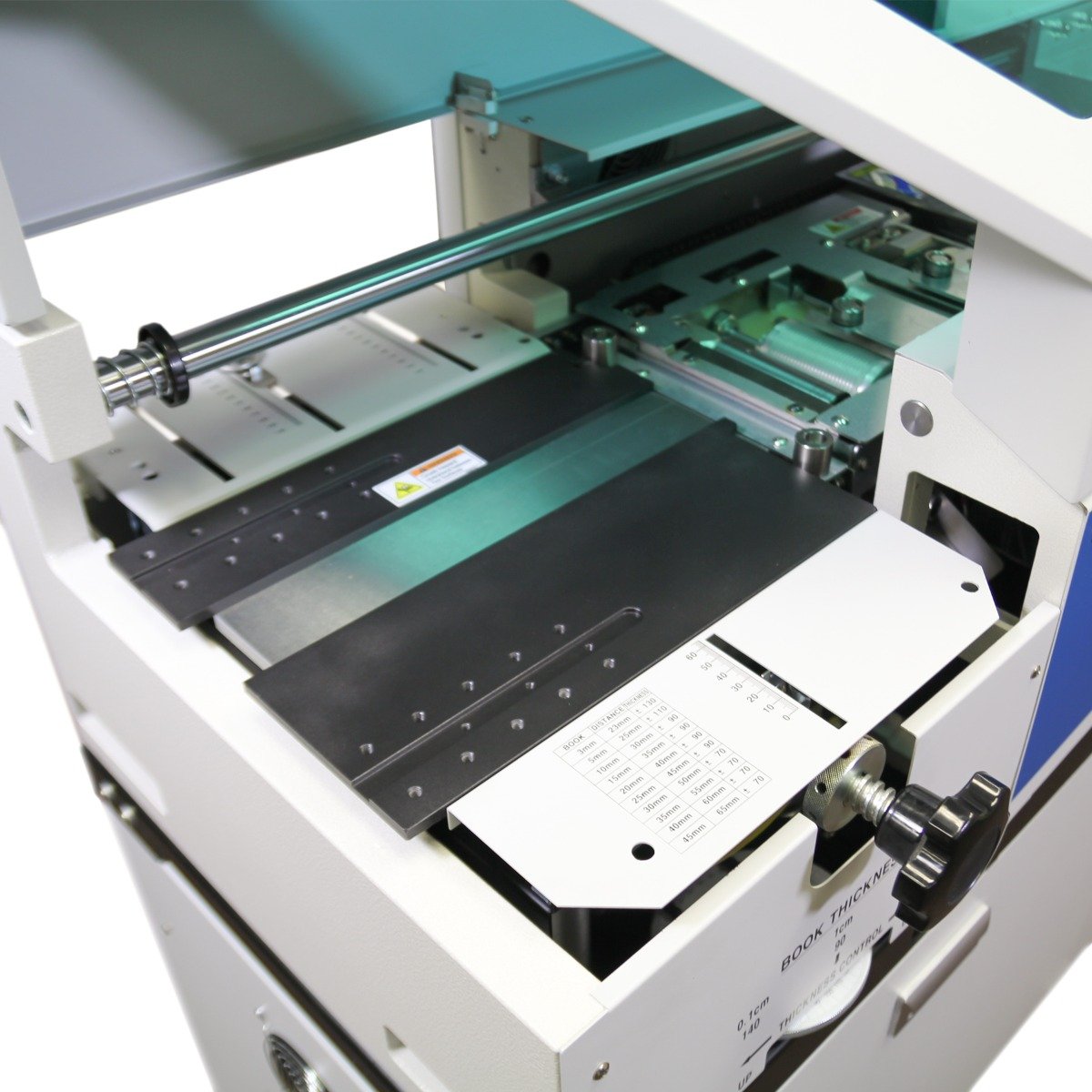

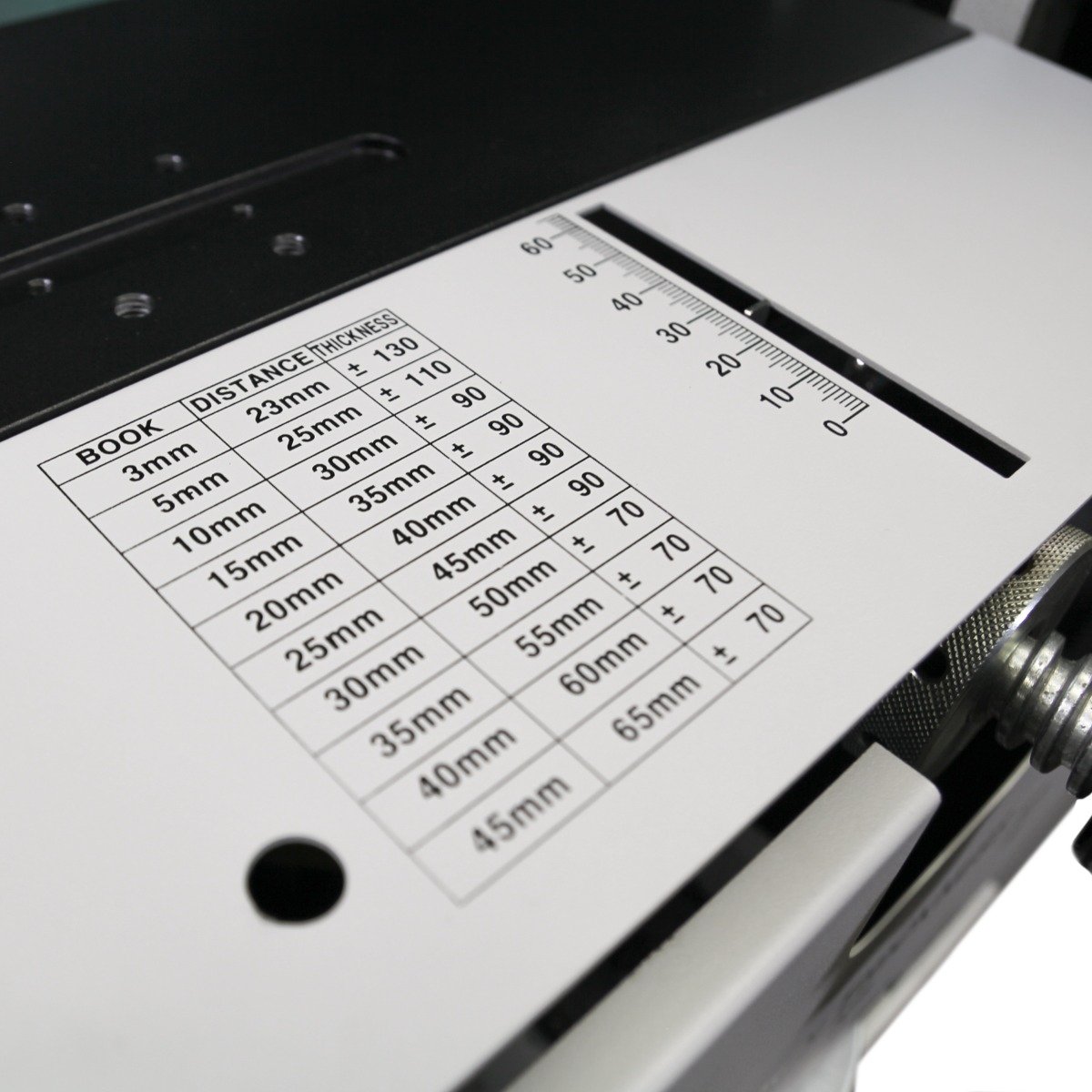

- Automated Clamping. A pneumatic powered clamping mechanisms automatically adjusts to your book block thickness up to 2-1/4”.

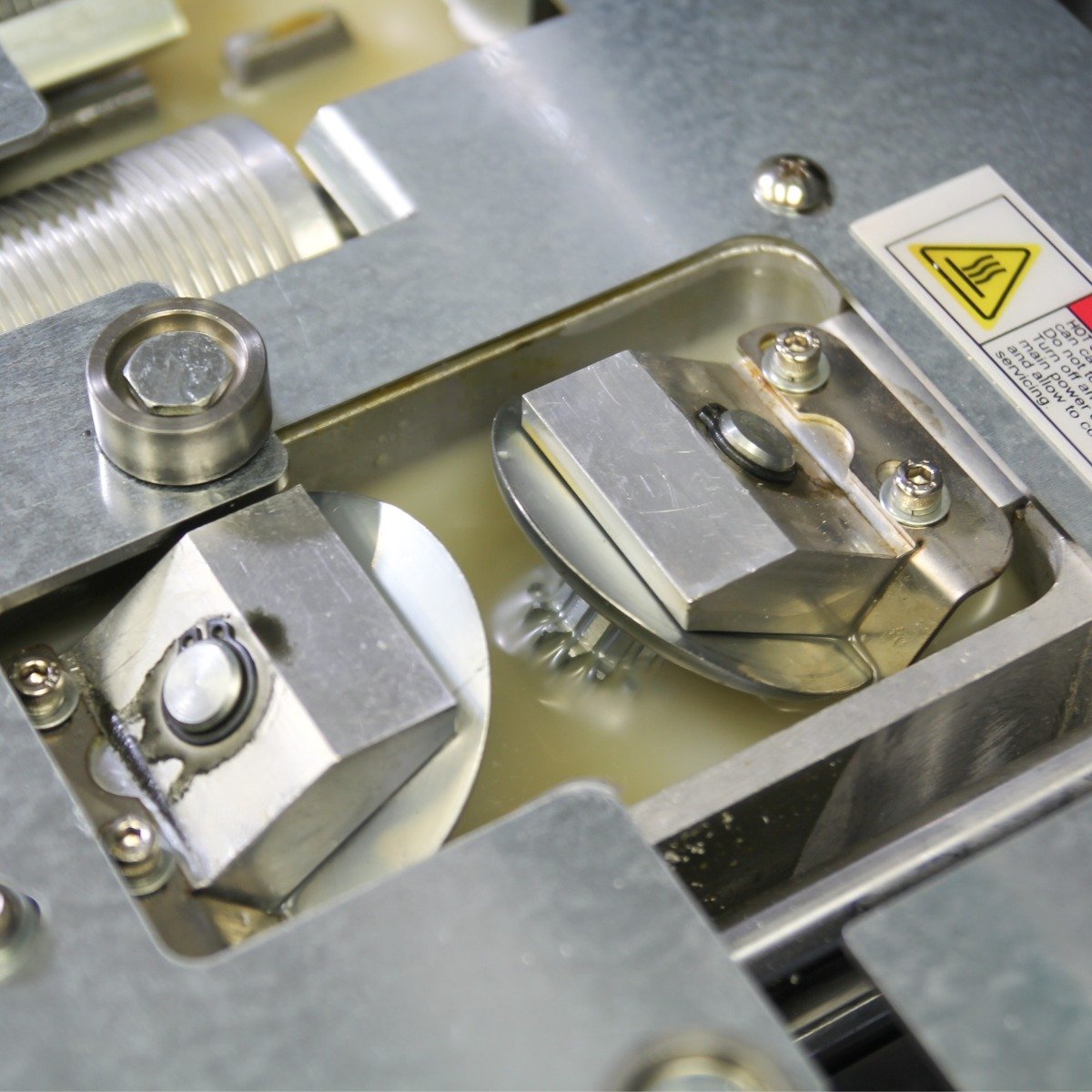

- Optimum Glue Penetration. Roughing blade includes a serrated edge with 4 notching pins for maximum glue penetration and finished book strength.

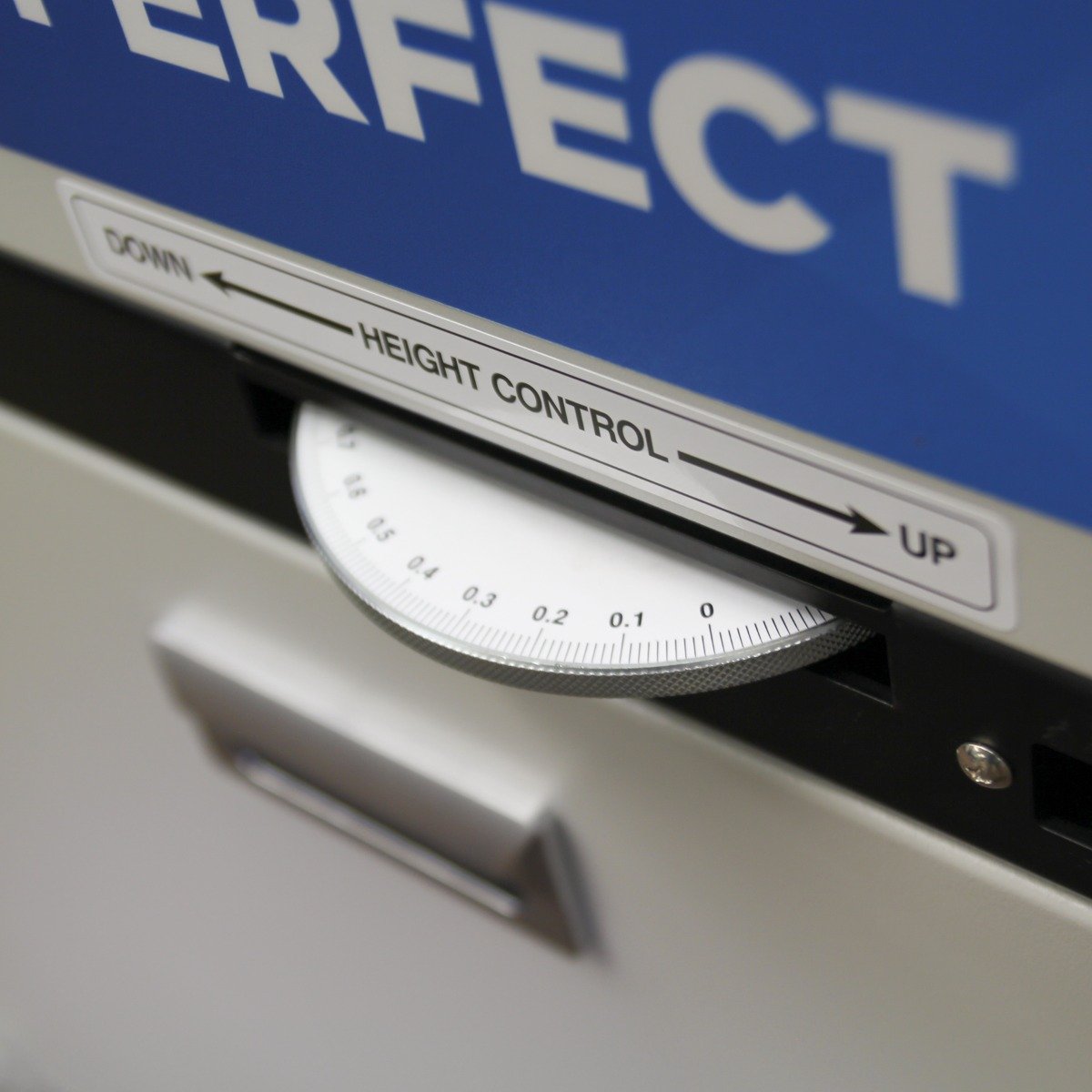

- Specialized Nipping. Set the nipper to produce an exceptionally square-backed book with an adjustable height and dwell time up to 8 seconds.
- Stronger Bind. Side gluing on the front and rear of the book block makes for exceptional finishing.

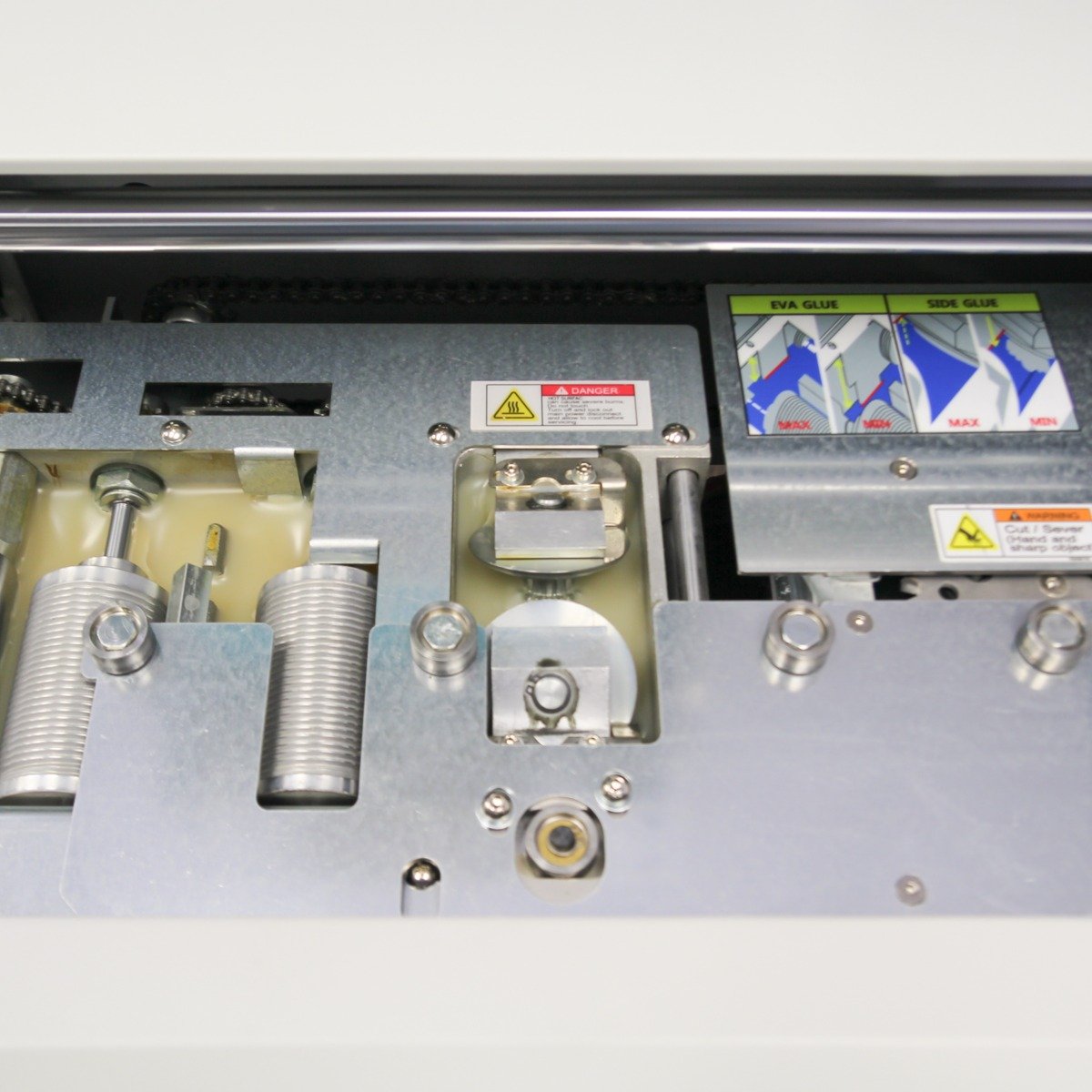

- Saturated Glue Coverage. Twin gluing rollers saturate the spine with adhesive while a separate adjustable metering roller smooths the glue to the optimum thickness.
Specifications
- Maximum Speed:Up to 360 books/hour
- Max Book Thickness: 2.25" / 57mm
- Max Cover Size: 13.4" x 30.75" / 34 x 78 cm
- Maximum Spine Length: 12.5" / 32cm
- Book Block Size: 12.5" x 8.7" / 32cm x 22cm
- Display: LCD Screen
- Clamp: Automatic/Pneumatic
- Roughing Blade: Milling and 2 Heavy Duty Notching Pins
- Rollers: 2 Glue, 1 Metering, Side Glue Tank

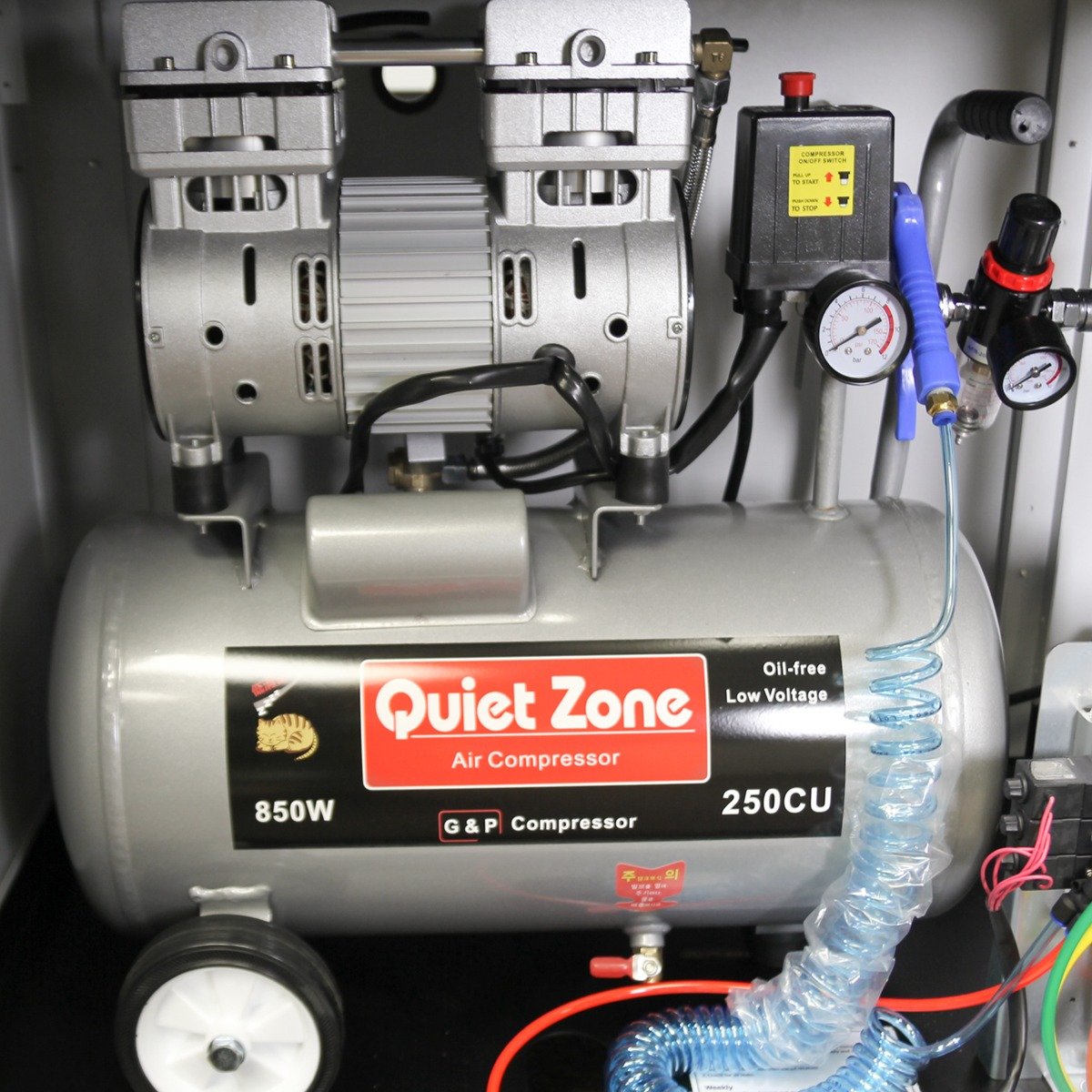

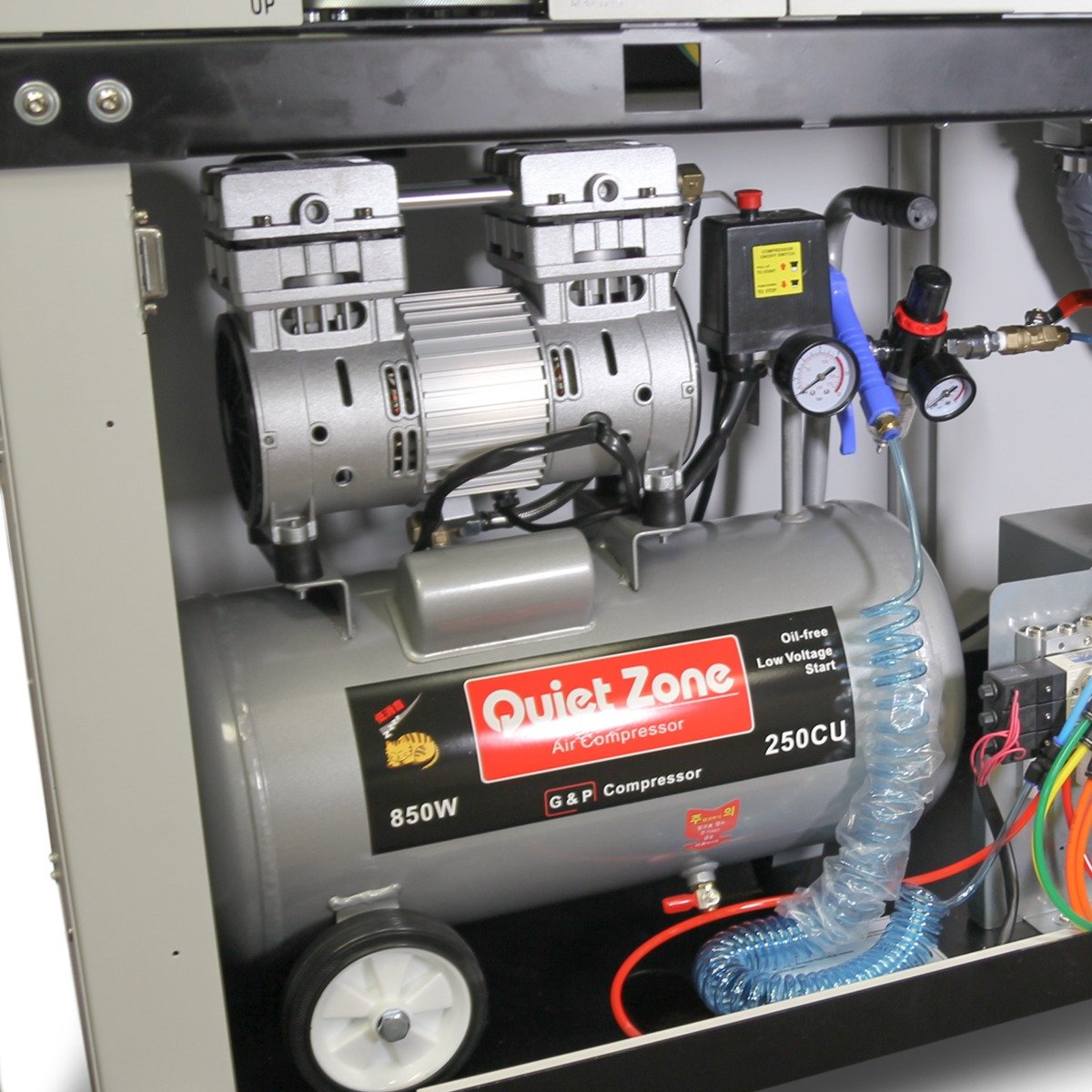

- Air Compressor: Air Compressor is Included
- Compressor power: Voltage: 220V single phase
- Compressor Rated Power: 1700 W
- Estimated Amp Load: 7.73 Amps (under ideal conditions)
- Compressor must be plugged in wall separately

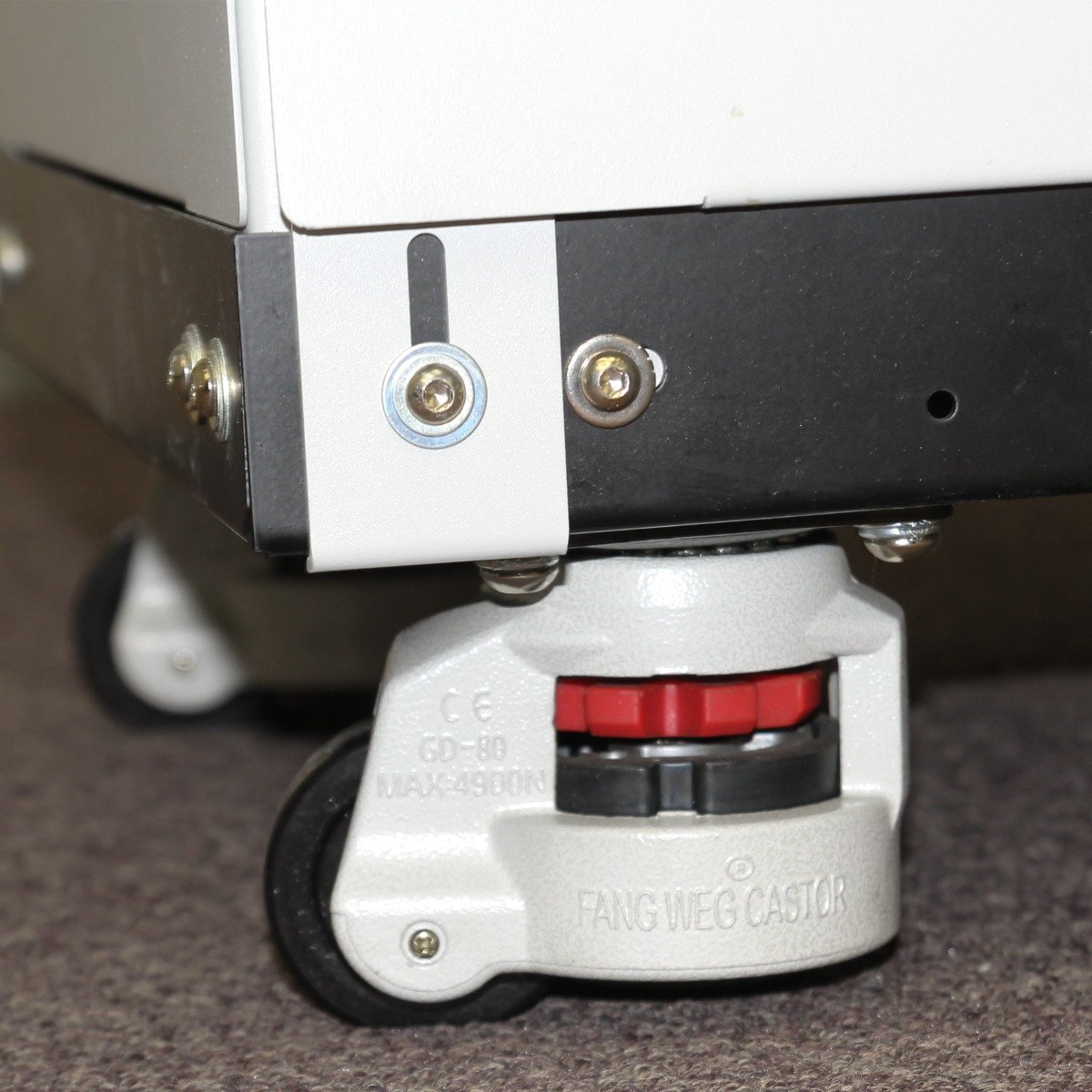

- Castors: Included
- Machine Dimensions: 52” H x 30” W x 64” L
- Shipping Dimensions: 62” H x 33” W x 70.5” L
- Machine Weight: 685 lbs.
- Shipping Weight: 739 lbs.
- Electrical: AC 220V-240V / 50-60Hz 20 Amps single phase (plug not included)
- Compatible Supplies: Coverbind Standard Perfect Bind Adhesive
Coverbind Premium Perfect Bind Adhesive - Warranty: Parts - 1 Year | Labor - 90 days
Features and Benefits
| Feature | CPB2SGP | CPB2SG | CPB3GCFC | Benefit | |
|---|---|---|---|---|---|
| Max Speed | Up to 360 books/hour | Up to 360 books/hour | Up to 360 books/hour | Cycle speed is dependent on operator capabilities. | |
| Max Book Thickness | 2.25" | 2.25" | 1.750" | ||
| Max Cover Size | 13.4" x 30.75" | 13.4" x 30.75" | 13.4" x 30.75" | All machines have same Max size. | |
| Book Block Size (Max) | 12.5" spine x 8.7" | 12.5" spine x 8.7" | 12.5" spine x 8.7" | (Actual unbound book height can be higher, call for info) | |
| Book Block Size (Min) | 4" spine x 3-3/4" | 4" spine x 3-3/4" | 4" spine x 3-3/4" | All machines have same Min size. | |
| Clamp | Automatic/Pneumatic | Automatic/Pneumatic | Automatic/Pneumatic | All have Automatic Clamp. | |
| Roughing/Milling Blade | Milling and 2 Heavy Duty Notching Pins | Milling and 2 Heavy Duty Notching Pins | Milling and 2 Heavy Duty Notching Pins | Roughing/Milling Blade gives the spine more surface area for the glue to adhere on. Model CPB2SG, CPB2GP, and CPB3GCFC are equipped with Roughing/Milling Blade. This procedure makes it easier when working with coated paper and other types of paper stock that need more glue saturation. | |
| Glue Rollers | 2 Glue, 1 Metering PUR, 1 Side Glue Tank EVA | 2 Glue, 1 Metering, Side Glue Tank | 2 Glue, 1 Metering, Side Glue Tank | Glue rollers provide a foolproof bond from the 2 Glue Rollers and 1 Metering Roller. All models have the Side Glue Tank with 2 applicator rollers. A stonger bond is made with the side glue when the cover is nipped. This creates strong adhesion of the cover to the book block on both the spine and front/back. A built in heat control ensure that the temperature is always optimal. | |
| Vacuum Waste Removal System | Yes | Yes | Yes | Having a Vacuum Waste Removal System helps keep the machine in optimal operating performance. The system collects dust that would otherwise end up inside the machine and glue. Without the vacuum system, paper dust produced from the roughening and notching process will accumulate and will cause future issues and damaged. | |

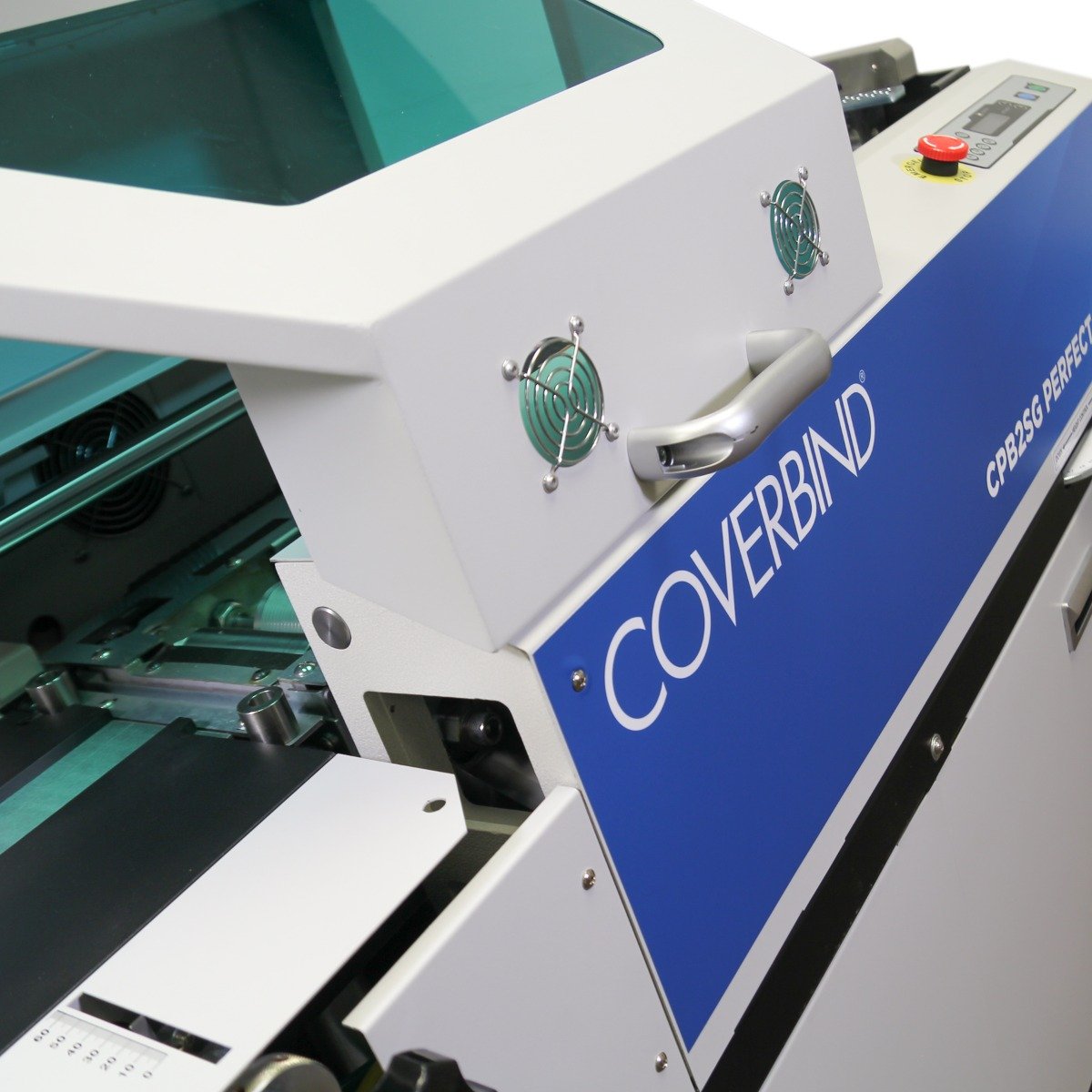

| Safety Hood | Yes with fans to vent the PUR vapor. | Yes | Yes | Protecting operators from accidents is the Safety Hood. This feature prevents access to the glue pots. It is only bypassed when a security key is inserted. The function is convenient when the book block height exceeds the opening of the safety cover. It also provides access in troubleshooting the machine. To make sure that no accidents happen, a clamp safety sensor runs the entire length of the clamp. | |
| Clamp Safety Sensor | Yes | Yes | Yes | Clamp Safety Sensors run the entire length of the book clamp to restrict access during operation. This prevent accidents that happend from contact with the binding parts. | |
| Book & Cover Sensors | Yes | Yes | Yes | The Book and Cover Sensor makes sure that outputs are always complete. The sensor alerts the operator when a book or cover is missing. The binder will not operate when one of these components is missing. | |
| Stand | Included | Included | Included | All machines come with stand to optimize its function and productivity as it provides the perfect working height, proper balance, and stability. The stand will create a cohesive workstation as it provides space for the compressor and glue storage. | |
| Air Compressor | Yes | Yes | Yes | The binder takes advantage of Pneumatic control. It offers convenience and speed with its auto adjust functions for book block size. Eash machine comes with Quite Noise Compressor. | |
| Fume Extractor | Yes | Yes (Avaiable) | Yes (Avaiable) | Creates a smell and odor-free work place with the Fume Extractor. The extractor traps fumes from the glue pot and directs away from the operator. Hooking the extractor to an external vent keeps the fume out of the workplace for operator safety. | |
| Automatic Cover Creaser | No | No | Yes | The Automatic Cover Creaser eliminates the possibility of cracking in the folded site especially when working with digitally printed media. This feature maintains the aesthetic of the print and elevates the quality of the final product. Having this built in feature eliminates the need for an additional process on a separate machine, saving you time and money. | |
| Creasing Bar | No | No | Yes | The Creasing Bar gives operators sevaral creasing depth options. It can be rotated in four directions to select the perfect crease depth for every unique project. | |
| Automatic Cover Feeder | No | No | Yes | Improving the workflow and operator convenience is the Automatic Cover Feeder. It utilizes embedded sensors to automatically feed the cover into position when the binder is ready. The sensors also detect double feeding and and missing covers, ensuring that every output is perfect and complete. | |
| Main Differences | PUR Glue | EVA Glue | EVA Glue | We offer Perfect Binders that utilize EVA or PUR glue. EVA glue is reusable, dries quickly and can be used on many different paper types. The glue also has a longer self life and can be reheated. PUR has a much greater bond to the paper, about 50%. It also has a greater stability in hot or cold temperatures like some EVA glues do. It is fully resistent to print ink and coated paper stock. PUR has a very short shelf life and unused glue must be vaccuum sealed for storage. Left over glue in pot can not be reheated/reused. PUR is more flexable that EVA but takes longer to cure. Each glue has it place in making Perfect Bind Books. |
