Product Description

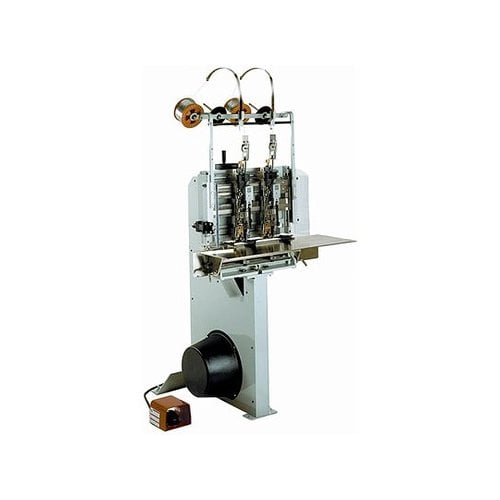

This Deluxe M27G20-AST Wire Stitching Machine is a multi-head stitcher designed to accommodate both light and heavy-duty work, stitch both flat and saddle and is recognized for being the highest capacity multiple head stitcher due to its ability to reliably stitch any thickness of stock from 2 sheets to 3/4” (20mm). The M27 accommodates the Side-Feed Style G20 Stitcher Head. It has a stitching capacity of 2 sheets to 3/4". Up to four heads can be mounted along the machine’s 17” (43cm) rail at a maximum distance of 13" (33cm) between Heads. When using 4 G20 heads, maximum stitching capacity is 1/2”. The recommended wire sizes for the M27 are: 20 to 28 gauge round wire and 19x21-1/2, 20x24 and 21x25 flat wire. The M27 comes standard with two (2) G20 Stitcher Heads but replacement Heads can be added when an application requires it. The M27 is easily adjusted from saddle work to flat work by tilting the 12" x 33" work table. An adjustable work guide and adjustable work stops are easily attached to the work table and provide for accurate registering of flat work for uniformly spacing the staples. In addition a work table extension is provided to accommodate larger sizes of work to be stitched. The M27 is foot-switch operated and belt driven by a 3/4 HP motor, making possible operating speeds up to 150 stitches per minute. The motor is mounted on an adjustable bracket which can be raised or lowered to adjust driving belt tension. The driving mechanism is thoroughly shielded, preventing the possibility of personal injury. The M27 has a 14" throat depth for either flat or saddle stitching. The work table is approximately 35" above the floor and there is approximately 1" clearance between the top of the work to be stitched and the protective guarding around the stitcher head.This Deluxe M27-AST Multi-Head Wire Stitcher with G20 Stitch Heads is backed by a 90-day Manufacturer's Warranty.
Product Details
- Multi-head stitcher designed to accommodate both light and heavy-duty work
- Stitch both flat and saddle
- Accommodates the Side-Feed Style G20 Stitcher Head. Comes standard with two (2) G20 Stitcher Heads but replacement Heads can be added when an application requires it.
- Stitch any thickness of stock from 2 sheets to 3/4”. When using 4 G20 heads, maximum stitching capacity is 1/2".
- Up to four heads can be mounted along the machine’s 17" rail at a maximum distance of 13" between Heads.
- It is easily adjusted from saddle work to flat work by tilting the 12" x 33" work table. An adjustable work guide and adjustable work stops are easily attached to the work table and provide for accurate registering of flat work for uniformly spacing the staples. In addition a work table extension is provided to accommodate larger sizes of work to be stitched.
- Is foot-switch operated and belt driven by a 3/4 HP motor, making possible operating speeds up to 150 stitches per minute.
- The driving mechanism is thoroughly shielded, preventing the possibility of personal injury.
- Has a 14" throat depth for either flat or saddle stitching.
- Sound level readings at the normal operator position are approximately 70 dB.
Specifications
- Capacity: 2 sheets to 3/4" with a G20 Head . When using 4 G20 heads, maximum stitching capacity is 1/2".
- Recommended Wire Sizes: 20-28 round or 19 x 21-1/2, 20 x 24 and 21 x 25 flat
- Clinch: moveable clincher for flat stitching
- Table: 33" wide heavy duty, 14" throat for flat and saddle work
- Speed: 150 stitches per minute
- Space Required:32" x 35" of floor space (with the table installed)
- Manufacturer's Warranty: 90 Days Manufacturer's Warranty
- Machine Weight: 470 lbs. (213 kgs) net with two (2) Heads
- Actual Machine Dimensions: 30" x 35" x 64"
- Actual Machine Weight : 580lbs
