Product Description

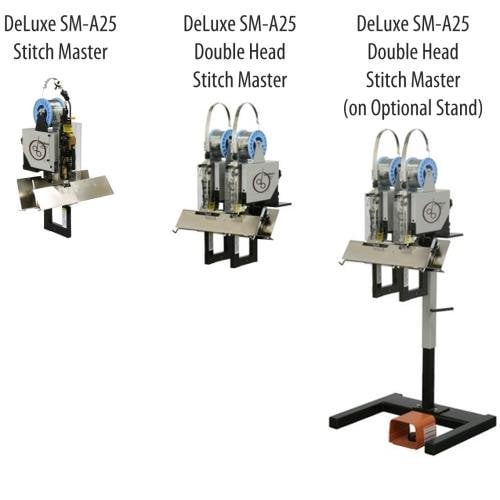

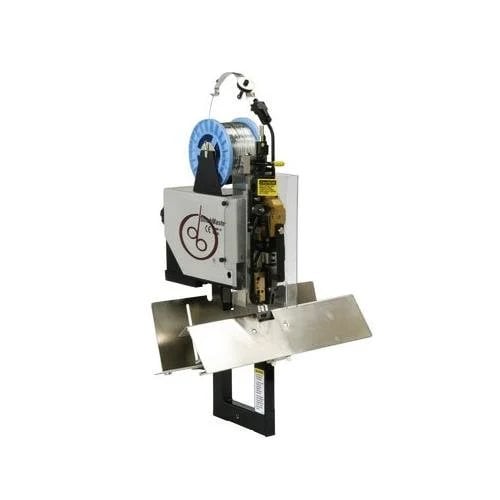

Affordable and versatile, the DeLuxeStitchMaster SM-A25 saddle stitching machine is an asset to your small print shop. The StitchMaster is a high-performance machine that comes in single and double-headed models. The double-headed allows for the simultaneous stitching of two staples at the same time, effectively halving the work time required for multiple stitches in one document. Both options can be attached to the optional stand or clamped onto any work table. The optional stand adjusts from 28" to 42" in height to allow for easy foot pedal operation without taking up table space. It also has a convenient one-knob adjustment that provides accurate and simple adjustment from the thinnest to the thickest layers.The StitchMaster is designed to work with the most common stitch wire, 25 gauge round stitching wire, but it can be customized to work with other common stitch wires to meet the needs of your shop. It has two pop-up pins for perfectly placed corner staples, as well as the ability to saddle stitch and flat-stitch. Its side stops adjust from 2 1/2" to 26" wide, allowing for perfectly aligned stitches on a variety of sheet sizes. With a capacity of 60 sheets of bond copy paper and the ability to handle booklets up to 1/4" thick, you can quickly and easily achieve the most common booklet thicknesses.
Product Details
- Easy work thickness adjustment with a single screw turn, offering accurate and simple adjustment from minimum to maximum thicknesses.
- Factory-set wire straighteners that virtually eliminate the need for straightener adjustments.
- The exclusive larger magnetic rotator that has no moving parts to prevent jams.
- An external grip spring that allows easier access and spool change.
- Reduced operating force maximizing the interval between maintenance functions and making it easier on the operator.
- Wear resistant components made of hardened tool steel to extend the stitcher life, reduce down time and require less maintenance.
- A felt wire oiler cleaner that cleans and lubricates, providing greatly extended intervals between maintenance.
Specifications
- Binding Style: Saddle Stitching
- Operation: Binding Electric
- Includes: 1 Stitch Master, Contact Strip, Side Stops, Foot Switch, 1 Spool 25 Gauge Round Wire
- Compatible Supplies & Accessories: 25 gauge round stitching wire
- Power Voltage: 115 V
- Speed: 100 Stitches / Minute
- Dimensions: 9" W x 13" D x 24" H, 16" Wide Table
- Certifications :CE
- Warranty: 90 Day Limited Manufacturers Warranty
- Throat Depth: Flat: 5", Saddle: 9"
