Product Description

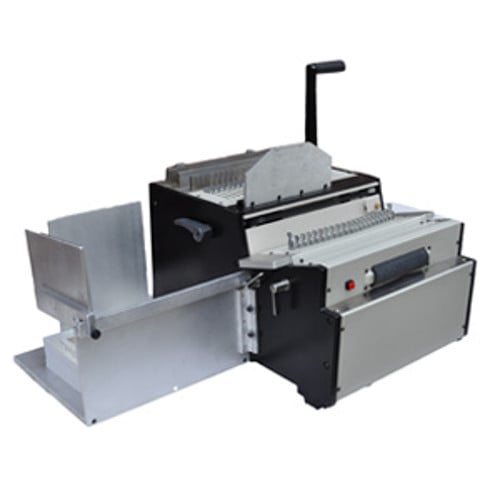

This DFG All-in-One Punch Binder is the world's first and only, tabletop, all-in-one punch and bind system with paper ejection and stacking device. Its innovative design allows for all punching and binding requirements to be completed in one compact, space-saving unit. Its built-in, automatic, "Paper Ejection" system increases punch productivity by 50%. Increase binding productivity with its innovative and built-in POSIBINDING technology that increases coil binding productivity up to 100%. Its CLOSEASSIST technology assures consistent and long lasting wire closure capability due to unique tapered steel bar and two-adjustment design. Plus, its unique design in comb binding spread capability allows for increased productivity through ease of finished book removal. Its INTERCHANGEABLE DIE design for coil, comb, wire, and other hole patterns, contributes to increased productivity through less than a two minute die change. The strong die lock mechanisms prevent damage due to movement inside the machine. Plus, the EXTA HEAVY PUNCH TOOL design allows for instant punch pin disengagement without the removal of the die. This DFG All-in-One Punch Binder has all metal design and no internal plastic structure parts.
Product Details
- Increases productivity 50% -60%Thanks to the auto ejection system
- Punch sheet sizes from 2" to 23" easily. Fully dis-engage punch pins without removing punch die
- Larger, heavier and stronger Thickest solid side plates. Weight 120 lbs (without ejection receiving tray)
- Gearbox virtually lasts a life time Special anti-punch impact designed gear box
- Long lasting electrical control Electrical parts will never over heat
- No motor brush replacement or maintenance needed
- Will not interrupt work flow Can clear jam outside the punch without manually rotating motor shaft. Auto reverse and semi auto reverse is standard
- Auto ejection function can turn off for odd paper size
- No internal plastic slider parts used High strength Gear-rack mechanism used to replace aluminum-plastic slide mechanism
- All metal design no internal plastic parts used
- Successfully eliminates punch jam and parts damage from packed chip tray Thanks to overflow protection design
- Strong die lock mechanism prevents die damage due to die movement inside the machine. Dies are secured in place by 4 screws. No tools needed.
- Better die life Felt type grease die lubrication (not oil type lubrication)
Specifications
- Punching Capacity: 30 sheets (20#) per punch
- Punch Length: Any Length thanks to the fully disengagement pins and open throat design
- Comb Binding Capacity: Up to 2" thickness (50 mm), 500 sheets
- Wire Binding Capacity: 3/16" to 1 1/4"
- Coil Binding Capacity: Electrical binding up to 7/8". Manual binding for any size
- Weight: Net: 145lbs Gross: 185lbs (with wooden packaging)
- Dimensions:
18" (w) x 21 1/2" (d) x 13" (h) - without paper receiving
33" (w) x 21 1/2" (d) x 12" (h) - with paper receiving
- Disengagement Pins: Full set
- Power Supplier:
110 VAC, 5 amps, 50/60Hz, 500 watts or
220 VAC, 3 amps, 50/60Hz, 500 watts
- Warranty: One year limited
- Part Number: AllinOneBinder
