Product Description

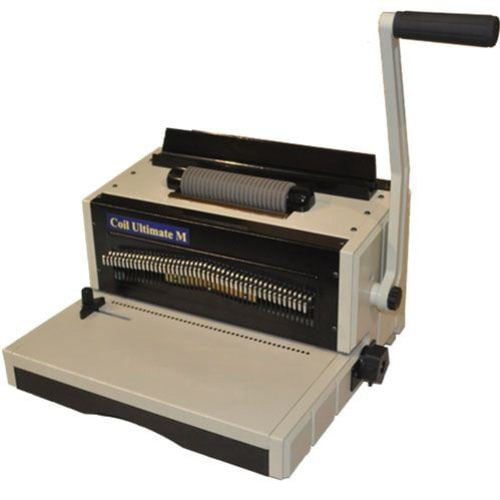

The DFG Coil Ultimate M is an extra heavy-duty manual punch and power binding machine for coil book binding operations. Capable of easily binding coil books, proposals, reports, and other documents quickly and effeciently on a large scale, the Coil Ultimate M from the Digital Finishing Group provides the ultimate in modern coil binding technology. Capable of punching up to 25 sheets or through 3mm thick hardboard, the CoilUltimate M surpasses nearly ever other coil punch and bind machine available on the market today. Constrcuted with heavy-duty die-casted metal, the DFG Coil UltimateM is reliable, user-friendly, functional, and perfectly capable of handling every project you have for it. For the highest quality binding possible, the DFG Coil Ultimate M uses virtually zero tolerance Double "D" oval holes (4 x 5mm), DFG's patent pending SERVOGROOVE roller binding system, fully dis-engageable pins, and a true 0.25" pitch design. When your organization requires the highest quality, highest capacity, and perfect binding on all of your coil binding projects, settle for nothing less than the DFG Coil Ultimate M coil binding machine from MyBinding.com!
Product Details
- Extended Single Punching Length: Punch any size paper with the open throat and disengageable pin design
- Super Strength Punch Mechanism: Cast-hardened & heat-treated precision steel punch pins provide superior strength & hardness.
- SERVOGROVE Roller Binding System: Resulting in a dramatic 50% increase in binding speed and is easier to control for the user.
- Fully Disengageable Pins: No more partial punches on any size of project.
- J-Shaped Book Pre-former Guide: Properly form thick books to the proper radius of the coil, and is much more effecient and accurate than the typical U-shaped guides.
- Side Margin Control: Allows you to evenly center your punch pattern on your sheet.
- Punching Margin Control: Provides the correct punch depth for each coil size, which maximizes the book's tear resistance.
- Rugged Die-Cast Metal Construction: The Coil Ultimate M is made of a sturdy multiple piece die cast metal rather than flexible sheet metal like some other machines in its class.
- Large Waste Drawer: For prolonged working.
- Non-Skid Feet: For increased stability while working.
- Included Oval Hole Coil Crimpers
Specifications
- Punching Style: Coil
- Punch/Bind Method: Manual & Electric
- Hole Pattern: True 4:1 pitch; Double "D" 4mm x 5mm hole
- Punch Capacity: 1-25 Sheets (20 lbs.)
- Binding Capacity: Electric binding up to 7/8", any size for manual
- Punch Length: Any length through fully disengageable pins and open throat design
- Power Supply: 110v; 60Hz
- Color:Grey
- Weight: 36
- Dimensions: 21" x 19" x 14"
- Warranty: 1 Year Limited Manufacturer
- List Price: $1599
