Product Description

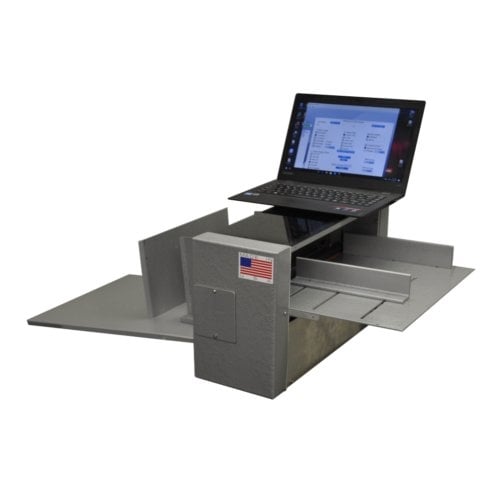

The DFG PC 20 Semi-Automatic Creaser can accurately crease the full range of paper up to 650 gsm. It prevents document toner cracking and makes folding sheets much easier. It can also make strike perforations for different types of perforated business cards within postcards, T or L sharped coupons, or tickets for direct mailers. The PC 20 is easy to operate. Just input sheet length, weight, type of folding.., and click “Run”. The machine will do the rest. The PC 20 has a machine speed of up to 9000 sheets per hour, and an actual speed of 3000 sheets per hour (operator dependednt). It can accomodate paper size up to 14.5" x 48" at a rate of 30 creases per sheet. This DFG PC 20 Semi-Automatic Creaser with Strike Perforation is proudly designed and manufactured in the U.S.A.
Product Details
- Crease - up to 650 gsm (32 points) paper.
- Paper size – up to 14.5" x 48".
- Number of creases per sheet – up to 30 creases.
- Crease depth control – fully automatic by software (based on paper weight).
- UnibodySoftTouch creasing matrix – for long lasting and accurate creasing.
- Strike perforation – two are standard. 3 and/or 4 are optional.
- Machine cycle – up to 9,000 sheets per hour (one crease for 11" sheet).
- Actual speed – up to 3,000 sheets per hour (operator dependent) .
- PC Windows-based control software. Industry leading personal computer control system for easy job recall and set up in seconds.
- Free Job creating software lets end users create and store their programs for future use. This feature has only come with much more expensive machines in the past.
- Unlimited alpha numeric memory.
- Warranty – Six year mechanical and electrical limited. 1 year labor (laptop computer warranty by pc manufacturer for shorter time), Creasing matrix tools – 10 years.
- Optional:
- Long sheets kit – loading table and receiver
- Ultra heavy creasing matrix – from 400 gsm to 650 gsm
- 3rd and/or 4th strike perforation tool
- Floor type machine cabinet
Specifications
- Machine Speed: Up to 9,000 sheets per hour.
- Actual Speed: operator dependent. A good operator can do 3,000 sheets per hour (1 crease for 11" sheet)
- Sheet Size: from 1" x 3.5" to 14.5" x 48"
- Sheet Weight: 16 lbs to 400 gsm (19 points) standard. Up to 650 gsm (32 points) optional
- Number of Creases Per Sheet Pass: up to 30
- Job Memory: Unlimited
- Number of pre-set jobs: 16
- Crease Depth Control: fully automatic by software based on paper weight
- Number of Strike Perforation: 2 is standard. 3 and/or 4 are optional 14.5" x 19" feeding table and receiving are standard. Long sheet kit is optional
- Power: Single phase. 115 V, 60 Hz, 5A or 220V, 50 Hz, 3A
- Machine Size: 48" (L) x 22" (D) x 12" (H)
- Shipping Weight: 70 lbs.
- Warranty: 6 Years Limited (Mechanical and Electrical)
