Product Description

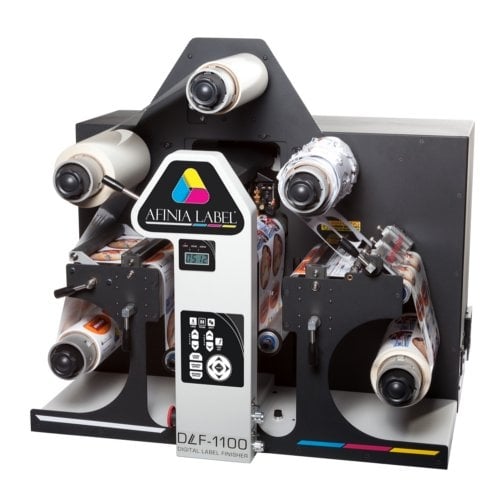

This DLF-1100 Table-Top Digital Label Finisher is the perfect solution for laminating and cutting labels in any size or shape, digitally, and without dies. It is designed to digitally finish printed rolls from Afinia Label’s L801 Color Label Printer. The DLF-1100 digitally cuts labels to any shape and is controlled through plug-ins to popular vector-based programs like Illustrator. This label finisher can laminate, plotter-cut, remove waste, slit, and rewind labels all in one process. With the DLF-1100, quick printers and brands will be free to create and print unusually-shaped labels, which will cause products to stand-out on the shelf.
Product Details
- Capabilities - Lamination, Liner removal, Contour cutting, Waste removal, Slitting and Rewinding.
- Built around a proven industry-standard, plotter-style cutting mechanism for maximum accuracy and dependability.
- Quick printers and brands will be free to create and print unusually-shaped labels
- Features a compact, table-top design and measures 31?w x 22?h x 21?d (79cm x 56cm x 53cm) and can fit into almost any setting.
- Works directly from your design software with its convenient plug-in for Illustrator and CorelDraw.
- The front panel controls and LCD display allow for fast set up, simple adjustment of cutting pressure, and easy alignment of the cut to the image.
- Compact design.
- Continuous Feed mode for better throughput.
- Enhanced mandrel design ensures straight feeding.
- Compatible with continuous feed label printers like the L801.
- Works with selfwound and linered laminates.
Specifications
- Contour Cutting Capability: HPGL vector cutting compatible with opto-electrical line sensor
- Web Width: 4"-8.5" (100mm- 220 mm)
- Operation Speed: Up to 10 ft./ minute (3 meters / minute)
- Max Frame Length: 14" (35.5 cm)
- Max Input Roll Diameter: 8" (20 cm)
- Max Output Roll Diameter: 8" (20 cm)
- Recommended Roll Length: 500' (153 meters)
- Cutting Technology: Plotter controlled drag knife
- User Interface: LCD Panel Display, Additional Control from Windows software
- Vector Design Software Support: Adobe Illustrator, CorelDraw!
- Connectivity: Ethernet 100 Base-T or USB 2.0
- Power Requirements: 100-240 VAC- 900 watts
- Height: 22" (56 cm)
- Width: 31" (79 cm)
- Depth: 21" (53 cm)
- Weight: 185 lbs (85 kg)
