Product Description

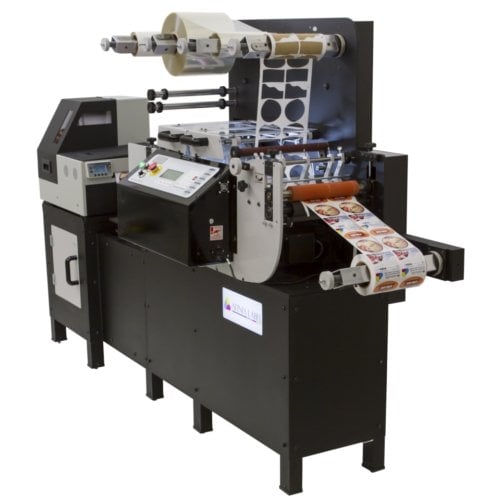

The Afinia Label DLP-2000 is a mini digital label press, powered by Memjet technology, that allows you to print, laminate, die-cut, remove waste, slit, and rewind labels in one process. This label press has a built-in Memjet-powered L801 industrial label printer that can print and finish labels at up to 30 ft/min (9 m/min) at 1600 x 1600 dpi to create vivid, photograph-quality color labels. The DLP-2000 can also create die-cut labels that are ready for printing. With a 14" flexible die, it’s possible to run the DLP-2000 in full-rotary mode which will convert blank labels at a rate of over 140 ft/ min (43 m/min). This DLP-2000 High Speed Mini Digital Label Press delivers flexibility, quality, and speed, making digital production accessible and profitable.
Product Details
- A mini digital label press, powered by Memjet technology, that allows you to print, laminate, die-cut, remove waste, slit, and rewind labels in one process.
- With a Memjet-powered L801 industrial label printer built in, the DLP-2000 can print and finish labels at up to 30 ft/min (9 m/min) at 1600 x 1600 dpi to create vivid, photograph-quality color labels.
- With a 14" flexible die, it’s possible to run the DLP-2000 in full-rotary mode which will convert blank labels at a rate of over 140 ft/ min (43 m/min).
- Is compatible with your existing RotoMetrics dies. If you are familiar with color label presses, the functions DLP-2000 will be very familiar to you.
Specifications
- Print Speed: 30 ft/min. (9m)
- Print Quality: 1600 DPI full-color output
- Max. Web Width: 9.65" (245 mm)
- Lateral Paper Adjustment: 0.5" (12 mm)
- Core Sizes: 3" (76 mm)
- Max. Laminate OD: 11" (280 mm)
- Laminate: Economical, self-wound and supported laminate (on a liner). Liner removal included for use with high quality, liner-supported laminate
- Max. Diecutting Width: 9" (230 mm)
- Max. Diecutting Length: 12" (304.8 mm)
- Cutting Dies: Flexible steel – any size from 0.2" (5 mm) to 12" (304.8 mm) repeat
- Registration Sensor: Laser
- Registration Sensor Adjustment: 9" (230 mm) x 12" (304.8 mm)
- Sensor Mark: 0.2" x 0.2" (5 mm x 5 mm)
- Max. Finished Label Rewind: 11" (280 mm)
- Max. Waste Matrix Rewind: 11.8" (300 mm)
- Razor Slitter Assembly: 6 knives
- Razor Slitter Lateral Adjustment: 0.47" (12 mm)
- Media Capacity: Print and finish (using L801 print engine’s enclosed unwinder): 6" wide to 8.5" wide, 8" Max OD on a 3" core. • Print and finish using optional external unwinder: Up to 19.68" (500 mm) OD on a 3" core
- Dimensions: 92" (233.7 cm) L x 59" (149.9 cm) H x 30" (76.2 cm) W
- Frame: 0.4" (10 mm) solid aluminum
- Safety Sensors: Magnetic lid x 2
- Loop: Photoelectric distance sensor
- Power: 110V – 240V adjustable, 7 Amps
- Speed: Max 7.87"/sec (200 mm/sec) re-registering or 140 ft/min full rotary for blank labels
- Speed Control: Variable
- Weight: 420 lbs (190 kg)
- Motors: 2, 400 W / 90 W
- Control: PCB. Inverter, Encoder
