We're sorry, but we no longer offer this item.
Call us at 1-800-944-4573 for personalized recommendations
check out these similar items that may be a good fit
Product Description

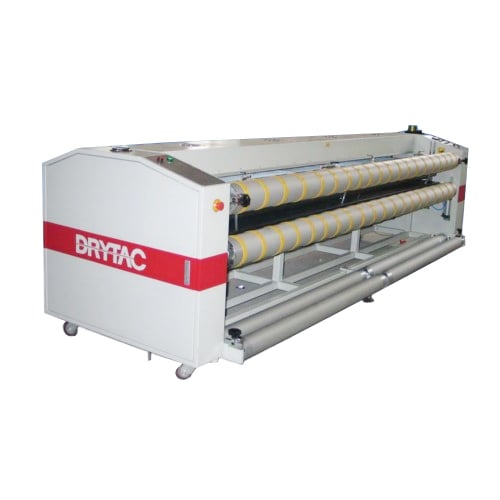

This Drytac SmartCoater Pro 128" Aqueous Liquid Coater is compatible with most roll-to-roll UV, solvent, eco-solvent, and pigmented inkjet printers which make the SmartCoater liquid coating systems most advanced coaters in the industry. The SmartCoater protects inkjet graphics on vinyl, PSA, canvas, non-porous textiles, wet strength paper wall coverings, and other flexible substrates. Also, it can function as a flash drying device for hard-to-dry inks. The 128" SmartCoater is ideal for producing vehicle graphics, wall coverings, truck curtains, banners, and other longterm applications. The coating cost of using this Drytac SmartCoater Pro 128" Aqueous Liquid Coater can only range from 2 to 26 cents per square foot, depending on application and coating used.
Product Details
- Auto temperature control with power saver feature.
- TruSpeed Automatic Speed Control.
- Automatic process monitoring.
- Throughput speeds up to 6 fpm (2 mpm).
- Automatic media unwind sensor with alarm and auto pump shut off.
- Forward/reverse controls.
- Split front unwind cradle with individual tension control.
- Pneumatically operated dryer.
- Pneumatically operated coating head.
- Filtered supply and return with split drains.
- Four cooling fans in dryer and six cooling fans at take up.
- Dual tanks with quick disconnect.
- Removable/reversible take up.
- Magnetic suspension pump w/auto level sensing.
- Easy to change Mayer bars.
- Optional Mayer bars #12, #26 and #36.
- Optional stand alone material windup.
- "S” curve web design.
- Pre-wired for optional post coat portable heater.
Specifications
- Max. Coat Width: 128" (3.2 meters)
- Max. Coating Thickness: 32 microns (1.2 mil)
- Technology: Static Mayer Bar
- Mayer Bar Range: #18 (Standard) #12, #26 and #36 available (Requires use of #36 Mayer bar)
- Forward/Reverse Speed: 1–6 ft/min (.3–2 m/min)
- Machine Size (L x W x H): 152" x 37" x 41.5" (3.85 m x .93 m x 1.05 m)
- Crated Size: (L x W x H): 160" x 45" x 49" (4.57 m x 1.14 m x 1.24 m)
- Electrical Requirements: 220vac (380vac Europe) 60Hz 3 phase
- Power Consumption: 30 amp (mains cable is not supplied)
- Safety Certification: Built to CE Standards
- Emergency Shut Off: Yes
- Warranty: 1 year parts, 3 months labor
- Part Number: WBRC-128-PRO
