Product Description

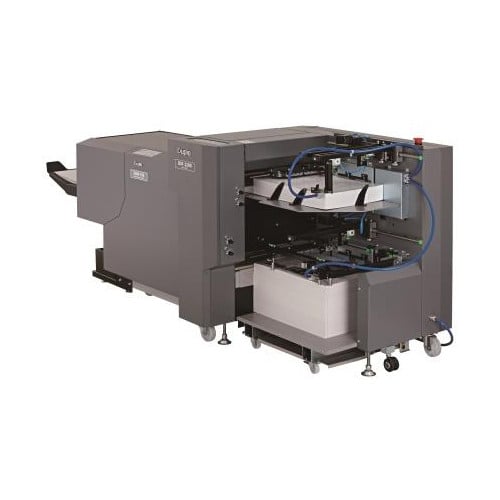

The 150 Digital Booklet System is Duplo's entry-level sheet feeding system connecting the DSF-2200 Sheet Feeder with the DBM-150 Bookletmaker equipped with the DBM-150SxS Kit. The DSF-2200 comes loaded with a number of high-end features including Duplo's own belt suction feed system, front and side air separation, an anti-static device and ultrasonic double feed detection for enhanced feed reliability. It feeds up to 200 sheets per minute and offers a variety of options including a trail edge air kit, pre-loading kit, and 1D & 2D barcode readers. Featuring the Isaberg Rapid stapler and staple cartridge, the DBM-150 Bookletmaker produces a high quality, flat staple every time. Each cartridge holds 5,000 staples and wear parts are replaced each time the cartridge is changed out, providing a high level of reliability. The DBM-150 Bookletmaker can be operated via the control panel where up to 16 jobs can be saved in memory or via a PC using the optional PC Controller software. Compact in size yet built-in with high performance features, the 150 Digital Booklet System produces superior corner, side or saddle-stapled applications up to 1,720 booklets per hour.
Product Details
- Short-run sheet feeder and bookletmaker
- Configures a DSF-2200 Sheet Feeder with a DBM-150 Bookletmaker
- Produces up to 1,720 booklets per hour
- Suitable for short volume demands
- Accepts output from multiple printers
- Converts pre-collated sets into finished booklets
- Belt suction feeding with front and side air separation
- Built-in ultrasonic double feed detection and anti-static device
- Isaberg Rapid stapler and staple cartridge
- 16-job memory
- Optional PC Controller software
Specifications
DSF-2200 Sheet Feeder
- Number of Bins: 2
- Separation: Front air (fan); side air (fan); optional trail edge (pump)
- Feeding System: 8 belts with 40 square inches of suction (fan)
- Paper Loading Capacity: Tray A 2.56" (65 mm) or Tray B 7.87" (200 mm)
- Paper Size: Length 7.87" - 20" (200 - 508 mm) (Maximum paper length is 24" /610 mm only when the paper width is 7.88" - 9.05"/ 200 - 230 mm. If the width is more than 9.05"/230 mm, the maximum paper length is 20"/508 mm) and Width 4.13" - 14.02" (105 - 356 mm)
- Paper Type: Art/coated paper; laminated paper 79 - 300 gsm; fine paper 52.3 - 300 gsm
- Processing Speed: Up to 200 sheets/minute (A4 SEF)
- Control Panel: Liquid crystal display unit with main controls through PC interface
- Additional Functions: Ultrasonic double-feed detection; end mark detector (sensor); anti-static device; alternate feed function
- Dimensions (WxDxH): 37" x 30" x 34"
- Power: 100 - 240V 50/60Hz 2.6A 2.6 - 1.1A
- Power Consumption: 260W
- Weight: 254 lbs.
- Options PC Controller; Trail Edge Air Kit; Preload Kit; Extension Tray Kit; Barcode Kit
DBM-150 Bookletmaker
- Paper Size : See specification of DFC-100
- Paper Size of Side Staple: 7.09" x 7.88" - 9.09" x 12.6"
- Paper Size of Corner Staple: LTR LEF/ 8.5 x 11 LEF
- Paper Type: Fine quality: 64 - 127.9 gsm (17 - 33 lb) or Art/ Coated: 104.7 - 127.9 gsm (28 - 33 lb) Cover: Fine quality, Art/ Coated 300 gsm (79 lb) or less
- Paper capacity (Staple & Fold): Fine Quality Paper: 2 - 25 Sheet (1 - 25 Sheets when performing fold only) or Art Coated Paper: 2 - 20 Sheets (1 - 20 Sheets when performing fold only)
- Speed: Up to 2,400 sets/hour* (10 Sheets or less,fine quality paper 81.4 g/m², Saddle Staple and Fold, A5 finished booklets)
- Number Of Stapling Heads: 2
- Programmable Memory: 16
- Power Requirements: 120 - 240V 50/60Hz
- Dimensions (L x W x H): 40" x 22" x 28"
- Weight: 187.2 lbs.
DBM-150T Trimmer
- Booklet Size: 4.14" x 4.27" - 9.06" x 12.6" (105.2 x 108.5 mm - 231 x 320 mm)
- Trimmed Booklet Size: 3.35" x 4.27" - 8.27" x 12.6" (85.1 x 108.5 mm - 210 x 320 mm)
- Trimming Margin: 0.04" - 0.79" (1 - 20 mm)2
- Power Requirements: Supplied by DBM-150
- Dimensions (L x W x H): 56" x 22" x 28"
- Weight: 107.9 lbs.
