Product Description

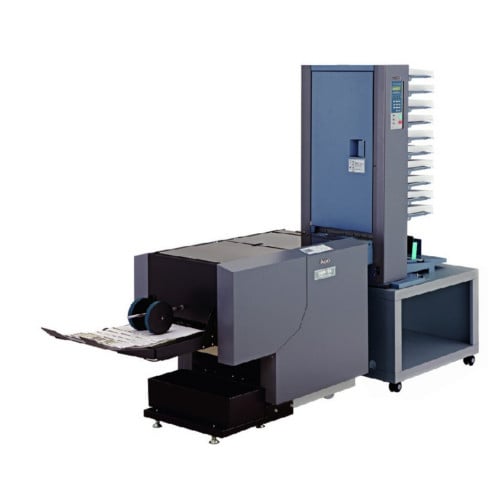

The 150Fr Booklet System is Duplo's entry-level collating and bookletmaking system. Integrating the DFC-100 Friction Feed Collator with the DBM-150 Bookletmaker, the 150Fr Booklet System offers a compact, cost-efficient finishing solution ideal for light commercial printers and in-plants as well as religious and educational institutions. The DFC-100 Collator feeds a variety of stocks including bond, NCR and some coated paper and also offers programmable features for greater productivity including block mode for on-the-run loading, interleave mode for separating batched sets, and a total or remaining counter for monitoring job progress. Each of the 10 bins comes equipped with three feed rollers and individual sheet separator adjustments for increased accuracy and reliability. Equipped with the Isaberg Rapid stapler and staple cartridge, the DBM-150 Bookletmaker produces a high quality, flat staple every time. Each cartridge holds 5,000 staples and wear parts are replaced each time the cartridge is changed out, providing a high level of reliability. The DBM-150 produces corner and side-stapled applications as well as saddle-stapled and folded booklets up to 40 per minute.
Product Details
- Up to 2,400 booklets per hour
- Reliable Isaberg Rapid stapler and staple cartridge
- Bi-directional feeding system for running two different output directions
- 16 job memories for fast setups
- Compact, cost-eff ective system ideal for short-run demands
- User-friendly control panel for easy changeovers
- Optional DBM-150T Trimmer
Specifications
DFC-100 Collator
- Number of Bins: 10
- Bin Capacity: up to 1.10" (350 sheets of 64 gsm)
- Paper Size: 5.83" x 8.27" - 12.60" x 17.72"
- Paper Weight: 52.3 -128 gsm (fine quality, medium quality, medium and some art/coated papers)
- Speed: up to 4,200 sets/hour
- Power: AC 100-240 V 50/60 Hz
- Power Consumption: 1.2 - 0.8a 120w
- Dimensions (W x D x H): 33" x 25" x 40"
- Weight: 143 lbs.
DBM-150 Bookletmaker
- Paper Size : See specification of DFC-100
- Paper Size of Side Staple: 7.09" x 7.88" - 9.09" x 12.6"
- Paper Size of Corner Staple: LTR LEF/ 8.5 x 11 LEF
- Paper Type: Fine quality: 64 - 127.9 gsm (17 - 33 lb) or Art/ Coated: 104.7 - 127.9 gsm (28 - 33 lb) Cover: Fine quality, Art/ Coated 300 gsm (79 lb) or less
- Paper capacity (Staple & Fold): Fine Quality Paper: 2 - 25 Sheet (1 - 25 Sheets when performing fold only) or Art Coated Paper: 2 - 20 Sheets (1 - 20 Sheets when performing fold only)
- Speed: Up to 2,400 sets/hour* (10 Sheets or less,fine quality paper 81.4 g/m², Saddle Staple and Fold, A5 finished booklets)
- Number Of Stapling Heads: 2
- Programmable Memory: 16
- Power Requirements: 120 - 240V 50/60Hz
- Dimensions (L x W x H): 40" x 22" x 28"
- Weight: 187.2 lbs.
DBM-150T Trimmer
- Booklet Size: 4.14" x 4.27" - 9.06" x 12.6" (105.2 x 108.5 mm - 231 x 320 mm)
- Trimmed Booklet Size: 3.35" x 4.27" - 8.27" x 12.6" (85.1 x 108.5 mm - 210 x 320 mm)
- Trimming Margin: 0.04" - 0.79" (1 - 20 mm)2
- Power Requirements: Supplied by DBM-150
- Dimensions (L x W x H): 56" x 22" x 28"
- Weight: 107.9 lbs.
DFC-S Corner and Side Stapler Unit
- Paper Size : 5.5" x 8.5" - 10.25" x 14.25"
- Speed: 25/35/40 sets per minute (selectable from the collator)
- Operations: Corner, counter corner, and side stapling
- Staple Capacity: 2 - 24 sheets (52.3 + 81.4 gsm)/ 2 - 15 sheets (52.3 - 127.9 gsm)
- Power Consumption: 120V 60Hz 55W
- Dimensions (L x W x H): 37.25" x 20" x 9.75"
- Weight: 64 lbs. (including paper tray, excluding punch unit)
