Product Description

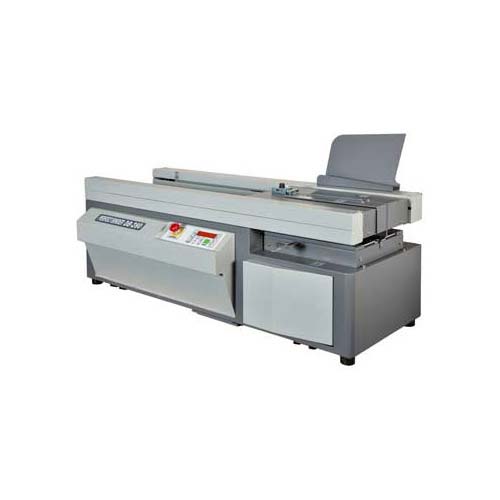

Looking for a high volume binding machine with simple application and instructions? The Duplo DB-280 Perfect Binder provides the high-quality binding with user-friendly process. This amazing machine is capable to bind up to 290 sheets per cycle, creating up to 200 books per hour. Clamping and nipping system design provides a consistent square binds, ensuring the perfect product from start to finish. Full LED display which features stand-by mode and error detection display, providing total control in the hands of the operator. With additional dust extractor, two glue drums and additional glue capacity, the DB-280 is the essential tool to any short-run and on-demand printing offices. Aside from binding, it can also do tape binding, case binding and padding. Conquer all your binding needs with the Duplo DB-280 today.
Product Details
- Maximum Book Size: 12.6" x 15.75" (320 mm x 400 mm)
- Minimum Book Size: 3.15" x 1.97" (80 mm x 50 mm)
- Maximum Cover Size: 12.6" x 33" (80 mm x 838.2 mm)
- Maximum Binding Thickness: 1.6" (40 mm)
- Glue Warm-up: 25 minutes (Varies upon glue type)
- Glue Warm-up: in Stand-by Mode 5 minutes
- Cycle Speed: Up to 360 cycles per hour
- Production Speed: Up to 200 books per hour
- Operation Modes: Pad, tape, cover
- Standard Features: Dust extraction, stand-by mode, LED display, error detection display
- Power Source: 110V 60Hz 15A (op?onal 220V 50Hz)
- Power Consumption: 10 amps
- Dimensions: 50" x 22" x 19"
- Weight: 263 lbs.
- Part Number: DF-920
Specifications
- Makes a wide range of book sizes from 1.97" x 3.15" to 12.6" x 15.75"
- Single-operator design for greater productivity
- Fast and easy setup and changeover
- Unique notching method provides maximum glue penetration
- Improved clamping and nipping system
- Dust removal
