Product Description

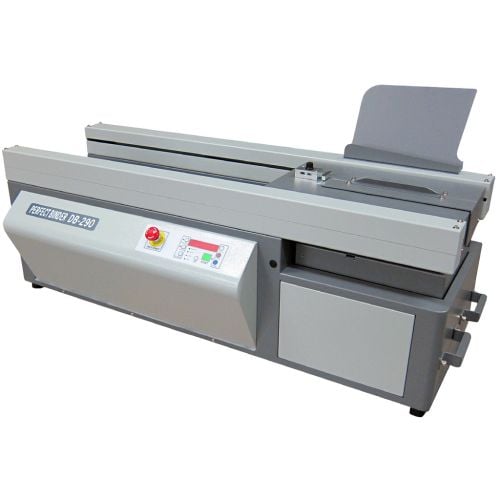

The user-friendly and automatic Duplo DB-290 Desktop Perfect Binder brings professional perfect binding to your desktop. Producing up to 200 books per hour, the DB-290 is ideal for short-run, on-demand applications. With the automated performance and other outstanding features typically reserved for more expensive machines, this perfect binder provides centrally-located controls for single-operator efficiency. Simply place flat sheets into the clamp where pages are gripped automatically and the binding process begins. A double pass over the roughening cutter provides superior notching for superb glue penetration. Its clamping and nipping system ensure consistent square binds. The DB-290 Perfect Binder offers easy changeover to tape binding and two different tapes sizes are available. Other enhancements include new milling and notching blades along with a new side glue tank for improved glue application and binding. The side glue provides better adhesion and helps form the book spine. The clamp also features a newly, redesigned double rail for enhanced binding performance.
Product Details
- Max. Book Size: 12.6" x 15.75" (320 mm x 400 mm )
- Min. Book Size: 4.72" x 1.97" (120 mm x 50 mm)
- Max. Cover Size: 12.6" x 33" (320 mm x 838.2 mm )
- Max. Binding Thickness: Up to 1.6" (40 mm)
- Glue Warm-up: 25 minutes
- Glue Warm-up in Stand-by Mode: 5 minutes
- Cycle Speed: Up to 360 cycles per hour
- Production Speed: Up to 200 books per hour
- Operation Modes: Perfect bind (manual & auto); Tape bind, pad (manual)

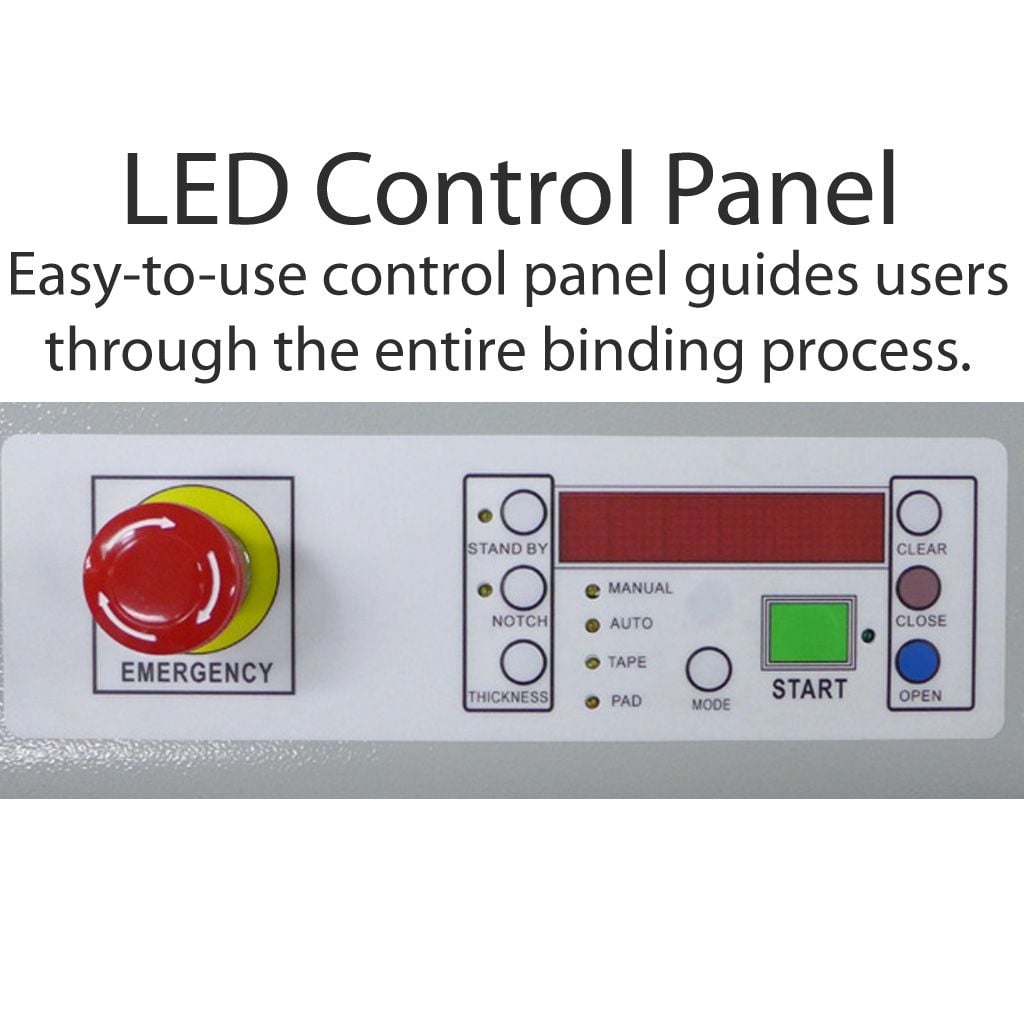

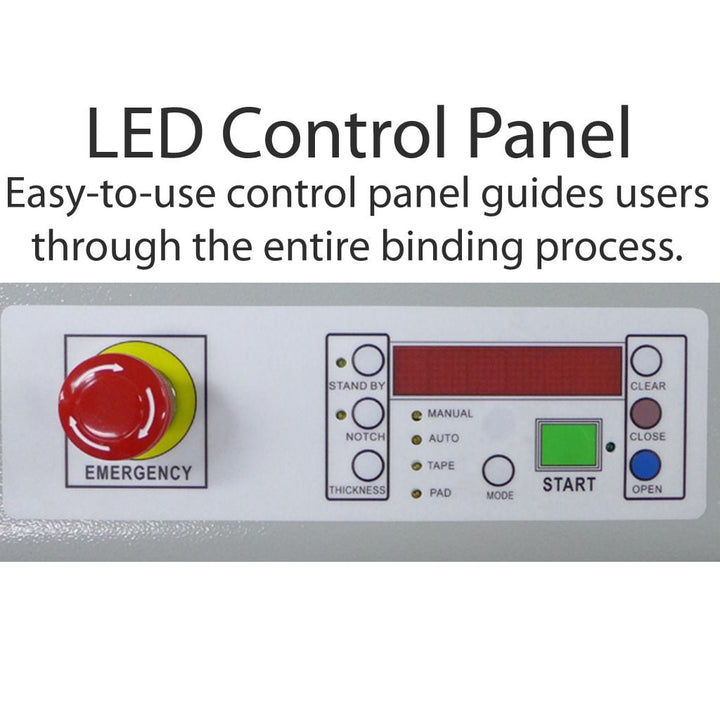

- Standard Features: Dust extraction, stand-by mode, LED display, side glue,
error detection display, notching & roughing blade - Tape Width: Large 1.75" (43 mm) Max. binding thickness 1" (25.4 mm);
Small 1.18" (30 mm) Max. binding thickness 0.5" (12.7 mm)
(All tape are 11" long and in color black.) - Power Source: 110V 60Hz 15A (optional 220V 50Hz)
- Power Consumption: 13 Amps max.
- Dimensions (L x W x H): 51.2" x 22" x 18.5"
- Weight: 271 lbs.
- Manufacturer's Warranty:1 year on mechanical parts / 90 days on electrical parts / 90 days on consumable parts
- Option: Stand
Specifications
- Makes a wide range of book sizes from 4.72" x 1.97" to 12.6" x 15.75".
- Single-operator design for greater productivity.
- Fast and easy setup and changeover.

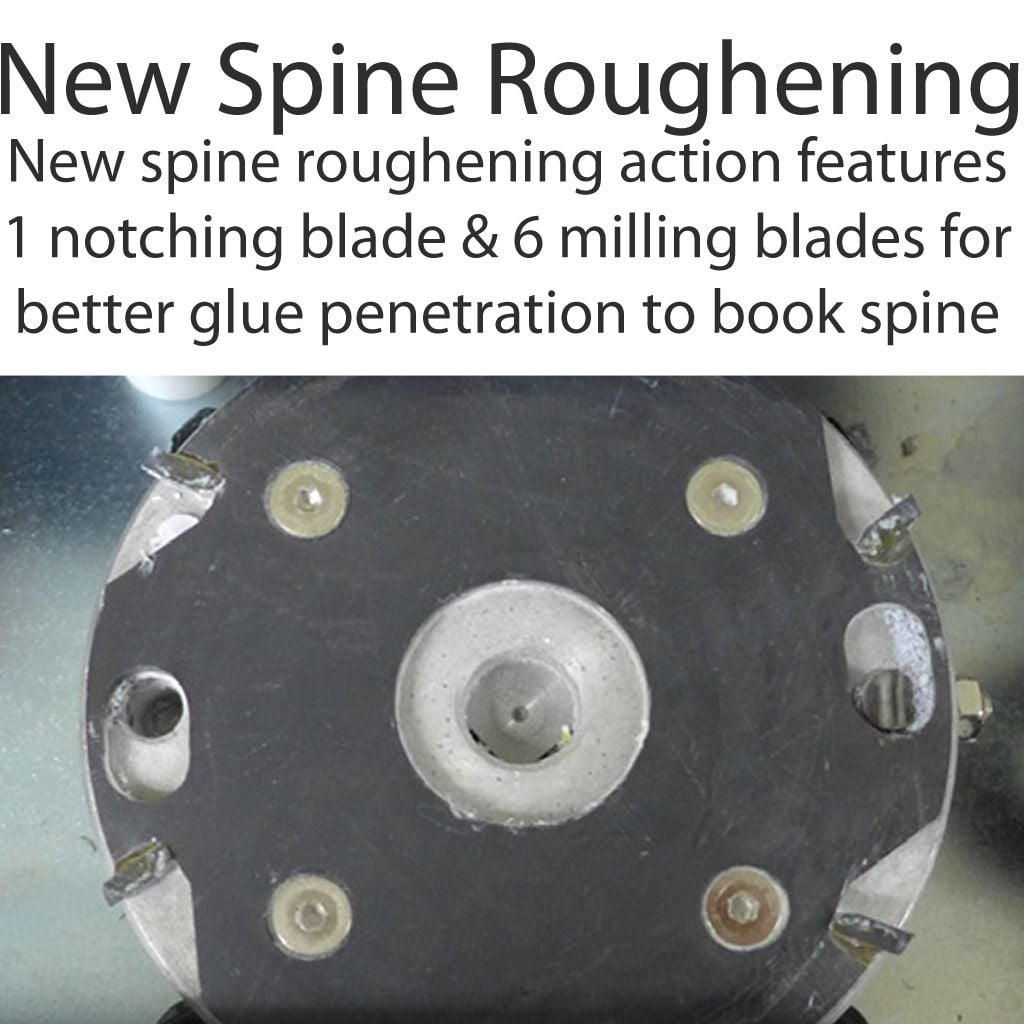

- Unique roughing and notching method provides maximum glue penetration.

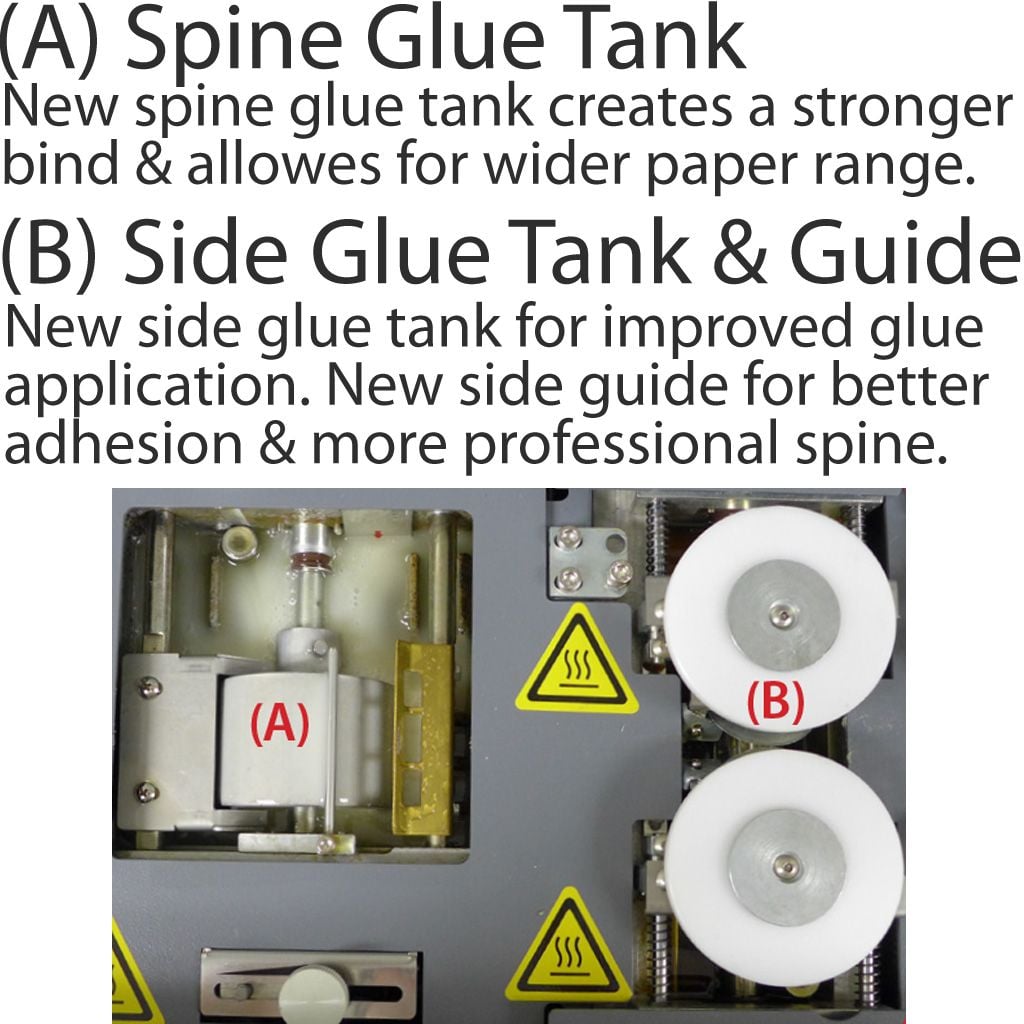

- Side glue provides better adhesion for professionally finished book spines.
- Improved clamping and nipping system.
- Easy changeover to tape binding with two different tape sizes available.
- Dust removal.
Consumables
| Product Name | Item Number |
| Duplo Hot Melt Spine Glue for DB-250/280/290 Perfect Binders (35lb/Box) | AAG-DB290SPINEGLU |
| Duplo Side Glue for DB-290 Perfect Binding Machine | AAG-DB290SIDEGLUE |
