Product Description

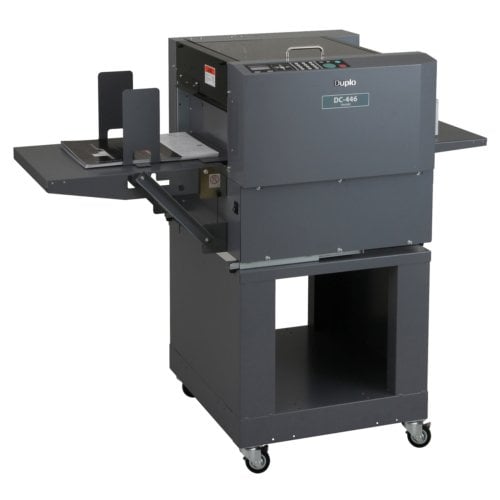

Say goodbye to toner cracking and unattractive fold lines on documents with the Duplo DC-446 Automatic Creaser. The DC-446 creases a wide range of applications at up to 60 sheets per minute. The DC-446 handles a maximum paper width of 330.5mm to accommodate 13" x 19" paper sizes. It also features an 8-belt air suction feed system with changeable air blower area for consistent feeding of difficult stocks and weights. The DC-446 applies up to 20 creases in a single pass with great precision and is perfect for creating unique accordion applications and other color documents that require a fold right along the color break. This Duplo DC-446 Creaser is fully automatic and easy to use creaser that is ideal for finishing short-run offset and digital applications such as greeting cards, postcards, brochures, book covers, and more. A number of optional features are also available to maximize its functionality. An air-knife provides additional air to improve feed consistency and reduce static problems while double-feed detectors stop the machine when two or more sheets are fed, thus preventing mis-feeds and paper jams. Additionally, slitting and perforating modules can be added to eliminate white borders and create perforated pieces. Up to three slitting and perforating modules can be installed for increased versatility.
Product Details
- Feeder Capacity: 3.9" (100 mm)
- Input Paper Weight: 110 - 350 gsm (80 lb. text - 130 lb. cover); 16 pt. paper
- Input Paper Size: Minimum 5.5" x 5.9" (140 mm x 150 mm); Maximum 13" x 26.4" (330.5 mm x 670 mm)
- Tolerance: ±0.3 mm
- Speed: 60 sheets per minute (letter size, 1 crease)
- Feeder Type: Air suction
- Fan Registration: Yes, with feed system
- Crease: Up to 20
- Crease Depth Adjustment: Yes, 3 steps via control panel
- Options: Air knife; double-feed detection; slitters; perforation wheels; cabinet; IFS
- Job Storage: Up to 30
- Dimensions (w) x (d) x (h): 50" x 25" x 23" (in use); 65" x 25" x 23" (with optional long paper tray); 50" x 25" x 45" (with cabinet)
- Weight: 175 lbs. (main unit)
- Power: 115VAC 60Hz 1.7A; 230VAC 50/60Hz 0.8A
Specifications
- Up to 20 creases in a single pass.
- Process up to 60 sheets per minute.
- Fully automated setup.
- 3.9" feed capacity.
- 30 memory settings.
- Top air-suction feeding system with optional air knife.
- Optional slitting and perforating modules.
- No operator experience required.
