Product Description

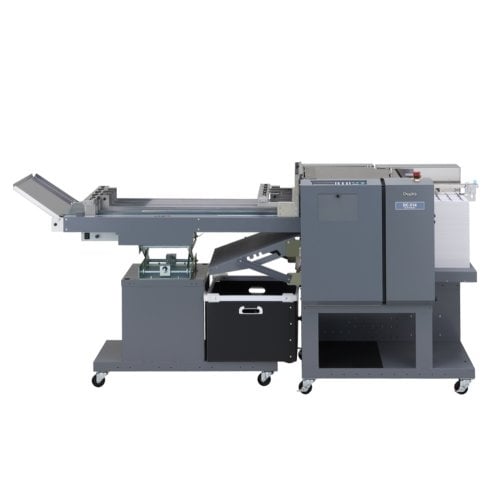

The Duplo DC-516 Pro Multi-Finisher is featured with 1 slitting module, 1 cutting module, 1 creasing module, and a 14" high capacity feeder and long conveyor stacker. It automatically cut 24-up business cards on 13" x 19" sheets or 36-up cards on 14" x 20" stock within seconds. It comes standard with both cutting and slitting modules and can apply up to 30 cuts per sheet. The slitting module includes 6 tools and up to 10 slits can be applied (additional 4 slits optional). Slitting tools are manually adjusted and cuts are set through the control panel.With DC-516 Pro you can prevent toner cracking by creasing brochures and book covers prior to folding at up to 100 sheets per minute. Its creasing module features a new dual creasing tool that can be switched interchangeably to perform positive and negative patterns. To perform positive and negative creases in one pass, a second creasing module is required. Each module applies up to 20 creases per sheet. If you are looking for a high-speed finishing equipment for your busy and high production environments, then you never go wrong with Duplo DC-516 Pro Multi-Finisher.
Product Details
- 14" feed capacity and long conveyor stacker.
- Cuts high volume 24-up and 36-up business cards.
- Creases up to 100 sheets per minute.
- Applies positive and negative creases with new dual creasing tool.
- Handles paper up to 400 gsm on 14" x 26" sheet sizes.
- Built-in REG mark scanner compensates for image shifts in horizontal direction.
- Standard apply shrinkage control for image shrinking due to high fusing temperatures and moisture content loss.
- Coming Soon! Rotary tool and cross perforating modules with strike-perforating capabilities.
Specifications
- Input Paper Size: Width: 5.5" x 14.6" (140 – 370 mm) / Length: 5.9" x 26.37" (150 – 670 mm)
- Paper Weight: 110 - 400 gsm
- Speed:
- Creasing: 100 ppm (6,000 sheets per hour) 8.5" x 11" SEF 1 crease
- Cutting: 12 sheets per minute (720 sheets per hour) 13" x 19" 24-up business cards
- Feeder Capacity: 14.2" (360 mm)
- Image Shift Compensation: Laser Scanner reads REG mark in horizontal direction
- Slits: 6 standard slitter tools / Optional slitter tools can be installed for a maximum of 10 slits
- Cuts: Up to 30 cuts per sheet
- Creases:
- Up to 20 creases per sheet with each module
- Positive and negative creasing capabilities
- Two creasing modules are required for up and down creasing
- Power Requirements: 115V: 5.5A 50/60hz
- Standard Features: 250 job memory in main unit, test feed (1 sheet); air knife; side air; feed skew adjustment; ultrasonic double-feed detection; REG mark scanner
- PRO Model: Included with 1 creasing module, 1 cutting module, 1 slitting module and long conveyor stacker
- Base Model: Includes 1 creasing module; all other options can be configured according to user’s needs (available mid-2018)
