Product Description

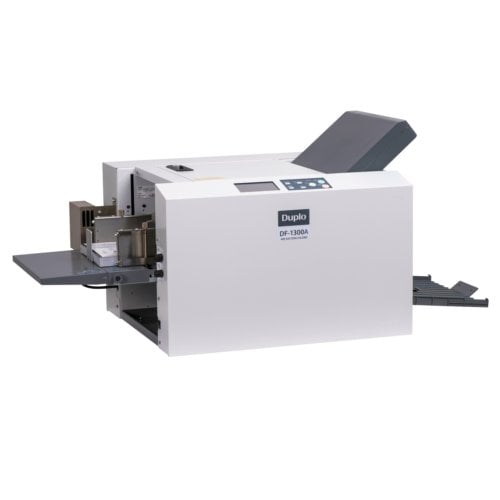

Duplo USA proudly brings the new and improved air suction paper folder, the DF-1300A. It has the same great features of its predecessor DF-1200 but with the higher folding speed, more job memories to store custom folds, a new color LCD control panel as well as standard side air and ultrasonic double feed detection.Equipped with Duplo's signature air suction feed system, the DF-1300A delivers professionally folded documents at a speed of up to 310 sheets per minute. It comes pre-programmed with six standard fold types and utilizes both optical and ultrasonic sensors to accurately detect double feeds.Choose from single, double, letter, gate, accordion and half accordion folds without any adjustments required or reprocess single folded sheets into cross folds. It automatically detects standard paper sizes such as letter, legal, ledger, half letter and half legal. Plus, you can easily create custom fold styles with non-standard paper sizes by simply moving the fold plates via the color touchscreen panel and save it in one of the 30 job memories for future use.If you are looking for an easy-to-use and fully automated air suction paper folding machine, then the DF-1300A is the perfect paper folder for you.
Product Details
- Paper Size: 4.73" x 7.2" - 12.2" x 18"
- Paper Weight: Uncoated paper: 52.3 to 157 gsm/14-40 lb. Coated paper: 73.3 to 157gsm/19-40 lb. (For A4, letter, short grain, single fold, 230 gsm or less can be used.)
- Speed: Up to 310 sheets per minute (Letter size, 81.4 gsm, bond paper, single fold)
- Feeding Tray Capacity: Up to 625 sheets/64 gsm
- Paper Quality: Bond, NCR, offset, cover stock, and coated paper
- Folding Modes: Single, double, half accordion, letter, accordion, gate, custom
- Counter: Ascending, descending, and batch mode
- Features: Air suction feed system, optical and ultrasonic double feed detection sensors, sound absorbers, low noise level, wireless plate, five speed levels, test button, power save mode, automatic paper size detection and fold plate setting, and side air.
- Sound Level: 74.3 db
- Feeding Mechanism: Air suction belt
- Custom Fold Memory: 30
- Power Supply: 100V - 240V 50/60Hz
- Power Consumption: 1.0 - 0.5A (88W)
- Dimensions (W x D x H): 47" x 23.2" x 21.30"
- Weight: 148.8 lbs.
Specifications
- Air suction feed system ideal for digitally printed output.
- High speed folding up to 310 sheets per minute.
- 4.3" color LCD touch panel for easy operation.
- Six pre-programmed fold styles.
- 30 job memories for custom folds.
- Automatic paper size detection and fold plate setting.
- Optical and ultrasonic sensors for double feed detection.
- Side air for feeding heavy stock and large paper sizes.
- Built-in absorbers for quiet operation.
- 625-sheet (64 gsm) feed tray capacity.
