Product Description

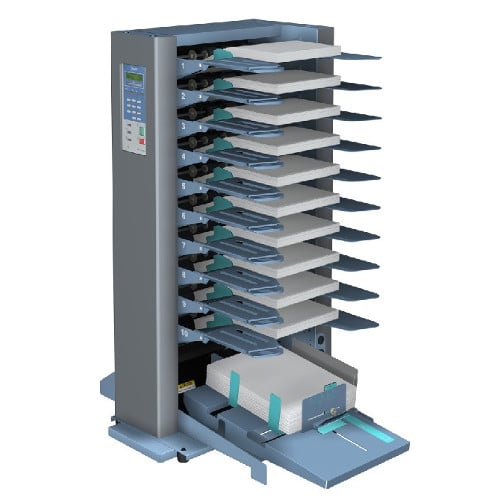

The Duplo DFC-100 10-Bin Friction-Feed Collator are high speed, easy to use friction collators, expandable up to 20 stations with reliable feeding and accurate stacking. Working standalone or as part of a collating/booklet making system with the DBM-150 booklet maker, the DFC-100 offers a cost effective solution for finishing needs.
Specifications
- Model Type: Friction feed vertical collator
- No. of bins: 10bins
- Paper Size: MAX: A3SR (320 x 450 mm) or MIN: A5 (148 mm x 210 mm)
- Paper Type : Medium quality paper, Fine porous paper, fine quality paper (52.3 to 128 gsm)
- Paper feed bin capacity: 28 mm equivalent to Fine quality paper 64gsm, 350 sheets
- Maximum Process Speed: 70 sets / min (A4 short edge feed and long edge feed, A5 lone edge feed, INV long edge feed overlap: None, Block mode
- Paper Stack: Straight, Offest
- Paper Stack Capacity : 70 mm (detected by paper full sensor)
- LCD: 4-digi counter (count up/count down)
- Paper feed bin detection : Preset function memorizes bins to be used
- Paper feed error detection: Empty feed, double feed, paper jam
- Other Functions : No paper detection, conveyance cover open/close detection, paper receiving table full, downstream unit error detection, paper set jam
- Power Supply : AC 100 - 240V, 50/60 Hz
- Power consumption : 1.2 - 0.8 A 120W
- Dimensions: 820 mm(W) x 618mm(D) x 1000mm (H)
- Weight: 65 kg
- Warranty:1 year on mechanical parts / 90 days on electrical parts / 90 days on consumable parts
- Part Number: DFC-100
