Product Description

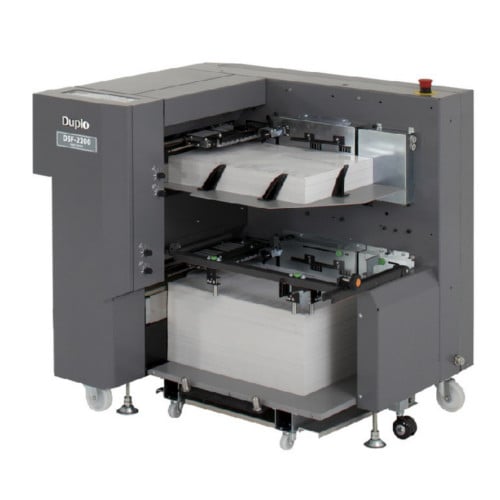

This Duplo DSF-2200 Document Sheet Feeder feeds up to 200 sheets per minute, making it as the perfect option for short to mid-volume jobs. The DSF-2200 comes with high-end features such as belt suction feed system, front and side air separation, an anti-static device and ultrasonic double feed detection for enhanced feed reliability. It feeds increased paper sizes up to 14" x 20" (or 9.05" x 24" via optional Extension Tray Kit) and offers a variety of options including a trail edge air kit, pre-loading kit, and 1D & 2D barcode readers. The Duplo DSF-2200 Document Sheet Feeder connects to most Duplo bookletmakers such as DBM120SXS/120T, DBM150/150T, DBM350/350T, DBM500/500T, DBM600/T and iSaddle.
Product Details
- Number of Bins: 2
- Separation: Front air (fan); side air (fan); optional trail edge (pump)
- Feeding System: 8 belts with 40 square inches of suction (fan)
- Paper Loading Capacity: Tray A: 2.56" (65 mm); Tray B: 7.87" (200 mm)
- Paper size: Length: 7.87" - 20" (200 - 508 mm) (Up to 24"/610 mm with optional Extension Tray Kit); Width: 4.13" - 14.02" (105 - 356 mm) (7.87" - 9.05"/200 - 230 mm with optional Extension Tray Kit)
- Paper Type: Art/coated paper; laminated paper 79 - 300 gsm; fine paper 52.3 - 300 gsm
- Processing Speed: Up to 200 sheets/minute (A4 SEF)
- Control Panel: Liquid crystal display unit with main controls through PC interface
- Additional Functions: Ultrasonic double-feed detection; end mark detector (sensor); anti-static device; alternate feed function
- Dimensions (L x W x H): 37" x 30" x 34"
- Power: 100 - 240V 50/60Hz 2.6A 2.6 - 1.1A
- Power Consumption: 260W
- Weight: 254 lbs.
- Options: PC Controller; Trail Edge Air Kit; Preload Kit; Extension Tray Kit; Barcode Kit
- Part Number: DSF-2200
Specifications
- Compact and powerful
- Processes up to 200 sheets (up to 300 gsm maximum paper weight) per minute depending on connected devices
- Offers the same features as that of higher-end models
- User-friendly PC Controller allows operator full system control from one console
- Quantity of job memories limited only by size of hard drive
- Feed tray selection for better tray optimization and feed flexibility
- Barcode Reader option allows for variable data processing and set integrity checking for sensitive information
- Maximum 14" x 20" paper size or 9.05" x 24" with optional Extention Tray Kit
- Equipped with ultrasonic feed detection and anti-static device for superior accuracy and flexibility to process wide range of stocks and printed media
Optional Accessories Details
Product Name
- Barcode Reading Kit (AAO-DSF2200BCKIT)
- Extension Tray Kit (AAO-DSF2200EXTKIT)
- Additional B Tray (15C-90701)
- Trail Edge Air Separator (AAO-DSF2200TEAKIT)
- Pre-Load Kit (AAO-DSF2200PLKIT)
- Barcode Reading Kit for DSF-2200, inculded barcode scanners for Tray A & B.
- Extension Tray Kit for DSF-2200.
- Additional B Tray for DSF-2200.
- Trail Edge Air Separator for long sheets and paper that require an added level of air separation due to static.
- Pre-Load Kit allows paper to be conveniently prepared and staged prior to loading into the DSF-2200.
