Product Description

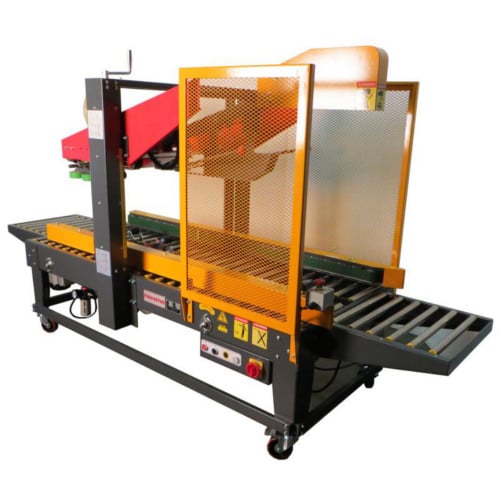

The operator simply folds the top flaps of the corrugated carton and feeds it into the machine. The CT-55 applies a single tape strip to both the top and bottom of the case simultaneously. This four belt drive design is a heavy duty versatile machine designed for dependable performance and easy operation. The CT-55 can be easily adjusted in only seconds to process a different size carton. Excellent for wider, taller heavier boxes.
Product Details
- Piranha Tape Head with “Easy Thread” Design.
- Interchangeable Tape Heads.
- Side Pressure Rollers to Close Box Top.
- 2 Top & 2 Side Drive Belts.
- Fully Adjustable Legs From.
- Optional Features: 3" (72mm) Tape Heads, Infeed Conveyor, Exit Conveyor, Stainless Steel Frame, Heavy Duty Locking Casters
Specifications
- Carton Size:Length: 8" min. to 21.5" max., Width: 8" min. to 20" max. (8.9" on 3" Head), Height: 4.75" min. to 20" max.
- Machine Size:80"L x 35"W x 64"H
- Machine Speed:75ft./min. up to 2000 cartons per hour (Production rate depends on carton size and operator dexterity)
- Electrical:110 Volt, I Phase, 10 Amp
- Weight:715 lbs. (Shipping Weight: 775 lbs.)
- Max Box Weight:75lbs.
- Tape Head Specs:2" (48mm) Wide - 1,000 yard or 1,500 yard rolls.
- Warranty:1 Year on all parts
- Part Number: PP-558F
