Product Description

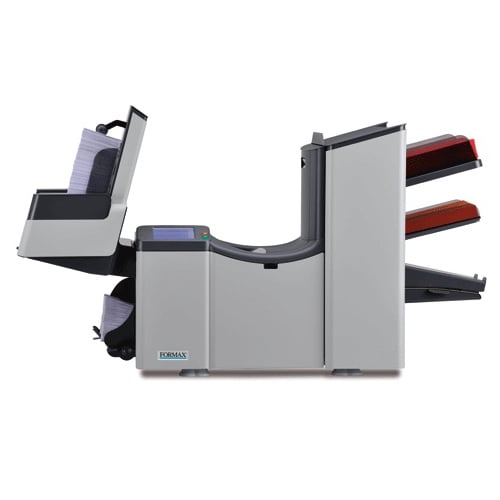

The 6304 Series Inserters combine user-friendly features with high productivity. Three base models are available in a variety of configurations to meet the needs of any size office or mailroom. Standards insert feeders accommodate up to 325 sheets each, and the standard catch tray holds up to 200 filled envelopes. For increased productivity High-Capacity configurations are available, which include a Vertical Stacker that holds up to 500 finished envelopes, a Document Feeder that holds up to 725 sheets, and/or a Production Feeder, with a capacity of up to 325 BREs or short inserts. Options include Advanced OMR and BCR, Formax MailDoc Software, short feed trays and a side exit tray. A full-color touchscreen control panel, combined with 25 programmable jobs, provides efficient and hassle-free operation. The 6304 Series is powerful enough to fold up to 8 pages in tri-fold and up to 10 pages in half-fold modes. Its versatility allows for processing forms of various lengths and thickness all at the same time, up to 3,600 per hour and up to 40,000 pieces per month. The exclusive AutoSet feature makes processing forms a snap by sensing and automatically setting the paper length, paper thickness, fold type, envelope size and double document detection.
Product Details
- 3 models available, with various configurations
- AutoSet one-touch setup
- Fully automatic adjustments
- 25 programmable fold applications

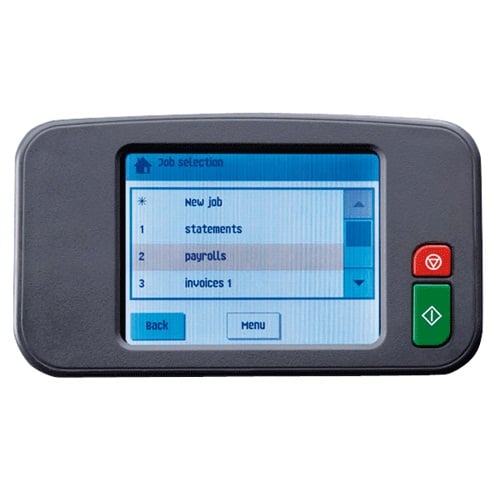

- Full-color touchscreen control is easy to use
- Processes up to 3,600 pieces per hour, and up to 40,000 pieces per month
- Clamshell design for easy access to paper path
- Seal and non-seal capabilities
- Two counters: One resettable for addition and batch counting, and one non-resettable
- Four adjustable insert fingers
- Double document detection
- Folds and inserts up to 10 pages in half-fold, up to 8 pages in tri-fold
- Low noise level, ideal for any environment
- Fold types: C, V, Z, Double Parallel, No Fold
Specifications
- Speed: Up to 3,600 pieces per hour
- Duty Cycle: Up to 40,000 pieces per month
- Standard Feeders: Up to 325 sheets each, 20lb
- Envelope Hopper: Up to 325 envelopes, top-loading
- Sheet Size: 3.5" - 14" H x 5" - 9" W
- Sheet Weight: 16 - 45lb (folder), 16 - 62lb
- Envelope Size: 3.5" - 6.4" H x 5.5" - 9.8" W
- Set Thickness: Up to 2.5mm
- Dimensions: 51" L x 29" H x 18" W
- Weight: 165 lbs.
- Power: 120 Volts AC 60Hz
- Warranty: 90 Day Manufacturer Warrantyy
Packages
Formax 6304 Additional Packages:
- FD 6304 - Standard 3: Inserter - Three Station with 3 Standard Feeders (Typically a Stock Model)
- FD 6304 - Standard 3I: Inserter - Three Station with 3 Standard Feeders, BCR Basic and MailDoc Beginner Software
- FD 6304 - Special 3: Inserter - Three Station with 2 Standard Feeders, 1 Special Feeder on Bottom
- FD 6304 - Special 3I: Inserter - Three Station with 2 Standard Feeders, 1 Special Feeder on Bottom, BCR Basic and MailDoc Beginner Software
- FD 6304 Standard 2F: Inserter - Two Stations with 1 High Capacity Document Feeder and 1 Standard Feeder
- FD 6304 Standard 2FI: Inserter - Two Station with 1 High Capacity Document Feeder, 1 Standard, BCR Basic and MailDoc Beginner Software
- FD 6304 Standard 2FS: Inserter - Two Stations with 1 High Capacity Document Feeder, 1 Standard Feeder and Vertical Stacker
- FD 6304 Standard 2FIS: Inserter - Two Stations with 1 High Capacity Document Feeder, 1 Standard Feeder, Vertical Stacker, BCR Basic and MailDoc Beginner Software
- FD 6304 Special 2F: Inserter - Two Stations with 1 High Capacity Document Feeder, 1 Special Feeder on Bottom
- FD 6304 Special 2FI: Inserter - Two Stations with 1 High Capacity Document Feeder, 1 Special Feeder on Bottom, BCR Basic and mailDoc Begginer Software
- FD 6304 Special 2FS: Inserter - Two Stations with 1 High Capacity Document Feeder, 1 Special Feeder on Bottom, and Vertical Stacker
- FD 6304 Special 2FIS: Inserter - Two Stations with 1 High Capacity Document Feeder, 1 Special Feeder on Bottom, Vertical Stacker, BCR Basic and MailDoc Beginner Software
