Product Description

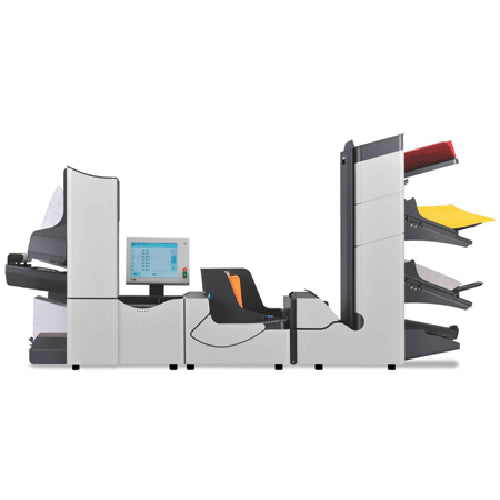

Take your folding and inserting process to the next level by choosing the Formax 6604 Advanced Folding and Inserting Series. Modular design with the capability to add up to 7 feed stations; it is the ultimate combination machine. The 6604 Series all features a large, bright in color 10.4" reversible full-color touchscreen control panel. Formax designed the control panel with the operator in mind with improved ergonomics, higher contrast, quicker response, and the ability to tilt the screen. If you desire great throughput, then look no further. The 6604 Series have a high-capacity envelop hopper and conveyor stacker double the average volumes, with each holding 1,000 envelope. The 6604-Standard models have all automatic feeders, while the 6602-Special models only offered two special feeders (4 or 6-station) or one special feeder (2-station), with the remaining feeders automatic. Each configuration is also available as a "B" model for inserting bottom-address documents into top-flap envelopes. Standard features include a reversible full-color touchscreen control panel, a large power stacker which can hold up to 500 filled envelopes, along with a large top-loading envelope hopper with a capacity of up to 500 envelopes. Upgrade your 6602 to the incredible and powerful 6604 series today!
Product Details
- Modular design with up to 7 feed stations
- AutoSet: One-touch set-up

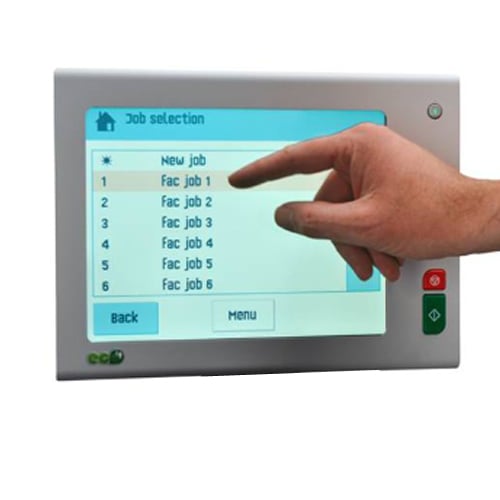

- 10.4" Full-color touchscreen control panel
- 25 programmable jobs

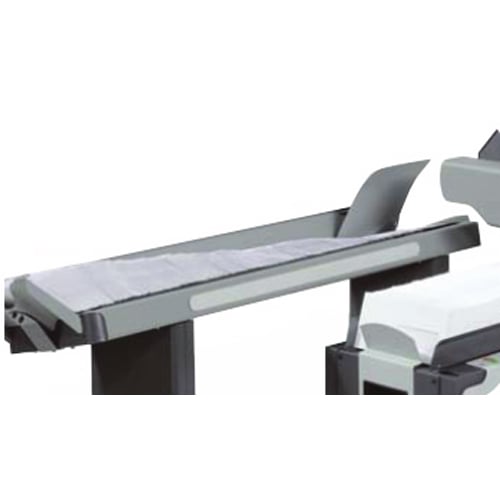

- Large power stacker hold up to 500 filled envelopes, with reverse stacking output to maintain original order of documents
- Side exit tray holds up to 500 filled envelopes

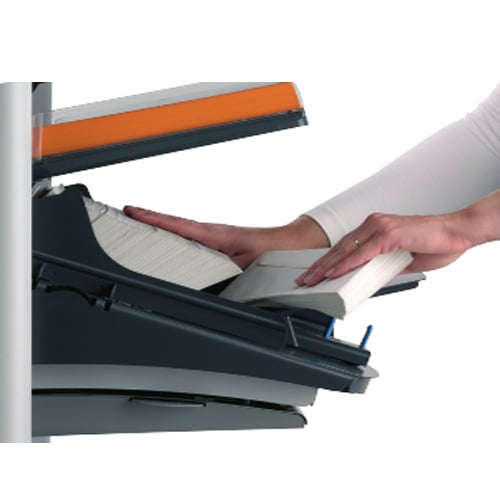

- Large, top-loading envelope hopper holds up to 500 envelopes for continuous operation
- Two double-document detectors provide exceptional security
- Diverter: Sensors redirect double documents and incomplete sets without interruption
- Processes up to 4,300 envelopes per hour
- Fold types: C, Half, Z, Double Parallel and no fold
- Folds up to10 sheets of paper (Half-fold) and up to 8 sheets (Tri-fold)
- Automatic standby mode for energy efficient
Specifications
- Speed: Up to 4,300 pieces per hour/ #10 envelopes

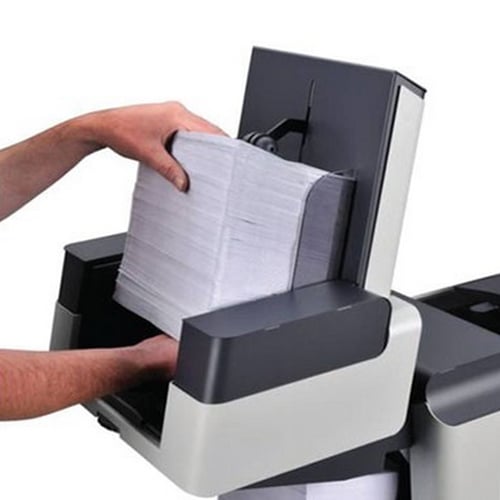

- Feed Hopper Capacity: Up to 325 sheets 20lb paper
- Envelope Hopper Capacity: Up to 500 envelopes, top- loading
- Power Stacker: Up to 500 filled envelopes
- Side Exit Tray: Up to 500 filled envelopes
- Paper Size: 3.5" - 14" L x 5" - 9" W
- Envelope Size: 5.5" - 9.8" W x 3.5" - 6.4" H
- Dimensions: 18" W x 63" L x 36" H (six-stations)
- Weight: 308 lbs. (six-stations)
- Duty Cycle: Up to 80,000 pieces per month
- Power: 110 VAC (60 Hz)
- Safety Certification: UL, CSA certified
- Warranty: 90 Day Manufacturer Warranty
Packages
Formax 6604 Series Advanced Folder Additional Packages:
- FD 6604 Standard 2: Inserter - Two Stations with 2 Standard Feeder
- FD 6604 Special 2: Inserter - Two Stations with 1 Standard Feeder and 1 Special Feeder
- FD 6604 Standard 3F: Inserter - Three Station with 1 High Capacity Standard Feeder and 2 Standard Feeders
- FD 6604 Special 3F: Inserter - Three Station with 1 Special Feeder, 1 Standard Feeder and 1 High Capacity Document Feeder
- FD 6604 Standard 4: Inserter - Four Stations with 4 Standard Feeders
- FD 6604 Special 4: Inserter - Four Stations with 2 Standard Feeders and 2 Special Feeders
- FD 6604 Standard 5F: Inserter - Five Station with 4 Standard Feeders and 1 High Capacity Document Feeder
- FD 6604 Special 5F: Inserter - Five Station with 2 Special Feeders, 2 Standard Feeders and 1 High Capacit Document Feeder
- FD 6604 Standard 6: Inserter - Six Stations with Standard Feeders
- FD 6604 Special 6: Inserter - Six Stations with Two Special Feeders
- (All Variations of the FD 6604 are not available for Mix-and Match multi-machine discounts)
