Name: Formax 7100 Basic 1 High Volume Modular Inserter
Brand: Formax
SKU: FD7100

Product Description

The easily adaptable 7100 Series Inserters create professional, high-quality mail pieces in minutes, saving both time and money. The truly modular design supports a wide range of mailing applications, accommodates a large variety of envelope sizes and processes forms with top, middle and bottom address positions. Three base models are available to use as is or can be expanded to meet your needs, the FD 7100-Basic 1 with one sheet feeder and daily mail, the FD 7100-Basic 3 with three sheet feeders and daily mail and the FD 7100-Advanced 2 with a double insert feeder. The 7100 Series ability to handle mailing packets up to 1/4" thickness lends itself to a variety of applications including marketing collateral, invoices, monthly statements, booklets and more. This flexibility accommodates virtually all of your company's mailing needs. The space-saving design and ease of operation combined with heavy duty construction and durability make these inserters ideal for both the office and the mailroom environment.

Product Details

Modular design from 1 to 9 feeders
Automatic job set-up
20 programmable jobs
Sheet feeder capacity of up to 500 sheets

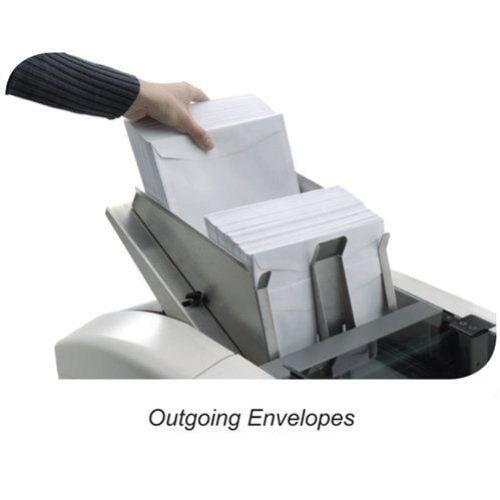

Envelope feeder capacity of up to 400 envelopes
Process up to 4,500 envelopes per hour
Fold types: C, Half, Z, Double Parallel and no fold
Folds up to 8 sheets of 20lb paper
Accommodates top, middle and bottom address positions with 3-plate folder (Basic 1 & 3 models)
Process mail pieces up to 1/4" thick
Dedicated hand feeding station (Basic 1 & 3 models)

Specifications

Speed: Up to 4,500/ hour #10 envelopes
Feed Hoppers: Up to 500 sheets 20lb paper top tray, 250 sheets lower trays
Envelope Hopper: Up to 400 envelopes, top-loading
Sheet Size & Weight: 5.5" - 16" H x 5.5" - 9" W / 16lb - 32lb
Insert Size & Weight/Thickness: 3" - 6" H x 5.5" - 9.5" W / 16lb to 5/32" thick
Envelope Size: 3.5" - 6.5" H x 6.0" - 10.375" W
Set Thickness: 1/4" (6mm)
Dimensions: 130" L x 59" H x 21" D (four-module configuration)
Weight: 715 lbs. (four-module configuration)
Duty Cycle: Up to 150,000 pieces per month
Power: 110 VAC (60 Hz)
Safety Certification: UL, CSA certified
Warranty: 90 Day Manufacturer Warranty
