Product Description

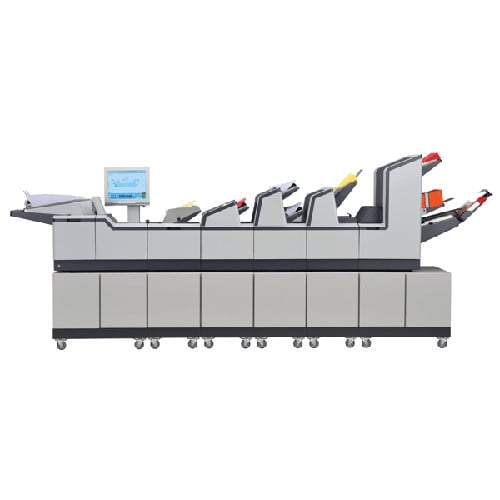

The Formax 7102XT Standard 1F High Volume Modular Inserter take flexibility and productivity to new heights, with design provides up to 17 with high-capacity feeders, and a standard capacity of up to 1,500 sheets. This is a standard feeder combinations of one 1,000-sheet feeder. The top-loading envelope hopper holds up to 800 #10 envelopes. A 15” color touchscreen interface guides operators through job programming and functions, and with unlimited programmable jobs, it’s even easier to run recurring or frequently processed applications. The Formax 7102XT Standard 1F High Volume Modular Inserter has optional Intelligent Feeders with the ability to read 1 and 2-track OMR, 1D Barcodes and 2D Data Matrix, and these codes can be located anywhere on the document, front or back. Infrared and electromechanical Double Document Detectors ensure the correct documents get into each envelope, allowing for the automatic insertion of multiple-page documents. Standard features include a high-speed/capacity Accumulator and Divert Deck, Custom Cabinets on casters for convenient moveable storage, and a High-Capacity 4-foot Output Conveyor which can be used straight-on or at a 90 degree angle to the system. It processes up to 5,500 per hour, up to 180,000 finished pieces per month. The robust folding system folds up to 8 sheets at a time. Feeders can also be linked with a Cascade Mode to maximize output by connecting feeders filled with the same document. When one feeder empties, the next automatically starts feeding. Optional Insert Feeders are top loading making it easy to reload on-the-fly, and provide the ability to insert a variety of media, including glossy booklets.
Product Details
- Modular Design: Flexibility to add feed stations, up to 9 (7102 Series) up to 17 (7102XT Series)
- Intuitive User Interface: 15" color touchscreen
- Quick and Easy Setup: Automatic job setup
- Programmable Jobs: Unlimited
- Versatile: Inserts sets up to 6mm thick
- Fast: Processes up to 4,500 envelopes per hour (7102 Series), up to 5,500 per hour (7102XT Series)
- Powerful Folding Capacity: Folds up to 8 sheets at a time
- Fold Types: C, Half, Z, Double Parallel and no fold
- Document Feeder Capacity: Standard up to 500 sheets each, high capacity up to 1,000 sheets each
- Envelope Feeder Capacity: Up to 400 envelopes (7102 Series), up to 800 envelopes (7102XT Series)
- Double Document Detection: Infrared and electromechanical
- Accumulation/Divert Deck: High-speed/capacity accumulator, divert tray
- Interactive Display: Predictive Intelligence shows time remaining until job completion
- Automatic Document Measurement: Measures inserts for easier job setup and operation
- Continuous Operation: Versatile Feeders are bottom-feeding for reloading on-the-fly
- Data Logging Capability: Software provides a full production report for mailing integrity
- Glossy Paper Capability: Tower Folder and Feeder Folder can feed glossy paper
- Sealing Liquid Reservoir: 1 liter (7102) / 10 liter (7102XT) sealing up to 10,000/100,000 envelopes
- Custom Cabinets: Ergonomically designed on casters for convenient moveable storage
- High-Capacity Output Conveyor: Holds up to 500 filled envelopes, can be used straight-on or at 90°
- Reads All Code Types: Single-Track OMR, Dual-Track OMR, 1D Barcode, 2D Data Matrix Barcode
- Code Reading Locations: Feeder modules can read code on both sides of document
- Feeder Linking: Process up to 1,500 continuous sheets
- Daily Mail Mode: Feed stapled or unstapled sets simply by opening the accumulator
- Options: Various Modules are Insert Feeders, Intelligent Feeders, Feeder Folders, BRE Feeder and Output Options are Envelope Catch Tray, Envelope Output Sorter
Specifications
- Speed - 1 sheet letter fold: Up to 5,500/hour
- Speed for 2 sheets collated: Up to 4,700/hour
- Modules + Base Tower: Up to 8
- Feeders: Up to 17
- Document Feeder Capacity:Standard 1F: One 1,000-sheet feeder
- Envelope Feeder Capacity: Up to 800
- Duty Cycle: Up to 180,000/month
- Sealing Liquid Capacity: Up to 10 liters
- Output Conveyor Capacity (optional): Up to 500 filled envelopes
- Document Size: 5.5" W x 5.5" L to 9" W x 16" L
- Envelope Size: 3.5" W x 6" L to 6.48" W x 10.37" L
- Insert thickness: Up to 5/32" (4mm)
- Set Thickness: Up to 1/4" (6mm)
- Dimensions & Weight: Tower Feeder w/Inserter Base: 107" L x 36" H x 25" D, 743 lbs.
- Voltage: 110 VAC (60 Hz)
- Safety Certifications: UL, CE, FCC certified
- Warranty:
- 90 day limited warranty on parts.
- Excluding wearables and labor.
- Part Number: FD 7102XT-S1F
